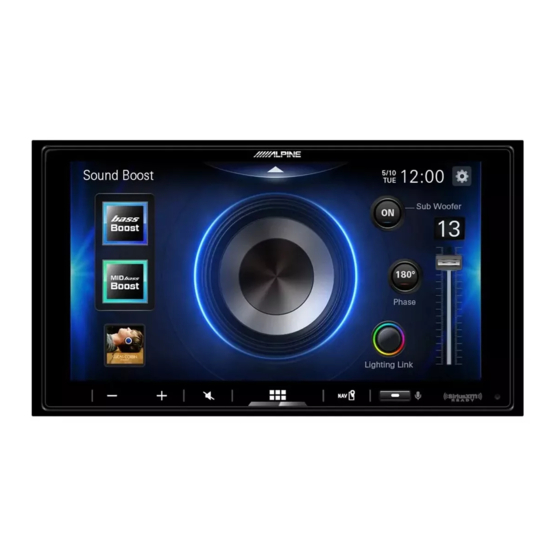

- Page 1 7-INCH AUDIO/VIDEO RECEIVER iLX-W670A OWNER’S MANUAL Please read before using this equipment. Designed by ALPINE Japan...
-
Page 2: Table Of Contents
Contents USB Flash drive (Optional) Playback ..............15 Fast-forwarding/Fast-reversing Operating Instructions (USB Audio/Video) ..........15 Repeat Play (USB Audio/Video) ......15 Shuffle Play (USB Audio/Video) ......15 PRECAUTIONS Searching for a Desired Song/Video/Photo ..15 Slide Show (USB Photo) .........15 IMPORTANT INFORMATION ......5 About USB List ............15 WARNING iPod mode on iPhone (Optional) Playback ..............16... - Page 3 AUX Operation (Optional) About Time Correction ..........34 Example 1. Listening Position: AUX Operation ............22 Front Left Seat ..........34 Camera Operation (Optional) Example 2. Listening Position: All Seats ..34 Camera Operation ..........23 Volume Setup Displaying the Camera Image Volume Setup ............35 from the Menu screen ........23 Displaying the rear view video Bluetooth Setup...
- Page 4 Installation and Connections WARNING ............44 CAUTION ............44 Precautions ............ 44 Accessory List ............45 Installation ...............45 Caution concerning the installation location ..............45 Mounting the Microphone .........45 Installation example using the Original Mounting Bracket ..........45 Connections .............46 If an ACC power supply is not available ...48 System Example ............49 LIMITED WARRANTY...
-
Page 5: Operating Instructions
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE They contain instructions on how to use this product in a safe and effective manner. Alpine cannot be responsible for problems NOISES WHILE DRIVING. resulting from failure to observe the instructions in this manual. -
Page 6: Caution
Failure to do so may cause personal injury or damage to the Doing so may cause heat to build up inside and may result in fire. product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing. -
Page 7: Notice
NOTICE CAUTION Alpine accepts no responsibility for lost data, etc., even if data, etc., is Product Cleaning lost while using this product. Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything On Handling USB Flash drive else has the chance of dissolving the paint or damaging the plastic. - Page 8 Android 6.0 or higher, and the Android Auto app. • The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under license.
-
Page 9: Getting Started
Getting Started Turning Power On or Off Some of this unit’s functions cannot be performed while the vehicle is in motion. Be sure to stop your vehicle in a safe location and apply the Location of Controls parking brake, before attempting these operations. Turn the ignition key to the ACC or ON position. -
Page 10: Touch Screen Operation
Radio Displays the Radio main screen (page 12). Touch Screen Operation Apple CarPlay You can use Apple CarPlay (page 13). You can operate the system by using the touch panel on the screen. Android Auto You can use Android Auto (page 13). •... -
Page 11: About The Indicator Display
About the Indicator Display The Indicator Bar at the top of the screen displays various types of information, like the current time. A Sound Boost. You can turn theSound Boost (page 24). B Lights up when connected to a Bluetooth compatible device. -
Page 12: Radio
Radio Radio Basic Operation Radio main screen example Listening to the Radio Touch the (HOME) button and select radio mode. The display shows the radio mode screen. Select the desired band from [FM1] / [FM2] / [FM3] / [AM1]/[AM2]. Touch [ ], [ ], [ ] to adjust the radio... -
Page 13: Apple Carplay (Optional)
Apple CarPlay Android Auto (Optional) (Optional) Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with your iPhone while What is Android Auto driving and puts them right on the unit. You can get directions, make calls, send and receive messages, and listen to music, all in a way that Android Auto is designed to make it easier to use apps from your phone allows you to stay focused on the road. -
Page 14: Usb Flash Drive (Optional)
USB Photo mode screen USB Flash drive (Optional) You can play back music files (WAVE.WMA.AAC.MP3.OGG.FLAC. APE), video files (AVI,MPEG 1/2,MPEG4,WMV,Flash,QuickTime,ASF, Matroska Video,TS Stream,3GP) and photo files (JPG,JPEG,PNG,BMP) stored in a USB flash drive on the internal player of this system. WARNING It is dangerous for the driver to watch video while driving the vehicle. -
Page 15: Playback
Playback Shuffle Play (USB Audio/Video) Touch the (HOME) button and select USB mode. Touch [ The display shows the USB mode screen. • The [ ] button displays the currently selected mode. Touch [ ] (Search). Shuffle mode is only valid in [ Select the desired mode. -
Page 16: Ipod Mode On Iphone (Optional)
iPod mode on iPhone Playback (Optional) Touch the (HOME) button and select iPod mode. The display shows the iPod mode screen. Touch [ ] or [ ] or to select the desired track (file). Before using this function, plug in your iPhone using a Lightning-USB cable (supplied with iPhone) to the unit, Returning to the beginning of the previous track (file): •... -
Page 17: Searching For A Music File
Searching for a Music File Shuffle Play <Music Search Menu> Touch [ Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4 • The [ ] button displays the currently selected mode. Radio — — — Shuffle mode is only valid in[ Playlists Songs —... -
Page 18: Bluetooth® Operation
About Bluetooth and then connect that Bluetooth compatible device to this unit. The device name of this unit is “iLX-W670A” and the initial number of the Bluetooth is a wireless technology allowing communication between a passcode is “0000. ” Also refer to the Owner’s Manual of the connected mobile device or personal computer over short distances. -
Page 19: Answering A Call
Answering a Call Calling Making a phone call using the Phone Menu An incoming call triggers the ringtone and an incoming call display. Entering a Phone Number to Make a Call Phone Incoming screen example Touch [Keypad]. The number input screen (Keypad) appears. Touch [ ] (Call). -
Page 20: Siri
Touch the phone number. The Phone Operation screen is displayed. Touch the number you want to call. The phone call is started Siri Establish iPhone Bluetooth connection and wake up Siri from phone , below interface will pop up and the voice output is from the unit. -
Page 21: Phone Operation Screen
Synchronizing the Phone Book Phone Operation Screen Touch [ Synchronization of the phone books starts. • You can store up to 1,000 registered name in the phone book. • You can store up to 5 phone numbers by one person’s name. Bluetooth®... -
Page 22: Playback
AUX Operation Playback (Optional) Touch the (HOME) button and select Bluetooth Audio mode. The display shows the Bluetooth Audio mode screen. Touch [ ] or [ ] to select the desired track (file). AUX Operation Returns the beginning of the previous file: Touch [ •... -
Page 23: Camera Operation (Optional)
Camera Operation About the Rear Camera Guide (Optional) Indication mark meaning When the car is put into reverse gear, the monitor switches to the rear view camera image. Guides appear to help visualize the car’s width and distance from the rear bumper. Camera screen example Car width extension marks (red, yellow and green in order of Setting item:... -
Page 24: Sound Boost And Lighting Link (Optional)
Lighting Link Setting Operation Other Color When operating the Lighting color of the system model with Lightinglink, it is necessary to connect a model that supports Lightinglink. Check the Alpine website for compatible models. Touch [ Touch [ ]Display Sound Boost screen... -
Page 25: Lighting Link Settings Colors
Lighting Link settings Colors • Lighting Link has 8 modes. Other Premium Direct color select Lighting Link Dynamic colors LED OFF Setting Colors Mode Blue Green Amber White 7 colors Lighting Link & Sound boost Blue Green Amber White Rainbow1 Rainbow2 background, Sub.W Ring Color... -
Page 26: Setup
Setup Setup Operation To display the Setup Menu screen: Your vehicle must be parked with the ignition key in the ACC or ON position. To do this, follow the procedures below. Touch the required setting list, then touch the setting 1 Bring your vehicle to a complete stop at a safe location. -
Page 27: Language Setup
Language Setup Product Information [Language] is selected on the System Setup Menu screen. The Setup menu, feedback information, etc. for this unit can be changed to appear in the selected language. Setting item: Language Setting contents: English (UK) • The currently selected language is displayed. Time Adjust Setup Setting item: Display and updating the firmware version... -
Page 28: Software License
Software License Steering Wheel Control [Software License] Displaying the open source software license. Setting item: Steering Wheel Control key learning Connection Status Setting contents: Vol. Up/ Vol. Dn, ON HOOK, OFF HOOK, Seek Up, Seek Dn, MUTE, Play/pause, Voice Recognition, Source (Mode) Please press and hold key for 2s at the same time don't press SWC key within 2s Follow the on-screen prompts to complete the operation... -
Page 29: Screen/Lighting Setup
Screen/Lighting Setup Screen Color Setting item: Setting item: Background Picture Screen/Lighting Setting contents: Setting contents: You can set blue, red, amber, green, white five colors or other background Dimmer,ScreenBrightness(Day),ScreenBrightness(Night), Screen Color, Key pictures, you can also select the background picture to be set from the USB Color flash drive Setting item:... -
Page 30: Sound Setup
Adjusting the Bass/Middle/Treble Sound Setup [Sound] is selected on the Setup menu screen. You can set up items related to the sound quality. <Setting item> Fader/Balance (page 30) Bass/Treble (page 30) EQ Setting (page 30) Preset EQ (page 31) X-Over (page 32) Touch [ ] or [ ] for each item to be adjusted. -
Page 31: Setting An Equalizer
Adjustable frequency bands: Setting an Equalizer Band1: 50 Hz Band2: 80 Hz 6 typical equalizer settings are preset at the factory for a variety Band3: 125 Hz of musical source material. You can also preset an equalizer by Band4: 200 Hz customizing. -
Page 32: Setting The Subwoofer
Setting the Subwoofer Adjusting the Crossover Settings (X-Over) Before performing the following procedures, see “About the Crossover” (page 33). Turning Subwoofer ON/OFF If an optional subwoofer is connected to the unit, make the following Selecting the Front HPF setting. Setting item: Setting item: Front HPF Sub Woofer... -
Page 33: Setting The Speaker Level
Adjusting to a frequency range outside that recommended may cause damage to the speakers. For the recommended crossover frequencies of Alpine speakers, refer to the respective Owner’s Manual. We are not responsible for damage or malfunction of speakers caused... -
Page 34: About Time Correction
Example 2. Listening Position: All Seats About Time Correction Adjust the time correction level of each speaker to almost the same The distance between the listener and the speakers in a car vary widely level. due to the complex speaker placement. This difference in the distances from the speakers to the listener creates a shift in the sounds image and Sit in the listening position (driver’s seat, etc.) and frequency characteristics. -
Page 35: Volume Setup
Pairing the Bluetooth Device Volume Setup Touch [ ] to enter[Search] to search for Devices. Volume Setup Select a device and follow the on-screen prompts to connect devices [Volume] is selected on the Setup menu screen. Screen prompts 6 character Numeric passkey to pair When the device registration is complete, a message appears and the device returns to [Device Lis]. -
Page 36: Displaying Bluetooth Information
Displaying Bluetooth Information Rear Camera Setup [Info] is selected on the Bluetooth Setup Menu screen. [Camera] is selected on the Setup Menu screen. You can display the Bluetooth device name and device address of this You can set up items related to the Rear Camera. unit. -
Page 37: Video Setup
Lighting Link ON/OFF Video Setup [Lighting link] is selected on the Setup menu screen. Adjusting Brightness Setting item: Lighting Link Setting item: Brightness Setting contents Setting contents: Lighting link icon displayed on sound boost screen -10 to 10 (Initial setting: 0) Off: •... - Page 38 <Situation of the car> Distance guidance mark Actual distances The distance guides represent the ground level distance from the rear bumper. It is difficult to accurately estimate the distance to objects above ground level. In the following example, the distance to A is 0.5 m and the distance to B is 1 m.
-
Page 39: Information
WMA (USB Flash drive) Information Coding: WMA STD,WMA Prof Bit rates: up to 320kbps Sampling rates: 8Khz,11.025Khz,16Khz,22.05Khz, 32Khz44.1Khz,48Khz About the Supported Formats * wma v1, wma lossless, and wma voice are not supported AAC (USB Flash drive) About MP3/WMA/AAC/FLAC/WAV Coding: AAC-LC/HE-AAC Bit rates: 288 kbps 48K per channel Sampling rates: 8Khz,11.025Khz,12Khz,16Khz,22.05Khz, 24Khz,32Khz,44.1Khz,48Khz,64Khz, 88.2Khz,96Khz... -
Page 40: About Photo Format
Format: QuickTime Maximum folders numbers of device: File Name:.mov .qt USB Flash drive(Auido/Video/Photo):1000 Video Coding: MPEG-4 SP/ASP, H.264, MJPEG (resolution <=1280*720) IPod:No folder ,up to 100 playlists Audio Coding: MP3, AAC-LC / HE-AAC, LPCM Android MSC: Same as USB Format: Matroska Video •... -
Page 41: In Case Of Difficulty
• If the area you are in is a primary signal area, the antenna may properly connected, or then consult your authorized not be grounded and connected properly. Alpine dealer. - Check your antenna connections; make sure the antenna is properly grounded at its mounting location. -
Page 42: If This Message Appears
Bluetooth If this Message Appears No Bluetooth device were found • The Bluetooth audio device was not connected correctly. Various messages are displayed on the screen during operation. In - Check the settings for the unit and the Bluetooth audio device addition to the messages telling you the current status or providing and reconnect guidance for the next operation, there are also the following error... -
Page 43: Specifications
Bluetooth SECTION Specifications Bluetooth Specification Bluetooth V5.0 Output Power < +4dBm Ave. (Power class 2) MONITOR SECTION Profile HFP (Hands-Free Profile) PBAP (Phone Book Access Profile) Screen Size 6.75” A2DP (Advanced Audio LCD Type Normally white, Transmissive Distribution Profile) Operation System a-Si TFT active matrix AVRCP (Audio/Video Remote Number of Picture Elements 1,152,000 pcs. -
Page 44: Installation And Connections
When in doubt, consult your Alpine dealer. electrical wiring. Failure to take such precautions may result in fire. -
Page 45: Accessory List
Accessory List Main unit ......................1 Microphone Power cable......................1 RCA cable ......................1 GPS antenna ....................1set Cable clamp (sold separately) Microphone ....................... 1 USB extension cable ..................1 Screw ........................4 Countersunk screw ..................4 Quick Reference Guidance ................1 Card note1 ...................... -
Page 46: Connections
Connections... - Page 47 A Radio Antenna Receptacle Y Rear Output RCA Connectors Can be used as Rear Output RCA Connectors. RED is right and B GPS Antenna Receptacle WHITE is left. C Power Antenna Lead (Blue) Z Front Output RCA Connectors Connect this lead to the +B terminal of your power antenna, if Can be used as Front Output RCA Connectors.
-
Page 48: If An Acc Power Supply Is Not Available
• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis. • If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information. -
Page 49: System Example
System Example Connection of an iPhone When connecting to an iPhone with a Lightning connector USB connector iPhone with a Lightning connector (sold separately) USB extension cable (included) Lightning to USB Cable KCU-471i (sold separately) • Do not leave an iPhone in a vehicle for a long time. Heat and humidity may damage the iPhone, and you may not be able to play it again. Connection of a USB Flash Drive USB connector USB extension cable (included) - Page 50 Connection of a camera Power Supply Connector CAMERA OUT CAMERA OUT Connector Connector Power cable Reverse Connect to the plus side of the car’s reverse lamp. (Orange/White) PRE OUT cable PRE OUT cable To Video Output terminal Camera with RCA video output (sold separately) REAR VIEW CAMERA * RCA Extension Cable (sold separately)
-
Page 51: Limited Warranty
ALPINE ELECTRONICS OF AMERICA, INC. (“Alpine”), is dedicated to quality craftsmanship and is pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below. - Page 52 Cependant, il est souhaitable qu’il devrait être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain. Don’t forget to take a moment to protect your purchase by registering your product now at the following address: www.alpine-usa.com/ registration.
- Page 53 To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. Detailed license notice, full license texts and machine readable copy of the corresponding source code are readily available on our OSS website (*) * http://www.alpine.com/e/oss/download...
