Maintenance (continued)

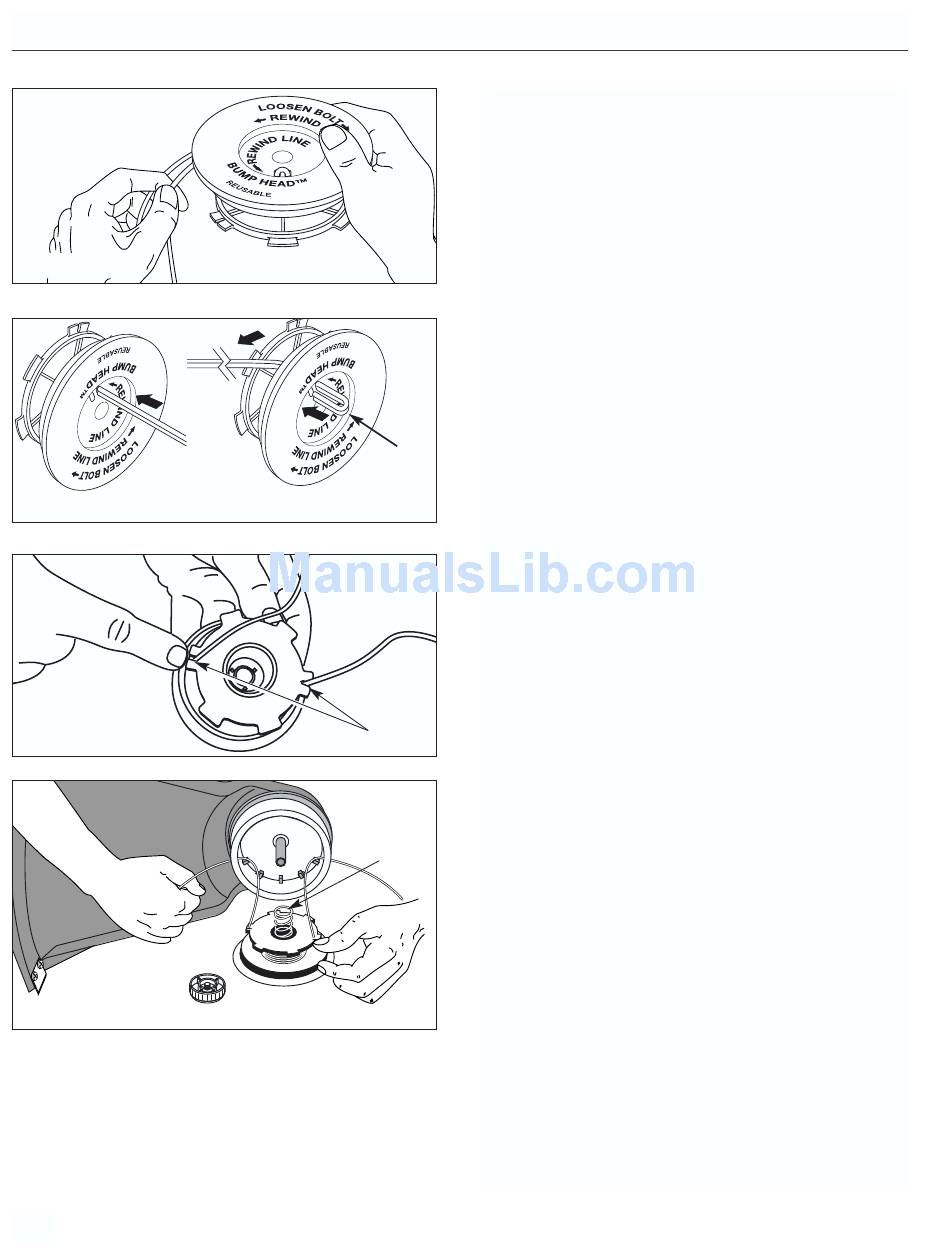

Fig. 6-5
Fig. 6-6
Fig. 6-7
Fig. 6-8
14
Membrane Line Installation
8. Take approximately 15 feet (4.6 m) of new trimming
9. Insert the end of the line into the open hole in the
10. Before winding, split the line back about 6 inches.
11. Wind the line in tight even layers in the direction
NOTE: Failure to wind the line in the direction
indicated will cause the cutting attachment to
operate incorrectly.
12. Insert the ends of the line into the two holding slots
13. Insert the ends of the line through the eyelets in the
Loop
NOTE: The spring must be assembled on the inner
reel before reassembling the cutting attachment.
14. Hold the inner reel in place and install the Bump
INSTALLING A PREWOUND REEL
1. Hold the outer spool with one hand and unscrew
Holding Slots
2. Remove the old inner reel from the outer spool
3. Remove the spring from the old inner reel
Spring
4. Place the spring in the new inner reel.
NOTE: The spring must be assembled on the inner
reel before reassembling the cutting attachment.
5. Insert the ends of the line through the eyelets in the
6. Place the new inner reel inside the outer spool.
7. Hold the inner reel in place and install the Bump
Replacement Parts:
See Accessories / Replacement Parts on page 18.
line. Insert one end of the line through one of the
two holes in the inner reel (Fig. 6-6). Pull the line
through the inner reel until only about 4 inches is
left out.
inner reel and pull the line tight to make the loop as
small as possible (Fig. 6-6).
indicated on the inner reel.
(Fig. 6-7).
outer spool and place inner reel with spring inside
the outer spool (Fig. 6-8). Push the inner reel and
outer spool together. While holding the inner reel
and outer spool, grasp the ends and pull firmly to
release the line from the holding slots in the reel.
Knob by turning counterclockwise.
Tighten securely.
the Bump Knob clockwise (Fig. 6-1). Inspect the
bolt inside the Bump Knob to make sure it moves
freely. Replace the Bump Knob if damaged.
(Fig. 6-1).
(Fig. 6-1).
outer spool (Fig. 6-8).
Push the inner reel and outer spool together. While
holding the inner reel and outer spool, grasp the
ends and pull firmly to release the line from the
holding slots in the spool.
Knob by turning counterclockwise.
Tighten securely.
