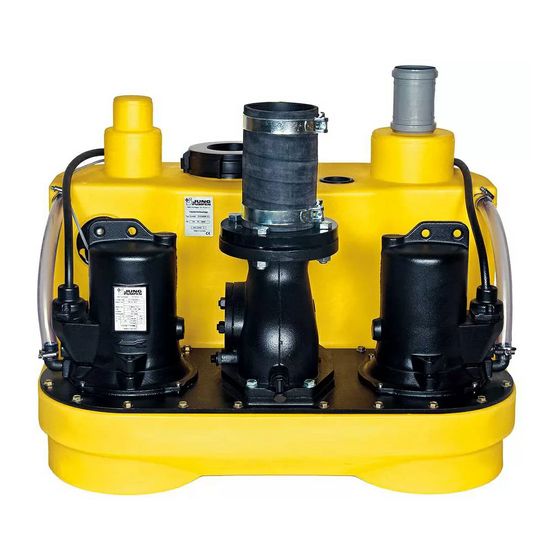

Pentair COMPLI 1010/4 BWE HL Instruction Manual
Hide thumbs
Also See for COMPLI 1010/4 BWE HL:
- Instruction manual (85 pages) ,
- Manual (81 pages) ,
- Instruction manual (40 pages)
Advertisement
Quick Links
COMPLI
1010/4 BWE HL
1010/4 BW HL
1015/4 BW HL
1210/4 BW HL
1215/4 BW HL
DE Original-
Betriebsanleitung
JUNG-PUMPEN.DE
1025/4 BW HL
1025/2 BW HL
1225/4 BW HL
1225/2 BW HL
EN Instruction Manual
FR Instructions de service
NL Gebruikshandleiding
IT
Istruzioni per l'uso
PL Instrukcja eksploatacji
1035/2 BW HL
1235/2 BW HL
B 49985.15-2023.11
Advertisement
Related Manuals for Pentair COMPLI 1010/4 BWE HL
Summary of Contents for Pentair COMPLI 1010/4 BWE HL
- Page 1 COMPLI 1010/4 BWE HL 1010/4 BW HL 1015/4 BW HL 1025/4 BW HL 1025/2 BW HL 1035/2 BW HL 1210/4 BW HL 1215/4 BW HL 1225/4 BW HL 1225/2 BW HL 1235/2 BW HL DE Original- EN Instruction Manual Betriebsanleitung FR Instructions de service NL Gebruikshandleiding Istruzioni per l‘uso...
- Page 2 ENGLISH You have purchased a product made by Pentair Jung Pum- SAFETY INSTRUCTIONS pen and with it, therefore, also excellent quality and service. Secure this service by carrying out the installation works This instruction manual contains essential information that in accordance with the instructions, so that our product must be observed during installation, operation and servic- ing.
- Page 3 ENGLISH Unauthorised operating methods • Safety in wastewater systems (e.g., GUV-V C5, GUV-R 104 and GUV-R 126 in Germany) The operational safety of the supplied equipment is only guar- • Electrical systems and operating resources (e.g., GUV-V A3 anteed if the equipment is used for its intended purpose. The in Germany) limiting values given in the "Technical Data"...
- Page 4 ENGLISH Installing the tank Installing the control unit Close the sluice valve in the inlet (accessory) to prevent any NOTICE! Only qualified electricians may carry out electrical leakage of water during the installation work. works to the pump or the controls. Units must be slid onto the inlet pipe, together with the clamp NOTICE! Never put the mains plug or open cable end in water! flange, as far as possible and then aligned.
- Page 5 ENGLISH Switching levels OPERATION The switch-on and switch-off points are set ex works for the standard inlet height of the respective system. In exceptional cases, however, they can be changed under the menu item "Level control". Alarm relays Display As alarm outputs, a potential-loaded alarm relay (protected by internal control fuse F2) and a potential-free changeover con- LED pump 1 and pump 2 tact are available.
- Page 6 ENGLISH INFORMATION WARNING! For repair and maintenance work on pumps or control units, do not use the "Off" function, but always de-energize the system by unscrewing the back-up fuses or via a main switch and se- cure against being switched on again! NOTICE! If unusually large quantities of wastewater flow into the unit (e.g.
-
Page 7: P1 [Kw]
ENGLISH • AUX logic Level Control Shows whether the auxiliary input works as an NC contact or an NO contact The different types can be selected here. The switching levels for the various lifting stations are already pre-set. In excep- •... -
Page 8: F [Hz]
ENGLISH Acoustic alarm deactivated when supplied with AC power. If this function is deactivated, only the integrated alarm buzzer Buzzer reactivation is switched off. After a buzzer acknowledgement, the alarm is automatically Options: Off/on. reactivated if the fault persists for another 4 / 8 / 12 hours. Fac- If a fault is acknowledged, the buzzer stops and the non-isolat- tory default setting: 4 hours. - Page 9 ENGLISH Sensor calibration Update For readjustment, fill the container (fill level of the respective Only for calling the manufacturer' s Customer Service. type see appendix) and then select this menu item "Sensor calibration". Balanced working hours Calibration is performed automatically when 20s have elapsed or the OK button is pressed.
- Page 10 ENGLISH • However, if the oil is contaminated with both water and pol- MAINTENANCE lutants, then not only the oil must be replaced, but the me- chanical seal as well. Maintenance and inspection of this product must be carried For monitoring the oil reservoir, it is also possible to retrofit the out in accordance with EN 12056-4.
- Page 11 ENGLISH QUICK TIPS FOR REMEDYING FAULTS WARNING! Before carrying out any work: Disconnect the pump(s) and the control unit from the mains by unscrewing and taking out the pre-fuses, and take action to ensure that no one else can re- connect them to the power supply.
- Page 12 ENGLISH TECHNICAL DATA Weight depending on type 4-6 kg Protection category IP 44 1/N/PE x 230 V, 50 Hz Operating voltage 3/N/PE x 400 V, 50 Hz Power consumption of control unit approx. 8 W Control fuse F1 fine-wire fuse 5x20 mm, 6.3 A T/MT; EN 60127-2-5, DIN 41571-2 Fuse alternating current output F2 fine-wire fuse 5x20 mm, 2.0 A T/MT;...
- Page 13 ENGLISH Parameter Factory default setting Client setting Level detection Level detection Compli base load ON depending on analogue level detection Base load OFF depending on analogue level detection peak load ON depending on analogue level detection Peak load OFF depending on analogue level detection High water depending on analogue level detection Upper edge of pump...
- Page 14 SMS response time 5 minutes Routine messages 10 days at 8:00 Additional call for SMS Station ID SGJU4 Station name PENTAIR-HighLogo Error transmission △ Start error ▽ Error end E-mail address 1 E-mail address 2 E-mail address 3 E-mail settings SMTP server smtp.gmail.com...
- Page 15 UKCA-Declaration of Conformity Legislation - Designated Standards • Supply of Machinery (Safety) Regulations 2008 (MD) EN 809:1998/AC:2010, EN ISO 12100:2010, EN 60335-1:2012/A13:2017 • The Restriction of the Use of Certain Hazardous Substance in Electrical and Electronic Equipment Regulations 2012 (RoHS) •...
-
Page 16: Table Of Contents
Technische Daten - Technical data - Caractéristiques techniques - Technische Ge- gevens - Dati tecnici - Dane techniczne ... 1010/4 BWE ... 1010/4 BW ... 1015/4 BW ... 1025/4 BW ... 1025/2 BW ... 1035/2 BW ... 1210/4 BW ... 1215/4 BW ... - Page 17 Compli 1000 Compli 1200...
- Page 18 Compli Sensor...
- Page 19 HighLogo 2-610 ECP -- 1 --...
- Page 20 HighLogo 2-610 ECP -- 2 --...
- Page 21 HighLogo 2-00 P - 2-610 P -- 1 --...
- Page 22 HighLogo 2-00 P - 2-610 P -- 2 -- Pump Technology Ltd | Phone:0118 9821 555 | Email:support@pumptechnology.co.uk | Web: www.jung-pumps.co.uk...
