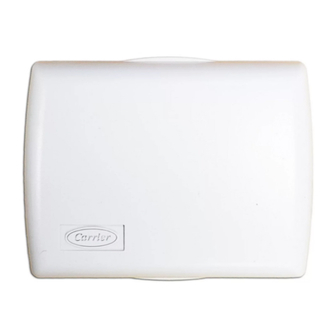

Carrier SYSTXNNRCT01 Installation Instructions
Carrier SYSTXNNRCT01 Installation Instructions

Carrier SYSTXNNRCT01 Installation Instructions

Remote access module

Advertisement

Quick Links

SYSTXNNRCT01
Remote Access Module
NOTE: Read the entire instruction manual before starting the
installation.
pointSETt U.S. Pat No. 7,415,102
Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installation Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Considerations
Improper installation, adjustment, alteration, service, maintenance, or
use can cause explosion, fire, electrical shock, or other conditions which
may cause death, personal injury or property damage. Consult a
qualified installer, service agency or your distributor or branch for
information or assistance. The qualified installer or agency must use
factory--authorized kits or accessories when modifying this product.
Refer to the individual instructions packaged with the kits or accessories
when installing.
Follow all safety codes. Wear safety glasses, protective clothing, and
work gloves. Have a fire extinguisher available. Read these instructions
thoroughly and follow all warnings and cautions included in literature
and attached to the unit. Consult local building codes and the current
edition of the National Electrical Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical Code
CSA C22.1.
Recognize safety information. When you see this symbol
and in instructions or manuals, be alert to the potential for personal
injury. Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety-alert symbol.
DANGER identifies the most serious hazards, which will result in severe
personal injury or death. WARNING signifies hazards, which could
result in personal injury or death. CAUTION is used to identify unsafe
practices, which may result in minor personal injury or product and
property damage. NOTE is used to highlight suggestions which will
result in enhanced installation, reliability, or operation.
Installation Considerations
The Remote Access Module, part number SYSTXNNRCT01, is
powered with a field-supplied 24VAC transformer. A 120VAC supply
must be near the mounting location when using the accessory plug-in
24VAC transformer. Provisions must be made to secure the accessory
plug-in transformer to the outlet. The D-wire (24VAC) from the
communicating system must NOT be used to power the Remote Access
Module, and should not be connected to the module.
This instruction covers the physical installation and start up. Use this
instruction to guide the actual installation process after the
communicating system(s) have been installed. One Remote Access
Module is capable of handling two communicating systems.
Installation Instructions
on the unit
Introduction
The Remote Access Module provides an interface to Home Automation
systems, utilizing the RS-232 serial port connection. This version is
compatible with older communicating controls but does not supply a
Wi-Fi connection like previous models.
NOTE: See the latest version of the SAM Remote Access Interface
Specification, available on HVACpartners, for more details on the home
automation interface.
Installation
BEFORE STARTING:
• SYSTXCCITC01,
SYSTXCCITW01,
SYSTXBBECW01 Series A or higher) wall control is required.
Check Equipment and Job Site
INSPECT EQUIPMENT - File claim with shipping company, prior to
installation, if shipment is damaged or incomplete.
Component Location and Wiring Considerations
WARNING
!
ELECTRICAL OPERATION HAZARD
Failure to follow this warning could result in personal injury or death.
Before installing, modifying, or servicing system, the main electrical
disconnect switch must be in the OFF position and install a lockout tag.
There may be more than one power disconnect switch. Lock out and tag
switch with a suitable warning label.
NOTE: All wiring must comply with national, state, and local codes.
LOCATING THE UNIT - The Remote Access Module is approved for
indoor use only and should never be installed with any of its components
exposed to outdoor environmental conditions. The Remote Access
Module may be installed in any area where the temperature remains
between -4°F / -20°C and 158°F / 70°C, and there is no condensation.
The cover must be installed to prevent damage from other sources. Do
not locate where it will be accessible to children. It should be mounted in
the vertical position.
!
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment damage.
Do not mount unit on plenum, ductwork, or flush against furnace.
WIRING CONSIDERATIONS - Ordinary thermostat wire is ideal when
wiring the Remote Access Module into the HVAC system (shielded
cable is not necessary). Use 22-gauge or larger for normal wiring.
Lengths over 100 ft / 30 m should use 20-gauge or larger wire.
Install Components
INSTALL REMOTE ACCESS MODULE
The Remote Access Module is designed so that wires can enter it from
behind, above, or below. Plan wire routing before mounting.
SYSTXBBECC01,
CAUTION
or
