2
5 x 20 mm long screws
A
Minimum space between the leg flanges and
the metal frame.
X

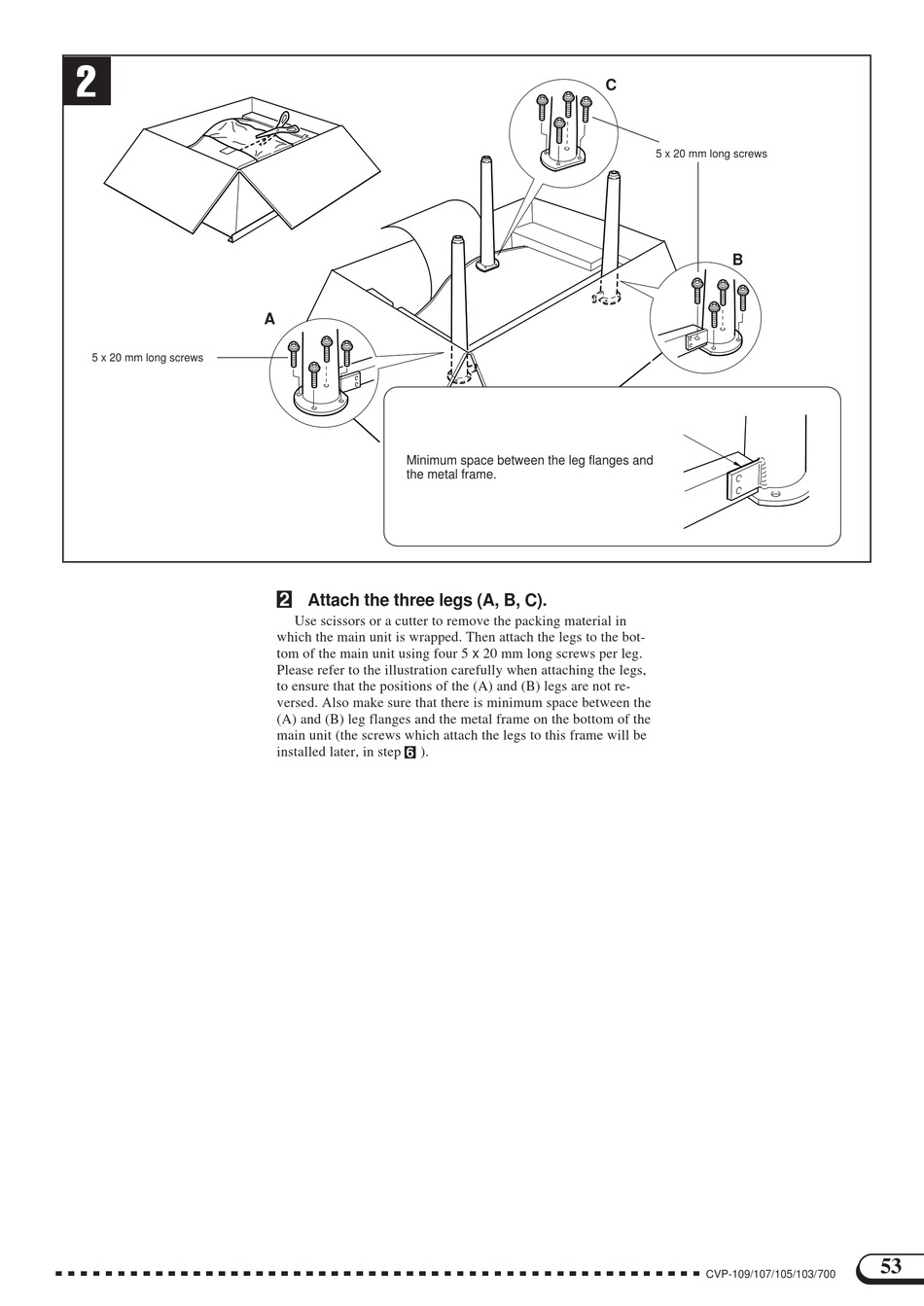

Attach the three legs (A, B, C).

Use scissors or a cutter to remove the packing material in
which the main unit is wrapped. Then attach the legs to the bot-
tom of the main unit using four 5 x 20 mm long screws per leg.
Please refer to the illustration carefully when attaching the legs,
to ensure that the positions of the (A) and (B) legs are not re-
versed. Also make sure that there is minimum space between the
(A) and (B) leg flanges and the metal frame on the bottom of the
main unit (the screws which attach the legs to this frame will be
installed later, in step N ).
C
5 x 20 mm long screws
B
CVP-109/107/105/103/700
53
