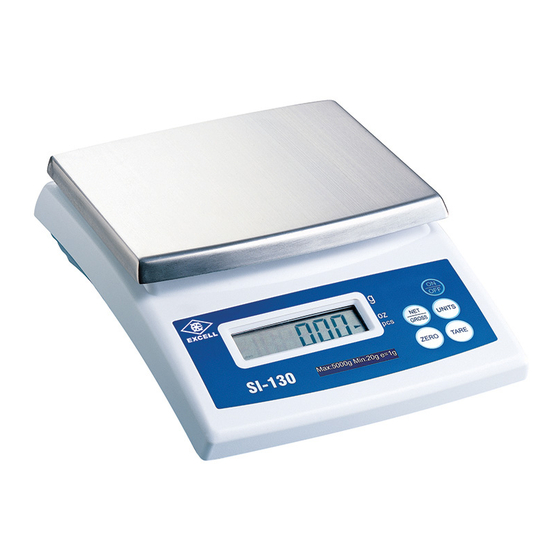

Excell SI-130 Service Manual

Weighing scale
Hide thumbs Also See for SI-130:
Table of Contents

Advertisement

Quick Links

Download this manual
Service Manual
Weighing Scale
SI-130
© Excell Precision Limited 2016. All rights reserved Worldwide.
The information contained herein is the property of Excell Precision Limited and is
supplied without liability for errors or omissions. No part may be reproduced or used
except as authorized by contract or other written permission. The copyright and the
foregoing restriction on reproduction and use extend to all media in which the
information may be embodied.

Advertisement

Table of Contents
loading

Related Manuals for Excell SI-130

Summary of Contents for Excell SI-130

  • Page 1 SI-130 © Excell Precision Limited 2016. All rights reserved Worldwide. The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.

  • Page 2: Table Of Contents

    EXCELL PRECISION CO., LTD. Table of Content Instruction for Use ..........................2 Preparing To Use the Scale ......................2 Quick Setup Calibration........................3 Chapter 1 Introduction ........................4 1-1 Features and Specifications....................4 1-2 Display and Keypad ....................... 5 1-3 Self-Test Mode ........................6 1-4 Error Messages ........................

  • Page 3: Instruction For Use

    EXCELL PRECISION CO., LTD. Thank you for purchasing EXCELL weighing scale. In order to use the scale properly, please read this instruction carefully before use. If you have a problem concerning the scale, please contact your supplier. Instruction for Use 1.

  • Page 4: Quick Setup Calibration

    EXCELL PRECISION CO., LTD. Quick Setup Calibration This page is to quickly initiate the scale, for the other functions configuration, you can refer the chapters below. Instructions: Step 1  Power off the scale, find the switch SWA1 on the bottom of machine.

  • Page 5: Chapter 1 Introduction

    EXCELL PRECISION CO., LTD. Chapter 1 Introduction 1-1 Features and Specifications Features: Multi-function operation  Fast weighing operation; Full range tare; Net/Gross weight display; Simple counting (Pcs); Auto power-off; Weight hold feature Multi-weighing units  Gram (g) , ounce (oz),etc.

  • Page 6: Display And Keypad

    EXCELL PRECISION CO., LTD. 1-2 Display and Keypad Indication  1 “Tare” indication  2 “Zero” indication 3 Gram (g),1 unit indication 4 Ounce (oz), 2 unit indication  5 None  6 Piece unit (pcs), 4 unit indication “Low battery” indication...

  • Page 7: Self-Test Mode

    EXCELL PRECISION CO., LTD. NET|GROSSf : Press this key to switch between the “Net value” and the “Gross value” In tare mode, the tare indication “” shows on the left side of the display. Press this key to show the gross value, and the tare indication “” goes off. Press...

  • Page 8: Error Messages

    EXCELL PRECISION CO., LTD. INTERNAL VALUE MODE (must hook up Load Cell to test)  Press to enter, and the display shows internal value TARE  Please check whether the internal value has changed obviously with weight changing.  Please check the backlight.

  • Page 9: Chapter 2 Advanced Function Setting

    EXCELL PRECISION CO., LTD. Chapter 2 Advanced Function Setting NET |GROSS ON|ZERO In weighing mode, press keys at the same time to enter the Advanced Function setting mode. The display shows Auto power off timer setting The display shows the current setting...
  • Page 10 EXCELL PRECISION CO., LTD. Last Page Hold function setting Press TARE The display shows the current setting Hold function setting ON|ZERO UNITS ON|ZERO key to enter a parameter UNITS to enter a parameter 0  Hold function disabled 1  “Peak hold” mode 2 ...

  • Page 11: Chapter 3 Service Mode Access

    EXCELL PRECISION CO., LTD. Chapter 3 Service Mode Access Set the switch SWA1 to the ADJ position. When power is off, hold key and press TARE key. Release key and key in order. The display shows ON|ZERO ON|ZERO TARE  After completing the setting, set the switch SWA1 back to the LOCK position.

  • Page 12: Capacity Configuration

    EXCELL PRECISION CO., LTD. 3-1 Capacity Configuration Press TARE Enter the parameter “01” Press TARE Display the maximum capacity +1  division and display the weight unit set lat time for 2 seconds Refer to Note 1 e.g. 2 weight units “kg” & “lb”, With “kg”...
  • Page 13 EXCELL PRECISION CO., LTD. Note 1 The users can set up the different weight UNITS in various orders according to their preference, and the amount of the chosen weight UNITS can be up to 2. (a ) (b ) (c ) (d ) (e ) (a) ...

  • Page 14: Weight Calibration

    EXCELL PRECISION CO., LTD. 3-2 Weight Calibration Press TARE Enter the parameter “01” The display shows the calibration value (the Press TARE maximum capacity of 1 unit setting) and  weight unit. The right digit keeps flashing. Unload the weigh pan...

  • Page 15: Function Setting

    EXCELL PRECISION CO., LTD. 3-3 Function Setting Press TARE Enter a parameter “01” Returning to zero point setting Display the current setting Press TARE Returning to zero point setting ON|ZERO key to enter a parameter UNITS Default = 0 0  show all 5 ...
  • Page 16 EXCELL PRECISION CO., LTD. Stable range parameter setting Last page Display the current setting Press TARE Stable range parameter setting ON|ZERO key to enter a parameter UNITS Default = 0 0  No limitation ON|ZERO UNITS 1  Less than 1/4 division/sec to enter a parameter 2 ...

  • Page 17: Span Calibration

    EXCELL PRECISION CO., LTD. 3-4 SPAN Calibration  Set the switch SWA1 on the main board to the ADJ position. Press key to ON|ZERO enter SPAN calibration mode. The display shows  After completing the calibration, set the jumper SWA1 back to the LOCK position.

  • Page 18: Local G Value Setting

    EXCELL PRECISION CO., LTD. 3-5 Local G Value Setting Set switch SWA1 the main board to ADJ position. Press ON|ZERO key to power on the scale, and press key again before the display resets back to zero. ON|ZERO Display current G value...

  • Page 19: Appendix 1 7-Segment Display Characters

    EXCELL PRECISION CO., LTD. Appendix 1 7-Segment Display Characters Digit 7 segments letter Alphabet 7 segments letter Alphabet 7 segments letter 02025100 ZSME300000340...
