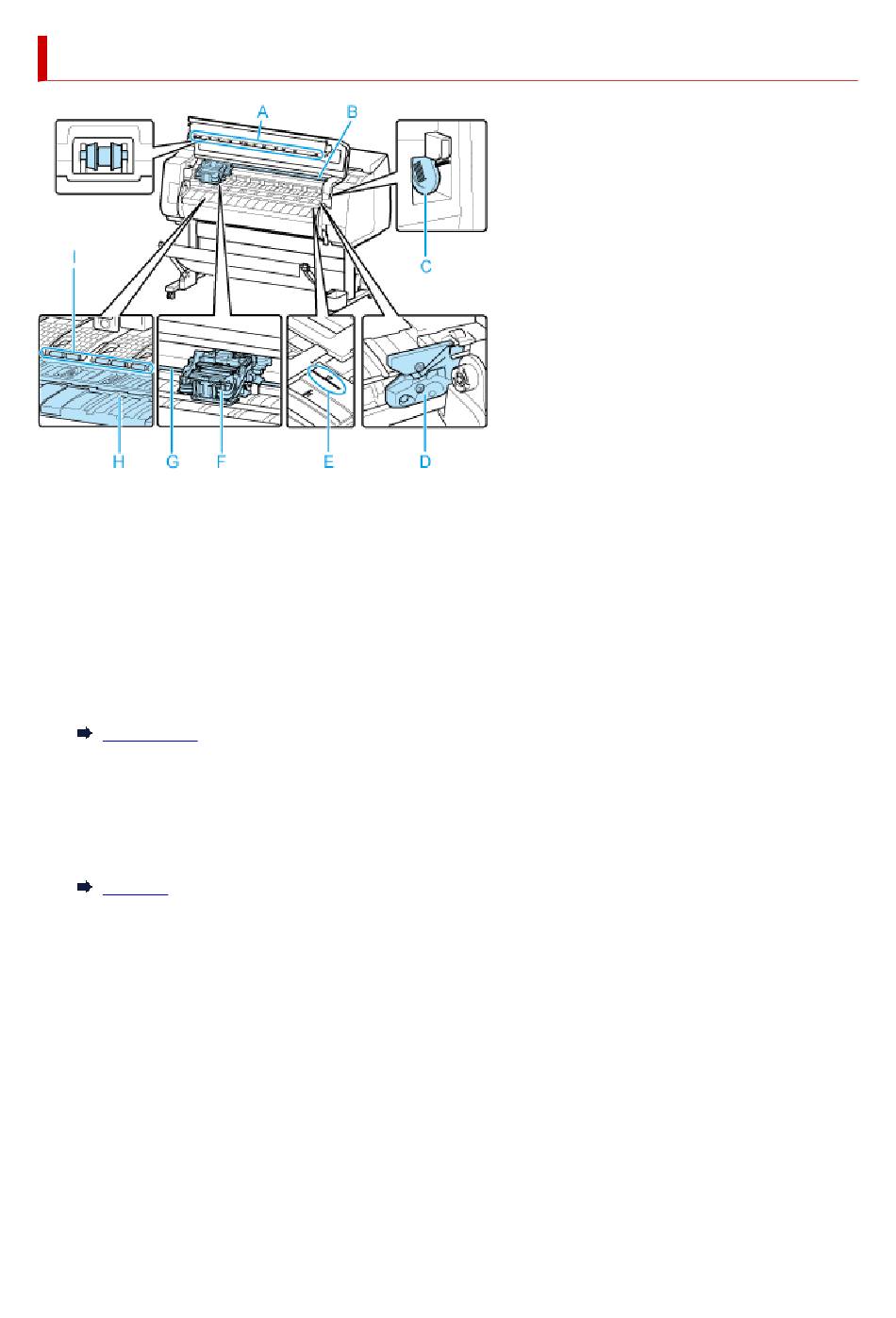

Top Cover (Inside)
A: Top Cover Roller
Prevents paper from rising when ejected.
B: Internal Light
Lights automatically when the top cover is opened or during printing.
C: Cleaning Brush
When cleaning inside the printer under the top cover, use this brush to sweep away paper dust on the
platen.
D: Cutter Blade
Cutter Blade
E: Paper Alignment Line
Align paper with this line when loading it.
F: Carriage
Moves the print head. It serves a key role in printing.
Carriage
G: Carriage Shaft
The Carriage slides along this shaft.
H: Platen
The print head moves across the platen to print. Vacuum holes on the platen hold paper in place.
I: Paper Retainer
This retainer holds paper as it is fed.
56
