Bosch Sensortec | Application Board 3.0 User Guide 5 | 24 1 About this document This document describes the operating procedures of the Application Board 3.0 and additional details about the board itself. To ensure that the Application Board 3.0 is working correctly, follow these instructions carefully before using it. -
Page 6: Safety And Environment
Bosch Sensortec | Application Board 3.0 User Guide 6 | 24 2 Safety and environment Electrostatic Discharge Caution: ESD (electrostatic discharge) sensitive device. Improper handling may damage the Application Board 3.0 resulting in total or intermittent failures. Use the Application Board 3.0 only in an ESD protected environment and follow ESD-prevention procedures. -
Page 7: Introduction And Intended Use
The Application Board 3.0 is a versatile and sensor independent development platform, enabling a fast and easy experience with Bosch Sensortec’s sensors. A wide variety of Bosch Sensortec’s sensors can be connected to the platform as Shuttle Board 3.0s. The combination of the Application Board 3.0 and Shuttle Board 3.0 can be used to evaluate the sensors and make prototypes to test use-cases. -
Page 8: Application Board 3.0

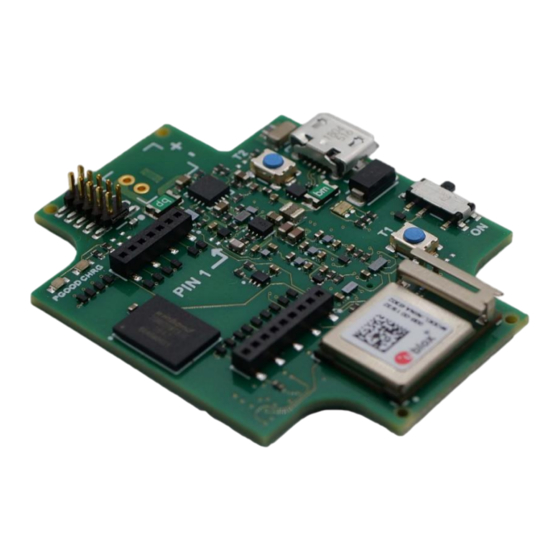

Bosch Sensortec | Application Board 3.0 User Guide 8 | 24 4 Application Board 3.0 Overview Figure 1: Application Board 3.0 Overview Dimensions Figure 2: Application Board 3.0 dimensions Modifications reserved | Data subject to change without notice Document number: BST-DHW-AN008-00 Arrow.com. -
Page 9: Device Specification
Bosch Sensortec | Application Board 3.0 User Guide 9 | 24 Device specification Attribute Nominal Values Dimensions Length 37 mm x Width 47 mm x Height 7 mm Supply voltage 5V DC USB, 3.7V Li-ion Battery Memory capacity (user data memory) -
Page 10: Module Descriptions
Bosch Sensortec | Application Board 3.0 User Guide 10 | 24 Module descriptions 4.6.1 Main switch The switch controls the connection between the power source (battery or USB) and the power regulation domains. 4.6.2 Programmable push buttons Two programmable push buttons are connected to Ground individually through a 360ohm resistor. It is expected that the internal pull-ups of the microcontroller pins connected to the buttons are enabled to use the button with a falling- edge active-low configuration. -
Page 11: Temperature Sensor
Bosch Sensortec | Application Board 3.0 User Guide 11 | 24 4.6.5 Temperature sensor A digital temperature sensor, the Texas Instruments TMP112 is used to be able to measure the temperature of the board. The sensor can be accessed with the I2C-TEMP bus. Details on how to operate the sensor can be found in the datasheet. - Page 12 Bosch Sensortec | Application Board 3.0 User Guide 12 | 24 SPI-FLASH SPI-FLASH-MISO GPIO_48 P0.21 SPI-FLASH-MOSI GPIO_50 P0.20 SPI-FLASH-SCK GPIO_52 P0.19 SPI-FLASH-CS GPIO_51 P0.17 SPI-FLASH-HOLD GPIO_47 P0.23 SPI-FLASH-WP GPIO_49 P0.22 I2C-TEMP I2C-TEMP-SDA GPIO_23 P0.29 4.7kohm pull-up I2C-TEMP-SCL GPIO_42 P0.26 4.7kohm pull-up...
-
Page 13: Shuttle Board 3.0
Bosch Sensortec | Application Board 3.0 User Guide 13 | 24 5 Shuttle Board 3.0 Dimensions The following figure describes the typical dimensions of the Shuttle Board 3.0 for standard shuttles. Figure 5: Standard Shuttle Board 3.0 dimensions The following figure describes the typical dimensions of the Shuttle Board 3.0 for multi-sensor shuttles. -
Page 14: Pin Descriptions
Bosch Sensortec | Application Board 3.0 User Guide 14 | 24 Pin descriptions Table 3 Shuttle Board 3.0 pin description Shuttle Row 1 Function Shuttle Row 2 pin Function pin index index (1) Vdd Powers the sensor. When enabled by... -
Page 15: Software Description
Bosch Sensortec | Application Board 3.0 User Guide 15 | 24 6 Software description Overview Brief description of the memory layout for the Application Board 3.0 Nordic Semiconductor’s SoftDevice S140 00000h Feature-rich Bluetooth Low Energy protocol stack 28000h 160kB reserved space... -
Page 16: Getting Started
Bosch Sensortec | Application Board 3.0 User Guide 16 | 24 7 Getting started Setup overview It is recommended to use an ESD safe environment to operate the Application Board 3.0 as depicted in the image. Figure 7: Application Board 3.0 setup Connecting a Shuttle Board 3.0 board... -
Page 17: Connecting To The Application Board 3.0 Using Usb
Bosch Sensortec | Application Board 3.0 User Guide 17 | 24 Once aligned, press down on the board with both thumbs to fit the Shuttle Board 3.0 onto the Application Board 3.0. Figure 9: Connecting the Shuttle Board 3.0 Connecting to the Application Board 3.0 using USB Before connecting the USB cable, ensure that board is switched off. -
Page 18: Powering On The Application Board 3.0
Bosch Sensortec | Application Board 3.0 User Guide 18 | 24 Powering on the Application Board 3.0 To power on the board slide the main switch into the ON position. Figure 11: Switching ON the Application Board 3.0 Removing the Shuttle Board 3.0 Tug the Shuttle Board 3.0 back and forth to remove the Application Board 3.0. -
Page 19: Maintenance
Bosch Sensortec | Application Board 3.0 User Guide 19 | 24 8 Maintenance Warning: Damage to materials can cause risk of fire! Liquid entering the device can cause short circuits and damage the device. This could cause fire, data loss and incorrect measurements. -
Page 20: Further Product Related Information
Bosch Sensortec | Application Board 3.0 User Guide 20 | 24 9 Further Product Related Information Please find all product related documents and user guides on our website: https://www.bosch-sensortec.com/ Modifications reserved | Data subject to change without notice Document number: BST-DHW-AN008-00 Arrow.com. -
Page 21: Regulatory And Legal Information About The Application Board 3.0
European Union notices European Union notices Radio Equipment Directive Hereby, Bosch Sensortec GmbH declares that the radio equipment type “Application Board 3.0” is in compliance with Directive 2014/53/EU (Radio Equipment Directive). The full text of the EU declaration of conformity is available at the Bosch Sensortec internet address. -
Page 22: Usa: Fcc Notices
FCC has issued an EQUIPMENT AUTHORIZATION to Bosch Sensortec GmbH for Application Board 3.0 according to FCC rule parts 15 C with the FCC ID: 2AO4I-APP30. Note: Changes or modifications not expressly approved by Bosch Sensortec GmbH could void the FCC certificate and therefore user's authority to operate the equipment.”... -
Page 23: Canada: Ised License Exemption
The Application Board 3.0 application board is developed for professional use only. Bosch Sensortec products are developed for the consumer goods industry. They may only be used within the parameters of this product data sheet. They are not fit for use in life-sustaining or safety-critical systems. Safety-critical systems are those for which a malfunction is expected to lead to bodily harm, death or severe property damage. -
Page 24: Document History And Modification
Bosch Sensortec | Application Board 3.0 User Guide 24 | 24 11 Document history and modification Rev. No Chapter Description of Date modification/changes Initial release October 2020 Disclaimer update November 2020 Added Software description December 2020 Modifications reserved | Data subject to change without notice Document number: BST-DHW-AN008-00 Arrow.com. - Page 25 Bosch Sensortec"| Click or tap here to enter text. 22 | 22 Bosch Sensortec GmbH Gerhard-Kindler-Strasse 9 72770 Reutlingen / Germany contact@bosch-sensortec.com www.bosch-sensortec.com Modifications reserved Preliminary - specifications subject to change without notice Document number: BST-DHW-AN008-00 Modifications reserved | Data subject to change without notice Document number: BST-DHW-AN008-00 Arrow.com.
