• Make sure that there is an access to the mains
plug after the installation.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• There is a risk of fire when the appliance is in
connection with an extension cable, an adapter
or a multiple connection. Make sure that the
ground connection agrees with the standards
and regulations.
• Do not let the power cable to heat up to a
temperature higher than 90° C.
To prevent contact between the cable and the
appliance below the hob use the clamps which are
on the side of the cabinet.

CONNECTION CABLE

To replace the connection cable use only the
special cable or its equivalent. The cable type is:
H03V2V2-FT90.
Make sure that the cable section is applicable to
the voltage and the working temperature. The
yellow / green earth wire must be approximately 2
cm longer than the brown (or black) phase wire.

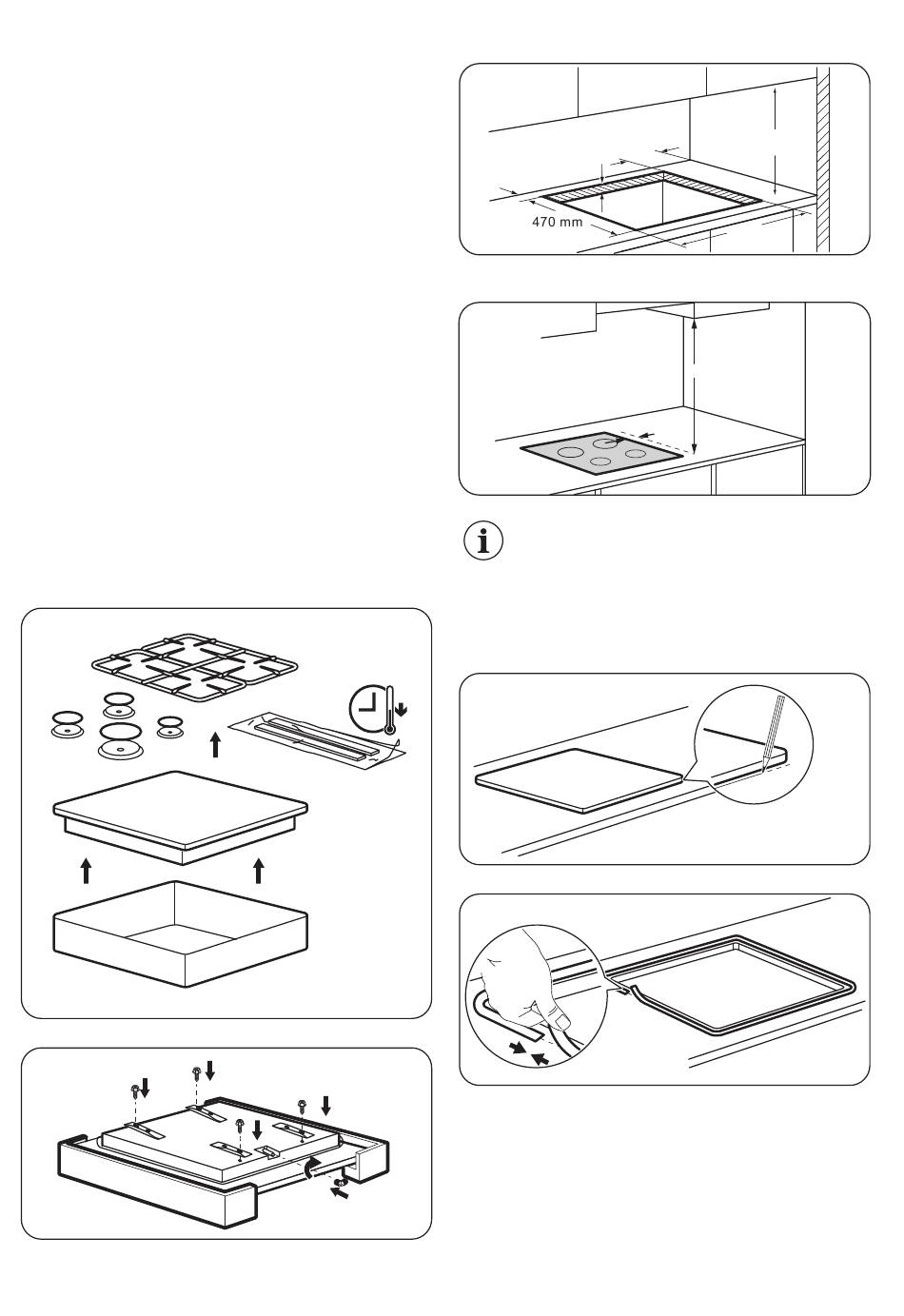

ASSEMBLY
1.
2.
12
3.
min. 100 mm
min. 55 mm
30 mm
4.
50 mm
If a furniture unit is installed at a
distance of 400 mm above the
hob, there must be a minimum
safety distance of 50 mm to the
left or right from the edge of the
hob.
5.
6.
min. 650 mm
550 mm
400 mm
