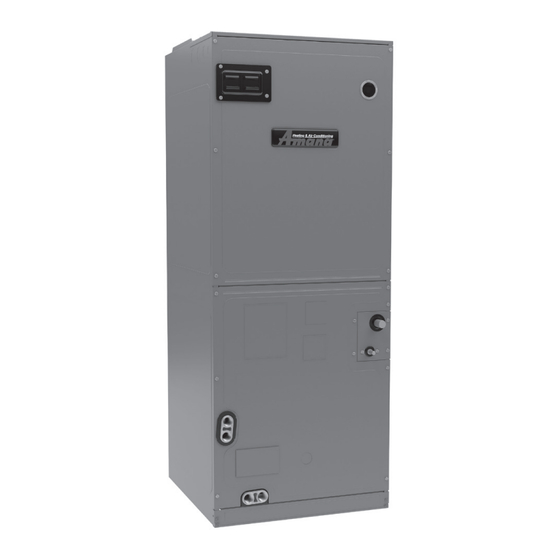

Multi-position, variable-speed, ecm-based air handler with internal eev, communicating for s-series matchups 1 1/2 to 5 tons
Hide thumbs Also See for AHVE Series:

Advertisement

Quick Links

Product Features
• Electronic Expansion Valve (EEV) for
cooling and heat pump applications.
• 7mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Amana® brand smart thermostat
• Provides constant CFM over a wide range of static
pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low-
CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified; ETL listed
• Coil mounting track for quick repositioning
• Rigid SmartFrame™ cabinet
• UL 60335 2-40 Compliant
SS-AHVE* (115V)
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
Multi-Position, Variable-Speed,
ECM-Based Air Handler with In-
ternal EEV, Communicating For
Cabinet Features
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan
with secondary drain connections
• Screw-less sides and back helps to reduce
condensation when installed in humid locations
• Foil-faced insulation covers the internal
casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
* Complete warranty details available from your local dealer or at www.amana-hac.com To receive the
10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online
registration is not required in California or Québec.
www.amana-hac.com
AHVE* (115V)
S-Series matchups
1½ to 5 Tons
Contents
Nomenclature ....................................... 2
Product Specifications .......................... 3
Dimensions ........................................... 4
Wiring Diagram ..................................... 5
Accessories ........................................... 6
10/23

Advertisement

loading

Summary of Contents for Amana AHVE Series

  • Page 1: Table Of Contents

    10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Québec. SS-AHVE* (115V) www.amana-hac.com 10/23 Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
  • Page 2: Nomenclature

    30 - 2.5 Tons 60 - 5.0 Tons Cabinet Width AC* Series AM* Series AW* Series M - 43.25" B - 17.5" S - 20.2" L - 49.25" C -21.0" L - 24.0" D - 24.5" *Refer S&R Plate www.amana-hac.com SS-AHVE* (115V)
  • Page 3: Product Specifications

    ¾" ¾" Electrical Data Voltage - Phase 115-1 115-1 115-1 115-1 115-1 Min Circuit Ampacity 10.4 10.4 10.4 10.4 Max. Overcurrent Device (amps) Minimum VAC Maximum VAC Blower Motor ½ ¾ ¾ ¾ ¾ Ship Weight (lbs) SS-AHVE* (115V) www.amana-hac.com...
  • Page 4: Dimensions

    1640 1640 1640 1640 *The chart is for information only. For satisfactory operation, external static pressure must not exceed 0.5 wc. *Unit may provide different SCFM during electrical heater operation. See IO manual for the airflow rate. www.amana-hac.com SS-AHVE* (115V)
  • Page 5: Wiring Diagram

    High Voltage: Disconnect all power before servicing or installing this unit. Multiple power Warning refer to the wiring diagram on the sources may be present. Failure to do so may cause property damage, personal injury, or death. unit for the most up-to-date wiring. SS-AHVE* (115V) www.amana-hac.com...
  • Page 6: Accessories

    23.0” x 20.0” Drain Port Plug Kit Number Description Application DPK1 Side Drain Port Plug All Models 15” Single Lamp UV Coil Purifier Model Lamp Power Mod Rem Cord UC18S15-24 UCP-16013 UCP-16015 UCP-16016 UC18S15-24B UCP-16012 UCP-16014 UCP-16016 www.amana-hac.com SS-AHVE* (115V)
  • Page 7 Notes SS-AHVE* (115V) www.amana-hac.com...
  • Page 8 Notes Amana® is a registered trademark of Maytag Corporation or its related companies and is used under license. All rights reserved. Our continuing commitment to quality products may mean a change in specifications without notice. ©2023 • Houston, Texas • Printed in the USA.
