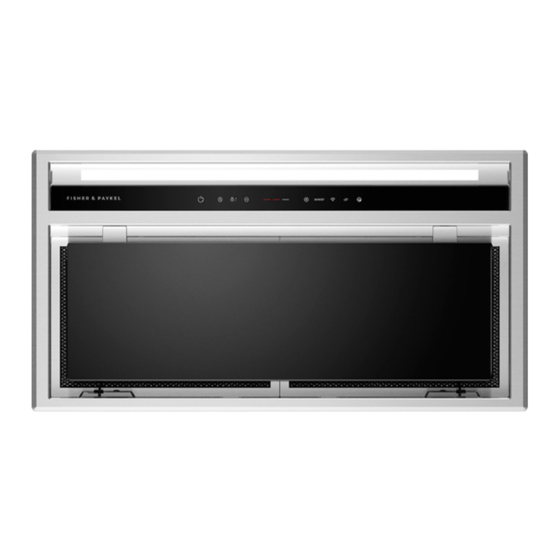

- Page 1 INTEGRATED INSERT RANGEHOOD CONTEMPORARY HP60IDCHX4 & HP90IDCHX4 INSTALLATION GUIDE NZ AU...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS Always switch the power off prior to installation, servicing or cleaning of the appliance. WARNING! This appliance must be installed and connected to the mains power supply only by a suitably qualified person according to these installation instructions and in compliance Electric Shock Hazard with any applicable local building and electricity regulations. -
Page 3: Components Required
COMPONENTS REQUIRED PARTS TOOLS Keep all packing materials until the unit has been inspected. Not supplied Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &... -
Page 4: Product Dimensions
PRODUCT DIMENSIONS Models: HP60IDCHX4 NOT TO SCALE Product Dimensions a Overall height of rangehood without ducting adapter PLAN VIEW B Overall height of rangehood with ducting adapter c Overall width of rangehood d Overall depth of rangehood (excl. cabinetry front panel) - Page 5 PRODUCT DIMENSIONS Models: HP90IDCHX4 NOT TO SCALE Product Dimensions a Overall height of rangehood without ducting adapter PLAN VIEW B Overall height of rangehood with ducting adapter c Overall width of rangehood d Overall depth of rangehood (excl. cabinetry front panel) e Diameter of ducting adaptor f Width of rangehood chassis g Depth of rangehood chassis...
-
Page 6: Cutout Dimensions
CUTOUT DIMENSIONS 60CM MODELS 90CM MODELS HP60 HP90 CUTOUT DIMENSIONS CUTOUT DIMENSIONS A Overall width of the cutout A Overall width of the cutout B Overall depth of the cutout B Overall depth of the cutout... -
Page 7: Installation Height
INSTALLATION HEIGHT Induction cooktop considerations Induction cooktops use energy efficient technology that only heats the contents of a cooking pot. Unlike gas or traditional electric cooktops, the surrounding air does not get heated when using an induction cooktop. As a result, rangehood filters, splashbacks and surrounding cabinetry do not get warmed up, increasing the likelihood of condensation on these cooler surfaces. -
Page 8: Venting Requirements
Ensure the cavity is set up to the correct specifications. Refer to ‘cutout MODEL FREQUENCY VOLTAGE dimensions’ for details. HP60IDCHX4 50 Hz 220 - 240 V HP90IDCHX4 Ensure access for the one power connection has been considered and is accessible to the customer. - Page 9 INSTALL PREPARATION / CONSIDERATIONS UNPACK PRODUCT Open carton and remove all packaging. Ensure the top of the rangehood remains Carefully lift the products out of the accessible via the cavity throughout the cartons. installation. Place on a protected surface. Refer to cooktop specifications to ensure Dispose of packaging responsibly.
- Page 10 PREPARE CABINETRY RECIRCULATION INSTALLATION Ensure the cabinetry can support the weight of the rangehood and ducting. Not relevant for ducting options. Venting directly into the cabinet with no ducting and louvered vent is not permitted. NON PRECUT CABINETRY Note: Placement of the louvered vent on the top of your cabinetry is not recommended. This should only be done if objects can be prevented from falling through the louvers into the blower.
- Page 11 INSTALL DUCTING RIGID DUCTING Not relevant for recirculation installation. Vent representative in the following rigid ducting steps. Cut ducting to length. Ensure the ducting is the correct length Ensure the ducting is the correct length and size for your rangehood and that all and size for your rangehood and that all required bends are present.
- Page 12 INSTALL DUCTING RIGID DUCTING SEMI-RIGID DUCTING Extend the ducting to ensure it is the Fit ducting to the external vent and correct length and compatible to the secure. rangehood. Install external venting as required. Weather proofing requirements depend on the cladding/roofing type. Options for external venting include soffit, wall or roof.
-
Page 13: Prepare Hood
INSTALL DUCTING PREPARE HOOD SEMI-RIGID DUCTING Slot non-return valves into the adapter and ensure they fold upwards and move freely when installed. Seal ducting to external outlet. Fit the duct adapter to the rangehood using two supplied Phillips screws. If required, secure ducting within ceiling. Ensure that there is an air gap between the mounting brackets and the hood chassis. -
Page 14: Install Hood
INSTALL HOOD Lift rangehood into cavity until all four mounting brackets clip in. Check brackets have safely engaged on the Refit perimeter plate and secure using cabinetry before releasing rangehood. the screws removed in step 3. Ensure power cable remains free and unobstructed during this process. -
Page 15: Connect Power
SECURE DUCTING CONNECT POWER Attach ducting to adapter. Plug in and turn power on. Secure using tape, cable ties or metal straps as required. Recirculation only: Install the carbon filters onto the blower. Rotate the filter until secure. -
Page 16: Installer Checklist
AFTER POWER CONNECTION INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER … Have all packaging been removed? Remove film from all surfaces of the … Rangehood is correctly installed rangehood. … All connections are secure … The ducting is not bent or crushed in any areas …... - Page 17 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
