Planning Information
36"
Downdraft Ventilation System
(914)
M O D E L S D D 3 6 I A N D D D 3 6 R
Model DD36I
Internal Blower Included
Model DD36R
In-Line or Remote Blower
Required
Control module and top cover for
the 36" (914) downdraft come in classic,
platinum and carbon stainless steel
finishes and are available as sales acces-
sories. Model DD36I includes a 500 CFM
internal blower. In-line and remote blower
options are available for Model DD36R.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/07
Top cover available
in three finishes
9" (229) chimney
elevation
Aluminum mesh
filters
T
he cooktop downdraft rises from the countertop to
whisk away odors and smoke into the easy-to-clean,
five-layer mesh filter. For ease in matching your Wolf
cooktop, the remote-mounted control module and top
cover are available in the exclusive premium finishes
of platinum or carbon stainless steel, or the standard
classic stainless steel finish.
Wolf downdraft ventilation systems are recommended
for use with Wolf induction, framed electric and gas
cooktops and integrated modules. They cannot be
used with unframed electric cooktops and are not
recommended for use with the electric grill, steamer
and fryer modules.
A Pro ventilation hood is recommended for use with
Wolf dual fuel ranges, gas ranges, sealed burner
rangetops and gas rangetops. With an accessory trim
kit, the 36" (914) downdraft can be used with sealed
burner rangetop Model SRT366.

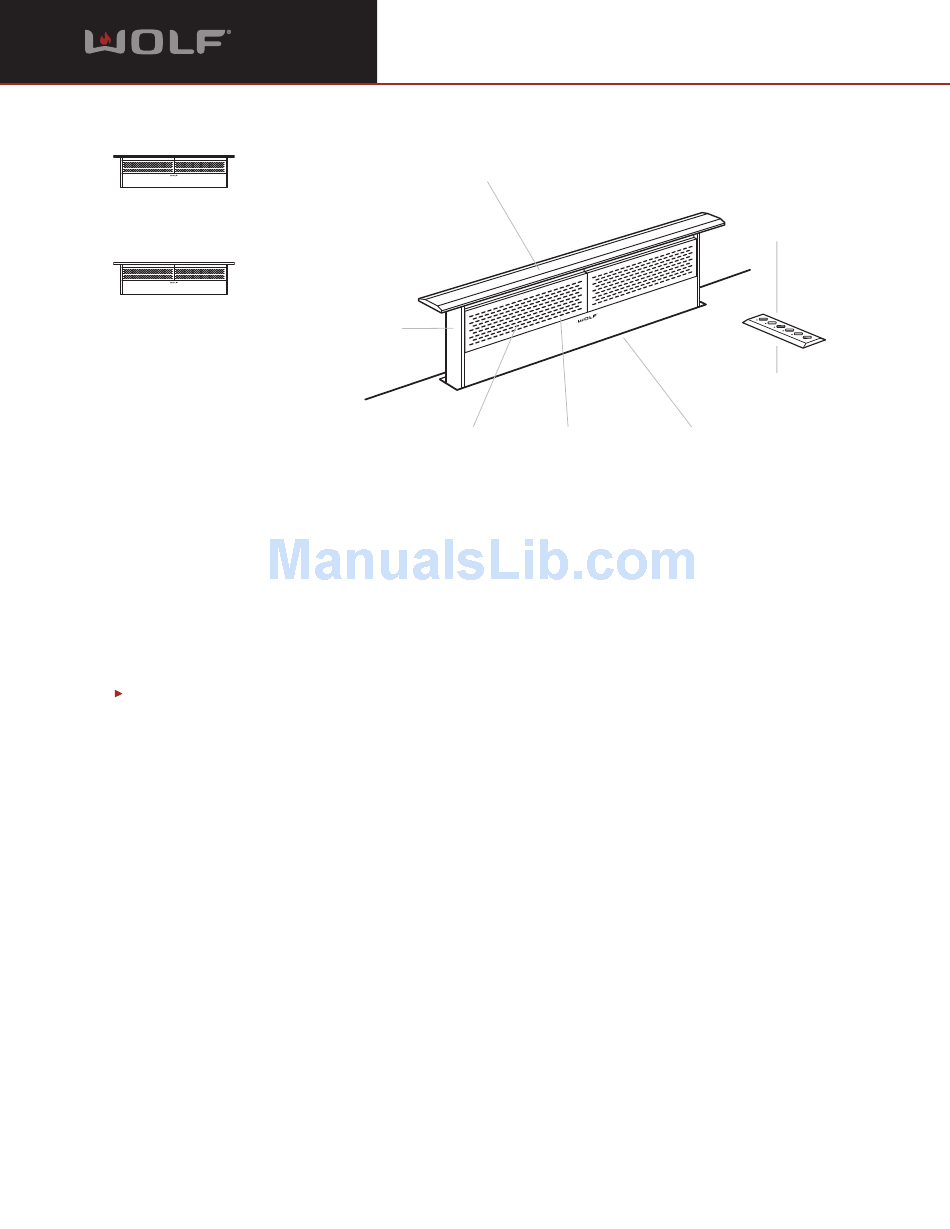

Stainless steel
Location of
filter covers
rating plate
Three-speed
blower control
Remote-mounted
control module
