controls. The auger will continue to rotate until the trac-
tion control lever/Free Hand control lever is released.
8. If desired, use the grip warmer switch (L, Figure 3) to turn
on the heated hand grips (if equipped).
NOTE: Be sure to turn off the heated hand grips before stop-
ping the snowthrower.
NOTE: Some models are equipped with automatic heated
hand grips that are operational whenever the snowthrower is
running.
9. Some models are equipped with a headlight (O, Figure
3) to help illuminate the area in front of the snowthrower.
The headlight is operational whenever the snowthrower
is running.
Stopping the Snowthrower
1. Release the auger control lever (A, Figure 3).
2. Release the traction control lever (F).
3. Stop the engine. Please refer to the engine operator's
manual for engine instructions.

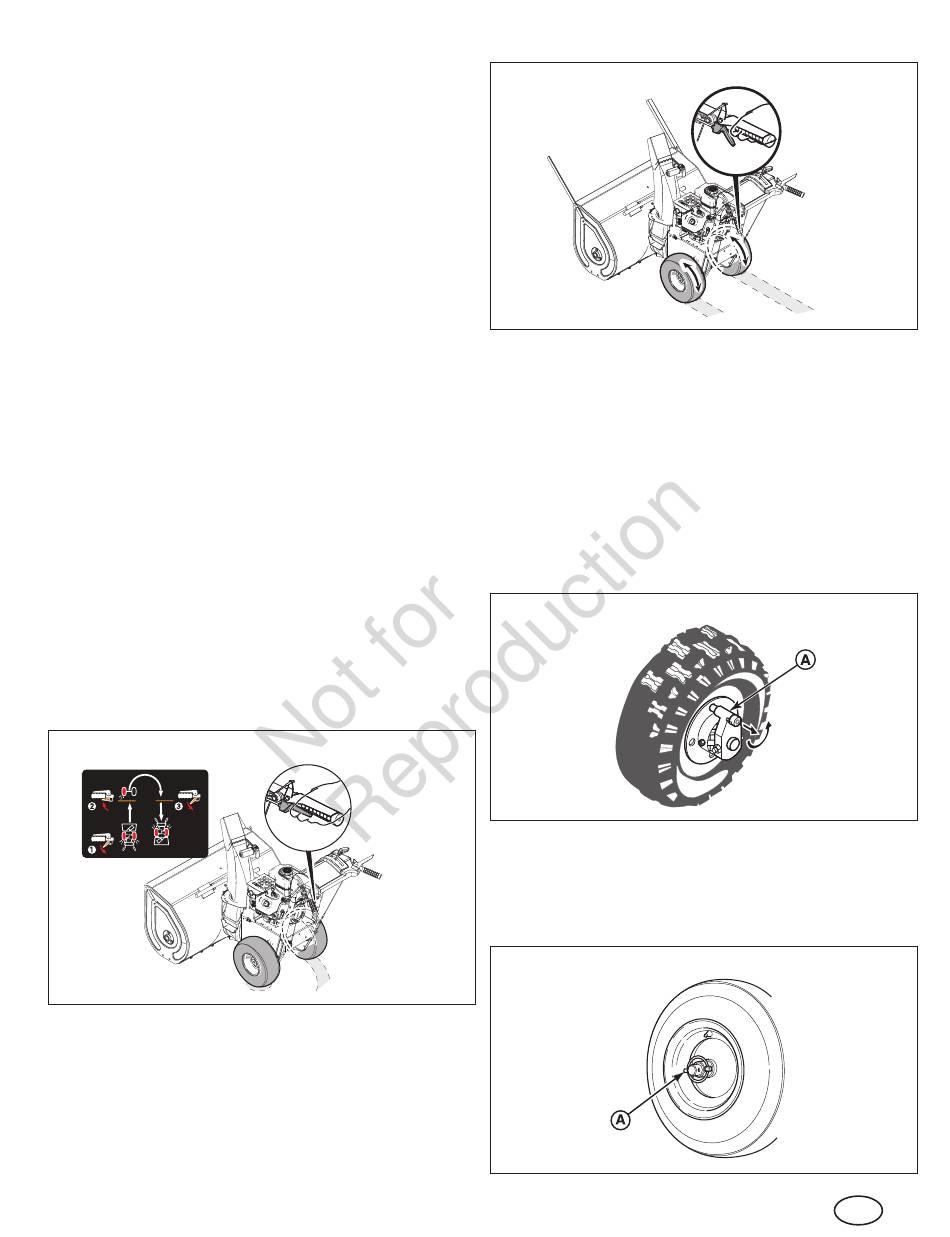

Easy Turn™ Traction Control (if
equipped)
For easy turning when using the snowthrower, squeeze the
Easy Turn traction control lever (Figure 4).
NOTE: Some models feature Easy Turn traction control for
one wheel only, while other models feature it for both wheels.
NOTE: Easy Turn traction control will be more difficult to acti-
vate under a heavy load. Activate the lever before beginning
a turn.
4
Engaging the Easy Turn traction control lever releases one
of the traction wheels, but allows the other wheel to continue
driving. Releasing the Easy Turn traction control lever auto-
matically engages both drive wheels for full traction (Figure
5).
5
Wheel Release - Lock Knob (if
equipped)
Some models are equipped with a drive wheel release that
allows you to disengage one of the drive wheels, for easier
transporting of the unit with the engine off.
Models with Traction Lock Knob: Wheels equipped with a
traction lock knob (A, Figure 6) can be completely released
by pulling the knob out away from the wheel until the locking
pin is disengaged from the wheel. Then rotate the knob so
the pin does not re-engage the wheel. Reverse this process
to engage the drive wheel.
6
Wheel Release - Lock Pins (if equipped)
Wheels equipped with a traction lock pin (A, Figure 7) can be
completely released by removing the pin and installing it in
the outer axle hole. Reverse this process to engage the drive
wheel.
7
