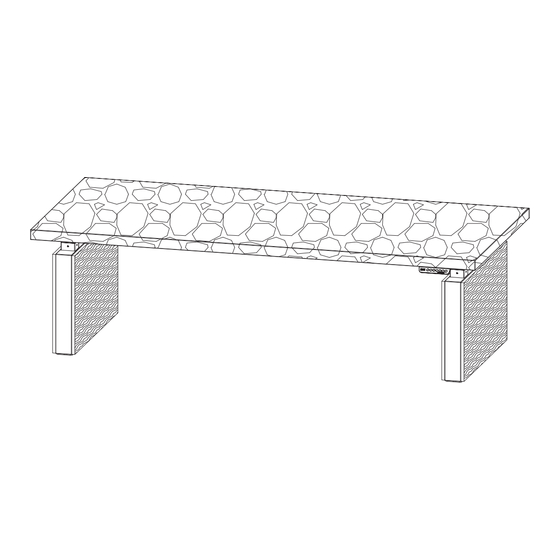

- Page 1 ERK-ED87-GY MODEL # ZEN EXECUTIVE DESK TRUE ERGONOMICS, TRUE COMFORT...
- Page 2 PARTS / PIÈCES / PARTES / (P1) (P2) (P3) (P4) (P5) (P6) (P7) (P8) (P9) (P10) (P11) (P12) (P13) (P14) (P15) (P16) (P13)
- Page 3 HARDWARE / MATÉRIEL / HARDWARE / M8*15mm G1/4*12mm M4*10mm X2 M6*16mm...
- Page 4 ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE MONTAJE Do not tighten the screws until all of them are screwed into the holes. Ne serrez pas les vis avant qu'elles ne soient toutes vissées dans les trous. No apriete los tornillos hasta que todos estén atornillados en los agujeros. STEP 1 (P1) (P2)
- Page 5 STEP 2 (P3) M8*15mm...
- Page 6 STEP 3 (P4) G1/4*12mm...
- Page 7 STEP 4 (P5) M8*15mm...
- Page 8 STEP 5 (P6) (P8) (P7) NOTE: All cables should be routed from the bottom of the top rack to the tray. 注意：所有线缆应从顶架底部布线到托线盘...
- Page 9 STEP 6 (P9) NOTE: All cables should be routed from the bottom of the top rack to the tray. 注意：所有线缆应从顶架底部布线到托线盘。...
- Page 10 STEP 7 (P10) NOTE: All cables should be routed from the bottom of the top rack to the tray. 注意：所有线缆应从顶架底部布线到托线盘...
- Page 11 STEP 8 NOTE: All cables should be routed from the bottom of the top rack to the tray. (P12) 注意：所有线缆应从顶架底部布线到托线盘...
- Page 12 STEP 9 NOTE: All cables should be routed from the bottom of the top rack to the tray. 注意：所有线缆应从顶架底部布线到托线盘。 (P11) (P12) Plug in the power and test whether the lift function is normal. 插上电源，测试升降功能是否正常...
- Page 13 STEP 10 NOTE: All cables should be routed from the bottom of the top rack to the tray. 注意：所有线缆应从顶架底部布线到托线盘 (P13) Plug in the power and test whether the lifting function and heating function are normal. 插上电源，测试升降功能和发热功能是否正常...
- Page 14 STEP 11 (P15)
- Page 15 STEP 12 G1/4*12mm X8...
- Page 16 STEP 13 (P14) G1/4*12mm X2...
- Page 17 STEP 14 M4*10mm X2...
- Page 18 STEP 15 (P16) M6*16mm X16 Don't screw in, leave the rod length of about 1mm. 预留杆长1mm左右...
- Page 19 STEP 16 NOTE: All cables should be routed from the bottom of the top rack to the tray. 注意：所有线缆应从顶架底部布线到托线盘...
- Page 20 STEP 17 Tie the cable with the cable management buckle. 理线扣绑扎好线缆 Tighten! Serrer! Apretar! Stick Coller Pegar...
