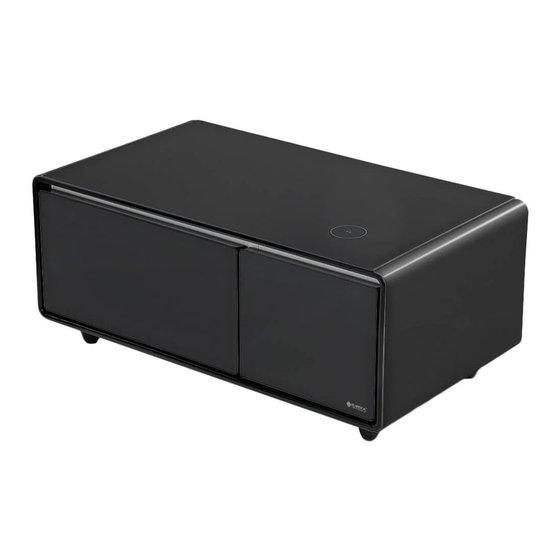

ERK-90Ma2
MODEL #
SMART COFFEE TABLE WITH
ALL-IN-ONE REFRIGERATOR & FREEZER
DRAWERS
In case you might need to return this product, please keep all the packaging materials and return only in its original packaging
and in excellent condition.
如需退货请保留好所有包装材料，并按原包装包好退回。
Advertisement
Related Manuals for Eureka ERK-90Ma2
Summary of Contents for Eureka ERK-90Ma2
- Page 1 ERK-90Ma2 MODEL # SMART COFFEE TABLE WITH ALL-IN-ONE REFRIGERATOR & FREEZER DRAWERS In case you might need to return this product, please keep all the packaging materials and return only in its original packaging and in excellent condition. 如需退货请保留好所有包装材料，并按原包装包好退回。...
- Page 2 PARTS & FEATURES/各部件名称 Tempered Glass Top 钢化玻璃台面 PET Tray 塑料托盘 Partition Wireless Charger 隔板 无线充电模块 Left Refrigerator Drawer 左冷藏室 Right Freezer Drawer 右冷冻室 110V Socket 110V插座 Overload Protection 插座保护 Control Panel USB TYPE-A PORT 机械温控 USB接口 Flip Cover 后壳翻盖门 Back Board 后壳...
- Page 3 SPECIFICATIONS/技术参数 18" 41.5" 23" Consumption Packing Size 128kWh/year 45.5'' x 27.6'' x 22.4'' 耗电量 包装尺寸 Noise Level Temp Control 36db Mechnical/机械控温 噪音 控温方式 Voltage Refrigeration Mode Compressor 110V-120V/60HZ 压缩机／直冷 输入电压 制冷方式 Net Weight Refrigerant/Wt 95.9 lbs R600a/42g 净重 制冷剂／充注量 Gross Weight Volume 132.3 lbs 65L + 28L...
- Page 4 PRECAUTION BEFORE USE ‒ UNPACKING/使用前注意事项 For better heat dissipation, remove the foam base, peel off the adhesive tape and the transparent film from the surface of the table. Failure to do so may result in personal injury or property damage. 拆除泡沫底座及固定用的胶带并将冰箱茶几表面的透明覆膜撕掉，...
- Page 5 NOTICE/安全注意事项 NOTICE ELECTRIC WARNINGS / 电气方面 1. After powering on the unit, please install the cable cover to prevent any damage of the cable. Do not step on the cable, otherwise it will raise the risk for electric leakage. 2. The power cord should be kept in firm contact with the power source. Failure to do so may result in property damage, personal injury or fire.
- Page 6 WIRELESS CHARGER / 无线充电装置 1. If the device is equipped with a thick protective shell or a metal protective shell, the charging efficiency may be affected. Remove the shell and try again. 2. The wireless charger may generate heat when charging. If the battery overheats, the software may limit the charging.
- Page 7 重复： 静置2个小时后再插电使用。 Use proper lifting technique! Exercise caution! If you have a history of back pain or injury, do not attempt to lift table. Eureka, LLC will not accept responsibility for any injury that may occur during set up process.
- Page 8 FUNCTION AND FEATURES/主要功能及特点 Right Freezer Drawer -13 ºF~3.2 ºF Left Refrigerator Drawer 34ºF~46ºF 右冷冻室 -25℃~-16℃ 左冷藏室1℃~8℃ REFRIGERATOR DRAWERS / 冷藏存储室 The Smart Coffee table is designed with two drawers that can be manually controlled for the temperatures. Frigerator drawer comes with two partitions and one tray to organize all your favorite beverages and snacks. 冰箱茶几有两个抽屉，...
- Page 9 USER GUIDE/使用说明 This smart coffee table adopt mechanical manual temp control, the factory default is level 3 .The food refrigeration is divided into 5 levels. The higher the level, the lower temperature. e.g: the factory default is level 3, adjust to 4-5 level to lower the temp; adjust to 1-2 level to increase the temp.
- Page 10 USB /手机充电插口 The smart coffee table is equipped with two USB charging interfaces. When connected to commonly used devices such as mobile phones, tablets, and desktop speakers via a data cable in a power-on state, it can be used for charging or starting smart devices.
- Page 11 WIRELESS CHARGING / 无线充电装置 Wireless charger only works for devices that are equipped with wireless charging and meet the QI standard. 无线充电装置只适用于配备无线充电功能的设备并且符合QI协议。 NOTE / 注意事项 1. Wireless charging is enabled once the table has been plugged in. 2. Please put the device to the center of the wireless charging area. 3.
- Page 12 DAILY MAINTENANCE/日常保养与维护 CLEANING / 清洁 Clean the Smart Coffee Table regularly to avoid dust accumulation. Wipe the surface of the table with the microfiber cloth. Do not store expired food in the drawers. 1.Before cleaning the Smart Coffee Table, please make sure to turn off the power and remove the plug.
- Page 13 DISASSEMBLY AND CLEANING OF THE REFRIGERATOR DRAWER / 冷藏保鲜抽屉的拆卸清洁 Before dismantling the refrigerator drawer, please take out the PET tray, drawer partition and all items inside from the refrigerator. Fully pull the door and the drawer, lift up the whole drawer and pull out the sets. You can use water to wash the drawer, PET tray, partition, and then use soft cloth to dry them.
- Page 14 TRANSPORTATION AND OUTAGE / 搬运和停用 TRANSPORTATION / 冰箱茶几的搬运 1. Unplug the product. 2. Take out all the items inside the Smart Coffee Table. 3. Use adhesive tape to secure the partition and PET tray inside the Smart Coffee Table. 4. Close the drawer and use adhesive tape to secure it. 1.
- Page 15 NON-FAILURE / 非故障现象 Foggy condensation on the surface: In rainy season with high humidity, condensation may occur on the surface of the refrigerator, which is not a malfunction, please dry it with a clean cloth. 冰箱茶几外表面出现雾状凝露： 在湿度非常大的季节， 如雨季等， 可能在箱外发生凝露现象， 这和冰水注入玻璃杯使其外 侧发生凝露现象相同，...
- Page 16 TROUBLE SHOOTING / 故障排除 Fault / 故障现象 Causes / 产生原因 Solutions / 排除方法 Power light is on, compressor is working but making Power Voltage is lower than 90V. "humming" sound. Stop powering on the refrigerator and 电源电压低于90V 电源指示灯亮， 压缩机不正常工作， 只有嗡嗡声 wait the voltage to get back to normal.
