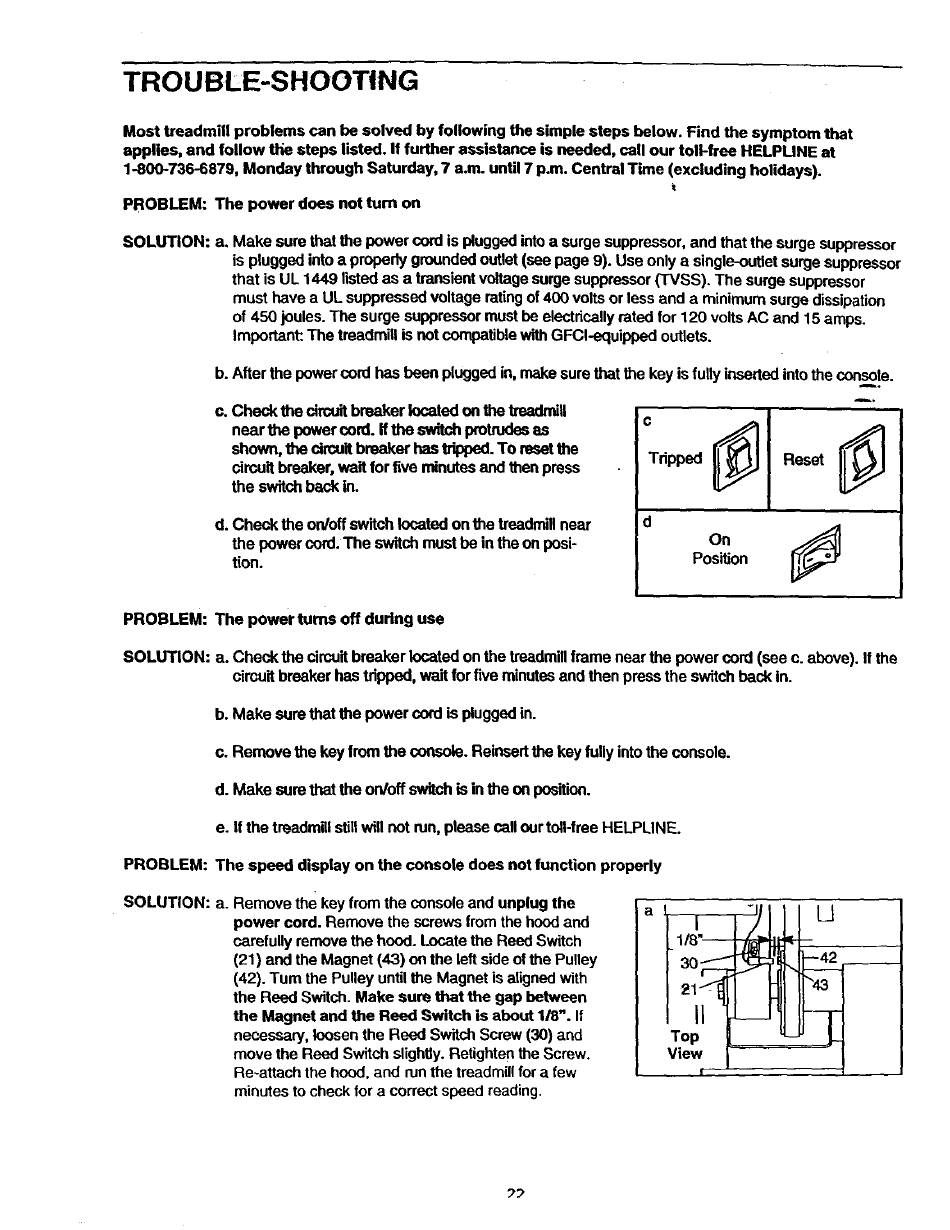

TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow ttie steps listed. If further assistance is needed, call our toll-free HELPUNE at
1-800-736-6879,
Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).
t
PROBLEM:
The power does not turn on
SOLUTION:
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor
must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation
of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.
Important The treadmill is not compatible with GFCl-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the con_!e.
c. Check the drcoit breaker located on the treadmill
near the power cord. If the switch profrudea as
shown, the circuit breaker has tripped. To reset the
dmult breaker, wN_tfor five minutes and then press
the switch back in.
d. Check the on/off switch located on the treadmill near
the power cord.The switch must be in the on posi-
tion.
c
d
o°
Position
PROBLEM:
The power turns off during use
SOLUTION:
a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back In.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. Make sure that the on/off switch is in the o(I position.
e. If the treadmgl stillwill not run, please call our toll-free HELPLINE.
PROBLEM:
The speed display on the console does not function properly
SOLUTION:
a. Remove the key from the console and unplug the
power cord. Remove the screws from the hood and
carefully remove the hood. Locate the Reed Switch
(21) and the Magnet (43) on the left side of the Pulley
(42). Tum the Pulley untn the Magnet is aligned with
the Reed Switch. Make sure that the gap between
the Magnet and the Reed Switch is about 1/8". It
necessan/, loosen the Reed Switch Screw (30) and
move the Reed Switch slighUy. Retighte n the Screw.
Re-attach the hood, and run the treadmill for a few
minutes to check lor a correct speed reading.
a
Top
View
