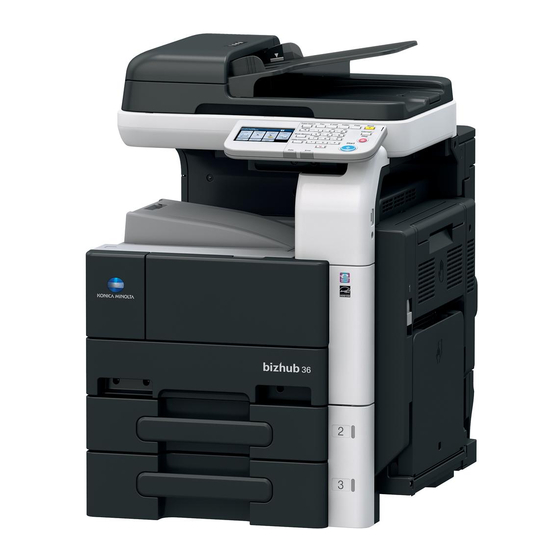

Konica Minolta bizhub 36 Setup Instructions

Hide thumbs Also See for bizhub 36:
Table of Contents

Advertisement

Quick Links

Download this manual
bizhub 36/42
bizhub vCare/CS Remote Care
HTTP (One-Way) Setup Instructions
Version 1.1
Created: 8/18/2010

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta bizhub 36

Summary of Contents for Konica Minolta bizhub 36

  • Page 1 36/42 bizhub vCare/CS Remote Care HTTP (One-Way) Setup Instructions Version 1.1 Created: 8/18/2010...

  • Page 2: Table Of Contents

    Purpose: This documentation is for setting up bizhub 36/42 vCare/CSRC One–way (Simplex) HTTP communication.. Convention: bizhub vCare is the US brand used by KMBS for Konica Minolta’s worldwide CS Remote Care System (CSRC). Overview: The settings entered into the CS Remote Care section of the bizhub are intended to do the following: Set the MFP with the current date, time and time zone according to Military Time.

  • Page 3: Administrative Requirements Prior To Mfp Http Setup

    1. Device ID: The Device ID for MFP must match the 13 digit ID configured on CSRC Server. The Device ID is the serial number for the MFP. This setting is hard-coded in the bizhub 36/42 vCare/CSRC settings. 2. Center ID: This ID is used by the vCare/CSRC Communication Server.

  • Page 4: Configuring Mfp For One-Way (Http) Communication

    2. Press Password -> 92729272 -> OK twice to enter Service Mode. Press [Down Arrow] and then [CS Remote Care] button. 4. Press [Down Arrow] and then select [Ram Clear]. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 3 of 21...
  • Page 5 5. Press Yes and then OK. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 4 of 21...
  • Page 6 14. Enter correct time zone by pressing the - or + keys and then press OK to save the changes. This setting will be required, even with NTP configured on the MFP. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide...
  • Page 7 18. Press [Center ID] twice. Enter the Center ID provided by your vCare Administrator. Example: USxxx 19. Press Delete five times and enter Center ID provided by your vCare Administrator. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 6 of 21...
  • Page 8 Note: Press [!#?/] button to enter / (forward slash) to access the symbol screen. 22. Select [Encryption Method] and press No for the Encryption Method setting. 23. Press OK to exit this screen. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 7 of 21...
  • Page 9 24. Press [Comm. Method]. 25. Press Simplex then OK and then Close. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 8 of 21...

  • Page 10: Configuring Webdav Settings

    E. Configuring WebDAV Settings 1. Press [WebDAV Settings]. 2. Press [Down Arrow] and then [Enable SSL] . Set to NO. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 9 of 21...
  • Page 11 3. Press OK to save the SSL setting. 4. Press [WebDAV Auth.]. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 10 of 21...
  • Page 12 5. Set [WebDAV Auth.] to On and then press OK. 6. Press WebDAV User Name button twice and enter HTTP WebDAV username (example: login name) then press OK. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 11 of 21...
  • Page 13 7. Select [WebDAV Password] twice and enter WebDAV account password. Press OK then Close. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 12 of 21...

  • Page 14: Initial Connection To Vcare Server

    Note: WebDav account WebDAV username and password supplied by vCare Administrator. F: Initial Connection to vCare Server 1. Press Subscribe button. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 13 of 21...
  • Page 15 2. Press Yes then OK. Note: Once “Completed” is displayed proceed to configuring your Reporting Schedule and Notification Items. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 14 of 21...

  • Page 16: Setting The Notification Schedule

    1. Press [Service Engr ID] (ID Code) . 2. Press [Number]. 3. Press Delete button up to seven times and then press OK 4. Select [Maintenance Start.] and press Yes then OK. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 15 of 21...
  • Page 17 5. Press [Down Arrow] and then CSRC Settings. 6. Press [Heart Beat Settings] and then No to disable Heart Beat. Press OK. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 16 of 21...
  • Page 18 7. Press [Periodic Transmission]. 8. Select [Enable Trans.] then Select Yes and Ok 9. Select Interval. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 17 of 21...

  • Page 19: Configuring Notification Items

    10. Select Daily and OK. H. Configuring Notification Items 1. Select [Switches Settings]. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 18 of 21...
  • Page 20 2. Select SC Error [SC] -> Set to On -> Press OK. 3. Repeat step 2 for the following buttons: Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 19 of 21...
  • Page 21 Press [Sales Count] button -> Set to On -> Press OK. 7. Repeat step 6 for the following buttons: Error Count Service Count Life Count System Data History Data Adjustment Data Coverage Data Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 20 of 21...
  • Page 22 Note: Press [Down Arrow] after setting Life Count in step 7 Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 21 of 21...

  • Page 23: Finalize The Vcare Install

    1. Select [Maintenance End] (If this step is not performed you will have a Blinking Start Button and the unit will not report in to the vCare Server). 2. Select Yes then Ok. Konica Minolta bizhub 36\42 bizhub vCare HTTP Setup Guide Page 22 of 21...
