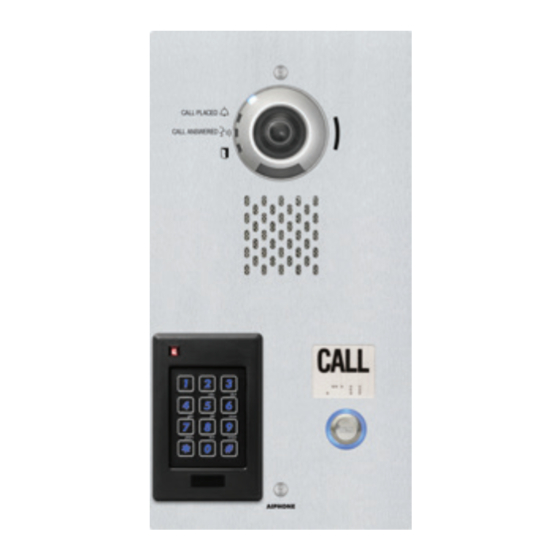

The IX-DVF-10KP is an IX Series video door station with a combination keypad and proximity card reader.
The IX-DVF-10KP will connect to a network switch, and the built-in keypad connects to an access control
system with a Wiegand connector.
IX-DVF-10KP
PACKAGE CONTENTS
IX-DVF-10KP
Door Station
2 Security Screws
T20 screwdriver
4 Bracket Screws
bit
x1
x1
Door Release
Option connector
Wire Harness
x1
Back Box
x1

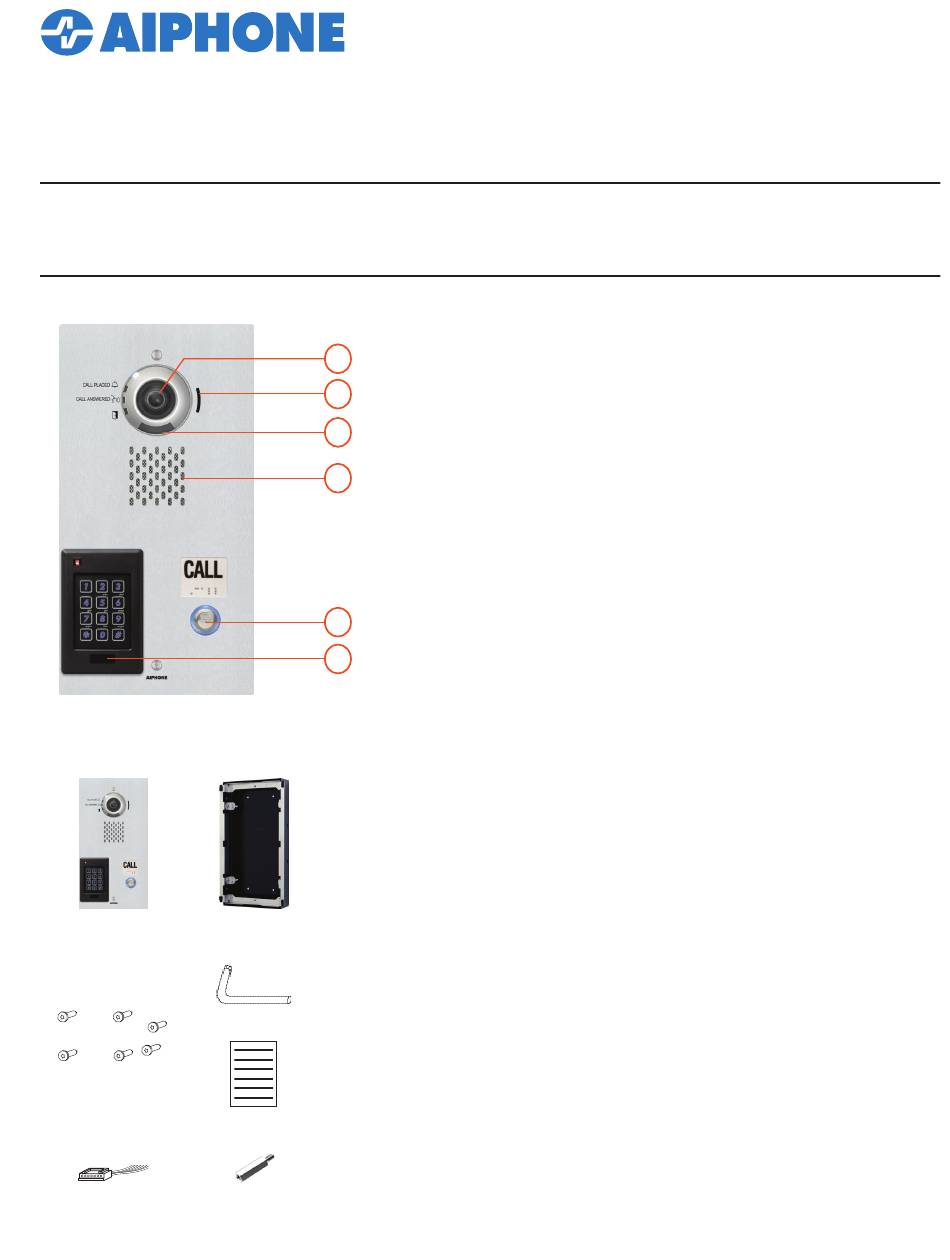

IX-DVF-10KP
INSTALLATION AND PROGRAMMING GUIDE
1
2
3
4
5
6
Flush Mount Back Box and
Mounting Bracket
Security Driver
Keypad Instructions
2 Security Screw
Standoffs
Names and Functions
1. Camera
2. Microphone
3. White LED for night viewing
4. Speaker
5. Call button
6. Proximity card reader and keypad
Features
• IP video door station
• Proximity card reader and access keypad
• Stainless steel faceplate with tamper resistant screws
Installation
For flush mounting, recess the supplied back box into
the wall, then attach the mounting bracket using the four
provided screws.
For surface mounting, use the SBX-IXGDM7 surface
mount box. This box can mount to a standard
single‑gang box or to any flat surface.
Use the two standoffs to install the security screws.
These are required for both the included back box and
the SBX-IXGMD7 surface mount box.
Back Box Dimensions: 12-1/2" H x 6-1/8" W x 2-3/8" D
IX-DVF-10KP Dimensions: 13-11/16" H x 7-3/16" W
