Aiphone IX Series Owners & Installation Manual

Networked video intercom system
Hide thumbs Also See for IX Series:
Table of Contents

Advertisement

Quick Links

See also: Programming Manual , Operating Manual
Installation Manual
IX Series
Networked Video Intercom System

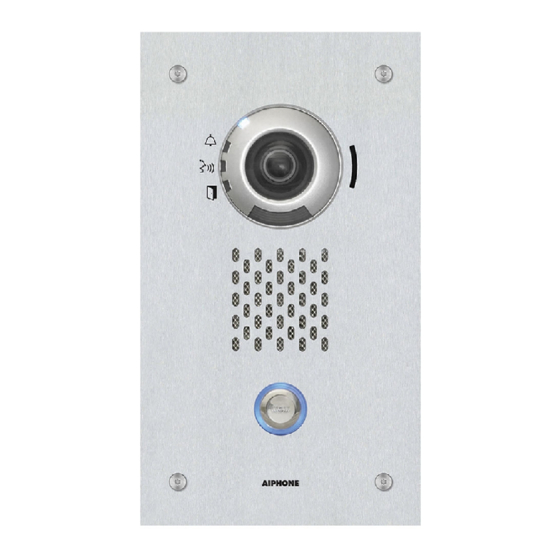

IX-DV, IX-DVF, IX-DVF-P, IX-DVF-2RA, IX-DVF-RA, IX-DVF-L,
IX-SSA, IX-SSA-2RA, IX-SSA-RA
Introduction
• Read this manual before installation and connection. Read the "Setting Manual" and "Operation Manual". The manuals
can be downloaded from our homepage at "https://www.aiphone.net/support/software-document/" free of charge.
• After completing installation and connection, program the system according to the "Setting Manual". The system cannot
operate unless it is programmed.
• After performing installation, review with the customer how to operate system. Leave documentation accompanying the
Master Station with the customer.
• Perform installation and connection only after gaining sufficient understanding of the system and this manual.
• The illustrations used in this manual may differ from the actual stations.

Advertisement

Table of Contents
loading

Related Manuals for Aiphone IX Series

Summary of Contents for Aiphone IX Series

  • Page 1 • Read this manual before installation and connection. Read the "Setting Manual" and "Operation Manual". The manuals can be downloaded from our homepage at “https://www.aiphone.net/support/software-document/” free of charge. • After completing installation and connection, program the system according to the "Setting Manual". The system cannot operate unless it is programmed.

  • Page 2: Literature Information

    Warning Negligence could result in death or serious injury. Do not disassemble or modify the device. For power supply, use Aiphone power supply May cause fire or electrical shock. model specified for use with system. If non-specified product is used, fire or Do not use with a power supply voltage mulfunction could result.
  • Page 3 General Precautions • Install low-voltage lines at least 30cm (11") away from high-voltage lines (AC100V, 200V), especially inverter air conditioner wiring. Failure to do so may result in interference or malfunction. • When installing or using the device, give consideration to the privacy rights of subjects, as it is the responsibility of the system owner to post signs or warnings in accordance with local ordinances.

  • Page 4: Table Of Contents

    Table of contents Literature information ...................1 Precautions ....................1 Example of System Configuration..............4 Part Names and Accessories...............5 Part Names ........................5 Included accessories ....................8 IX-DV .............................. 8 IX-DVF, IX-DVF-P, IX-DVF-2RA, IX-DVF-RA, IX-DVF-L, IX-SSA, IX-SSA-2RA, IX-SSA-RA ..8 Status Indicator ....................8 How to Install ....................9 Video Door Station Installation ..................

  • Page 5: Example Of System Configuration

    Example of System Configuration IX-MV7-HB IX-MV PC (third party) IX-RS-B PoE switch PoE switch PoE switch (third party) (third party) (third party) PoE switch PoE switch PoE switch PoE switch (third party) (third party) (third party) (third party) Network video Network camera recorder (third party)

  • Page 6: Part Names And Accessories

    Part Names and Accessories ■ Part Names IX-DV Under the Terminal cover Front view Back view Status indicator (Orange/Blue) Connectors Microphone Call Indicator Camera angle LAN PoE PSE (Green) adjustment lever Port (Out) Communication Camera MAC address Indicator (Orange) LAN PoE PD Port (In) Terminal cover LED for night...
  • Page 7 IX-DVF-2RA Under the Terminal cover Front view Back view Status indicator Connectors (Orange/Blue) Microphone Camera angle Call Indicator LAN PoE PSE adjustment lever (Green) Port (Out) Communication MAC address Camera LAN PoE PD Indicator (Orange) Port (In) Terminal cover LED for night Door release illumination Indicator (Green)
  • Page 8 IX-DVF-L Under the Terminal cover Front view Back view Status indicator Connectors (Orange/Blue) Microphone Camera angle LAN PoE PSE Call Indicator adjustment lever Port (Out) (Green) Camera Communication MAC address LAN PoE PD Indicator (Orange) Port (In) Terminal cover LED for night Door release illumination Indicator (Green)

  • Page 9: Included Accessories

    ■ Included accessories ● IX-DV Anchors x 4 Wall-mounting screws x 4 Special screwdriver x 1 Installation Manual × 2 (English, Notice (IX Manuals and Software) x 1 Option connectors French) (6pin x 1, 7pin x 1, 8pin x 1) Ferrite cores x 2 Chinese RoHS declaration ×...

  • Page 10: How To Install

    How to Install • The installation height of the equipment should not exceed more than 2m (Upper Edge) from the ground level. ■ Video Door Station Installation ● IX-DV (surface mount) Loosen the screw Fasten the unit to the NOTE with the special mounting surface.

  • Page 11: Ix-Dvf, Ix-Dvf-P, Ix-Dvf-2Ra, Ix-Dvf-Ra, Ix-Dvf-L, Ix-Ssa, Ix-Ssa-2Ra, Ix-Ssa-Ra (Flush Mount)

    ● IX-DVF, IX-DVF-P, IX-DVF-2RA, IX-DVF-RA, IX-DVF-L, IX-SSA, IX-SSA-2RA, IX-SSA-RA (flush mount) • When installing the unit on a rough surface, please use sealant to seal the unit edges to prevent water entering the unit. If the unit edges are left unsealed on a rough surface, IP65 ingress protection rating is not guaranteed. Open the terminal cover, and join the option Clamp the ferrite cores to connectors (included) to the low-voltage lines, and...

  • Page 12: Camera View Area And Mounting Location (Ix-Dv, Ix-Dvf, Ix-Dvf-P, Ix-Dvf-2Ra, Ix-Dvf-Ra, Ix-Dvf-L)

    ■ Camera View Area and Mounting Location (IX-DV, IX-DVF, IX-DVF-P, IX-DVF-2RA, IX-DVF-RA, IX-DVF-L) ● Camera view adjustment Using the camera angle adjustment lever, the camera can be Back View tilted up or down (-8°, 0°, +13°). Adjust the camera to the optimal position.

  • Page 13: How To Connect

    How to Connect ■ Connection Precautions ● Cat-5e/6 cable • For connection between devices, use a straight-through cable. • If necessary, when bending the cable, please observe the manufacturer's recommendations. Failure to do so could cause a communication failure. • Do not strip away the cable insulation any more than is necessary. •...

  • Page 14: Wiring Connection

    Wiring Connection • Insulate and secure unused low-voltage lines and the connector-attached lead wire. Brown Door Stations Orange Yellow Green Blue IX-DV IX-DVF IX-SSA, etc COM1 COM2 Brown Orange Yellow Green Blue ‒ Pre-installed Emergency button Pre-installed Hearing aid unit (IX-DVF-L) (IX-DVF-RA, IX-SSA-RA, IX-DVF-2RA, IX-SSA-2RA)
  • Page 15 PE0.8(20AWG)-2C Relay Output 1 *³ Relay Output 2 *³ PE0.8(20AWG)-2C Contact Input 1 to 5 *¹ LAN PoE PSE LAN PoE PD IEEE802.3af/at LAN PoE PSE * Cat-5e/6 straight PoE switch 100m (330') IEEE802.3af LAN PoE PD (works only with LAN PoE PSE(IEEE802.3at)switch)  Cat-5e/6 straight Additional IP device 100m (330')
  • Page 16 Minimum overload (AC/DC): 100mV, 0.1mA *4 The intercom unit can be powered by using a PoE switch or Aiphone PS-2420 power supply. In the case "PoE PSE" output of the intercom unit is used to power other devices, IEEE802.3at compatible PoE switch must be used to power the intercom unit.
