IMPORTANT! Read entire instruction sheet
before you start installation and assembly.

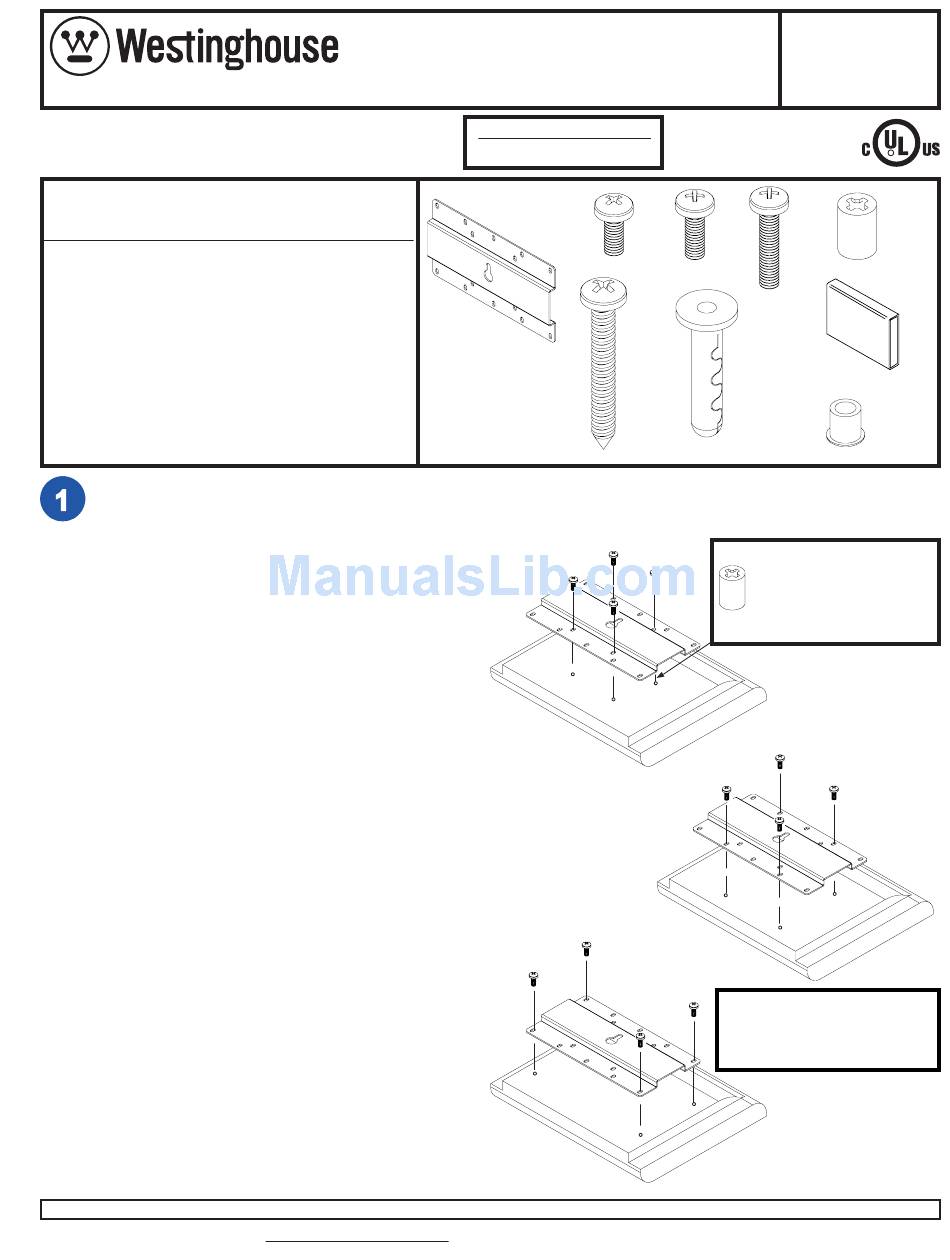

Parts List

DESCRIPTION
A wall bracket
B M4 x 10 mm phillips screw
C M4 x 12 mm phillips screw
D M4 x 20 mm phillips screw
E retaining spacer
F #10 x 1 1/2" wood screw
G concrete anchor
H rubber pad
I
screw isolation spacer
This product is designed to accommodate screens with VESA
pattern. For safe mounting, please make sure that mounting screws turn at least
three complete turns in the screen inserts.
FOR VESA 75 MOUNTING PATTERN: 1) Choose
hole pattern indicated to the right. 2) Attach wall
bracket (A) to back of screen using four 10 mm
screws (B) as indicated. 3) If hole pattern is in a
pocket, attach wall bracket (A) to back of screen
using four 20 mm screws (D) and four retaining
spacers (E) as indicated below.
FOR VESA 100 MOUNTING PATTERN: 1) Choose
hole pattern indicated to the right. 2) Attach wall
bracket (A) to back of screen using four M4 x 10
mm screws (B) as indicated. Note: If you don't get
three complete turns in the screen inserts, use four
M4 x 12 mm screws (C) instead of four M4 x 10 mm
screws (B).
FOR VESA 200 MOUNTING PATTERN: 1) Choose
hole pattern indicated to the right. 2) Attach wall
bracket (A) to back of screen using four M4 x 10 mm
screws (B) as indicated. Note: If you don't get three
complete turns in the screen inserts, use four M4 x
12 mm screws (C) instead of four M4 x 10 mm
screws (B).
Visit the Westinghouse Web Site at www.westinghousedigital.com
Installation and Assembly To Wood
Stud or Concrete - Flat Wall Mount
with VESA
QTY.
PART #
1
095-4195
4
520-2027
4
504-2013
4
504-2014
4
590-5003
1
500-2002
1
590-0097
2
590-1159
1
590-0112
®
200, 100, and 75
Max. Load Capacity
50 lb (22.7 kg)
B
A
F
A
A
1 of 4
ISSUED: 05-17-04 SHEET #: 095-9197-2 02-18-05
Model:
MT50 THIN
E
C
D
H
G
I
®
compliant hole
For screens with a hole
pattern in a pocket,
spacers (E) go between
adapter bracket (A) and
screens.
A
Note: Screen may appear
slightly different than
illustrated.
For customer service call 1-866-287-5555.
R
