Installation and Assembly:

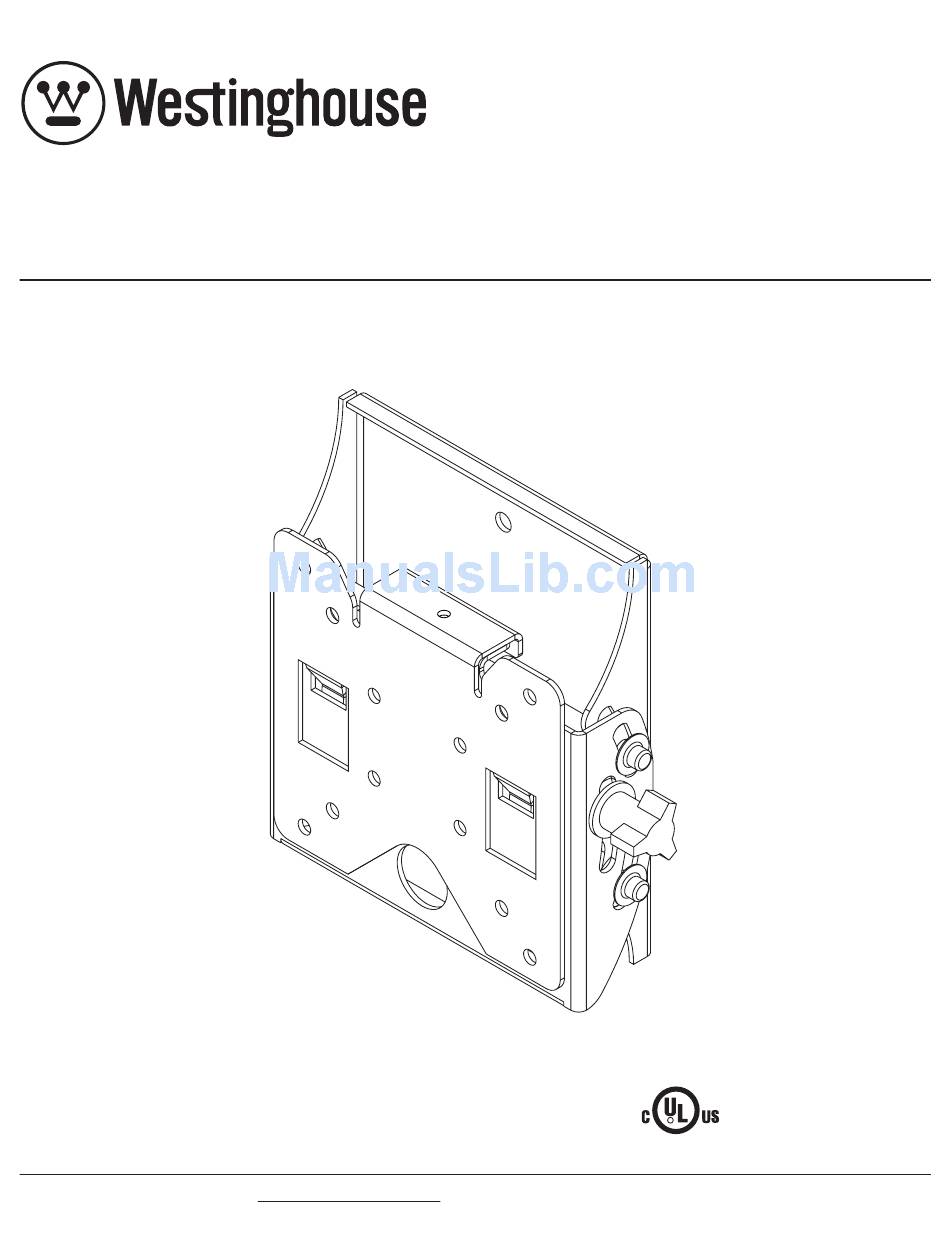

Universal Tilt Wall Mount for 15" - 37" Screens
Model: MT80A TILT
Features:
• Fits 15" to 37" flat panel screens
• One-touch tilt for effortless positioning and adjustment of the screen
Visit the Westinghouse Web Site at www.westinghousedigital.com
This product is intended for use with UL
Listed products and must be installed by a
R
qualified professional installer.
Max UL Load Capacity: 80 lb (36.3 kg)
For customer care call 1-866-287-5555.
ISSUED: 01-17-06 SHEET #: 202-9091-1
Advertisement
Related Manuals for Westinghouse MT80A TILT
Summary of Contents for Westinghouse MT80A TILT
- Page 1 • Fits 15" to 37" flat panel screens • One-touch tilt for effortless positioning and adjustment of the screen Visit the Westinghouse Web Site at www.westinghousedigital.com This product is intended for use with UL Listed products and must be installed by a qualified professional installer.
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. • Do not begin to install your Westinghouse product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call customer care at 1-866-287-5555. -
Page 3: Parts List
Parts List Description A adapter plate B tilt assembly C Alligator® anchor D M4 x 10 mm phillips screw E M4 x 20 mm phillips screw F retaining spacer G #14 x 2-1/2" hex head wood screw H M5 x 6 mm screw Part # 095-4346 095-0360... -
Page 4: Installation To Single Wood Stud Wall
Installation to Single Wood Stud Wall • Make sure that the wall will safely support the combined load of the equipment and all attached hardware and components. Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. Based on its edges, draw a vertical line down the stud’s center. -
Page 5: Installation To Solid Concrete Or Cinder Block
Installation to Solid Concrete or Cinder Block • When installing Westinghouse wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual con- crete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 6: Attaching Adapter Plate To Flat Panel Screen
Attaching Adapter Plate to Flat Panel Screen • If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. ®... -
Page 7: Installing And Removing Flat Panel Screen
Installing and Removing Flat Panel Screen Attach screen to tilt assembly (B). Tighten M5 x 6 mm screw (H) to lock screen to tilt assemby. Note: For security models, use security driver (I) to tighten M5 x 6 mm screws (H). To remove screen from mount, loosen screw (H) and lift screen off of mount. - Page 8 REPAIR OR REPLACEMENT – For a period of five (5) years from the original date of purchase, Westinghouse Digital Electronics will repair any defect in material or workmanship in the Product, or, at its option, replace a defective Product.
