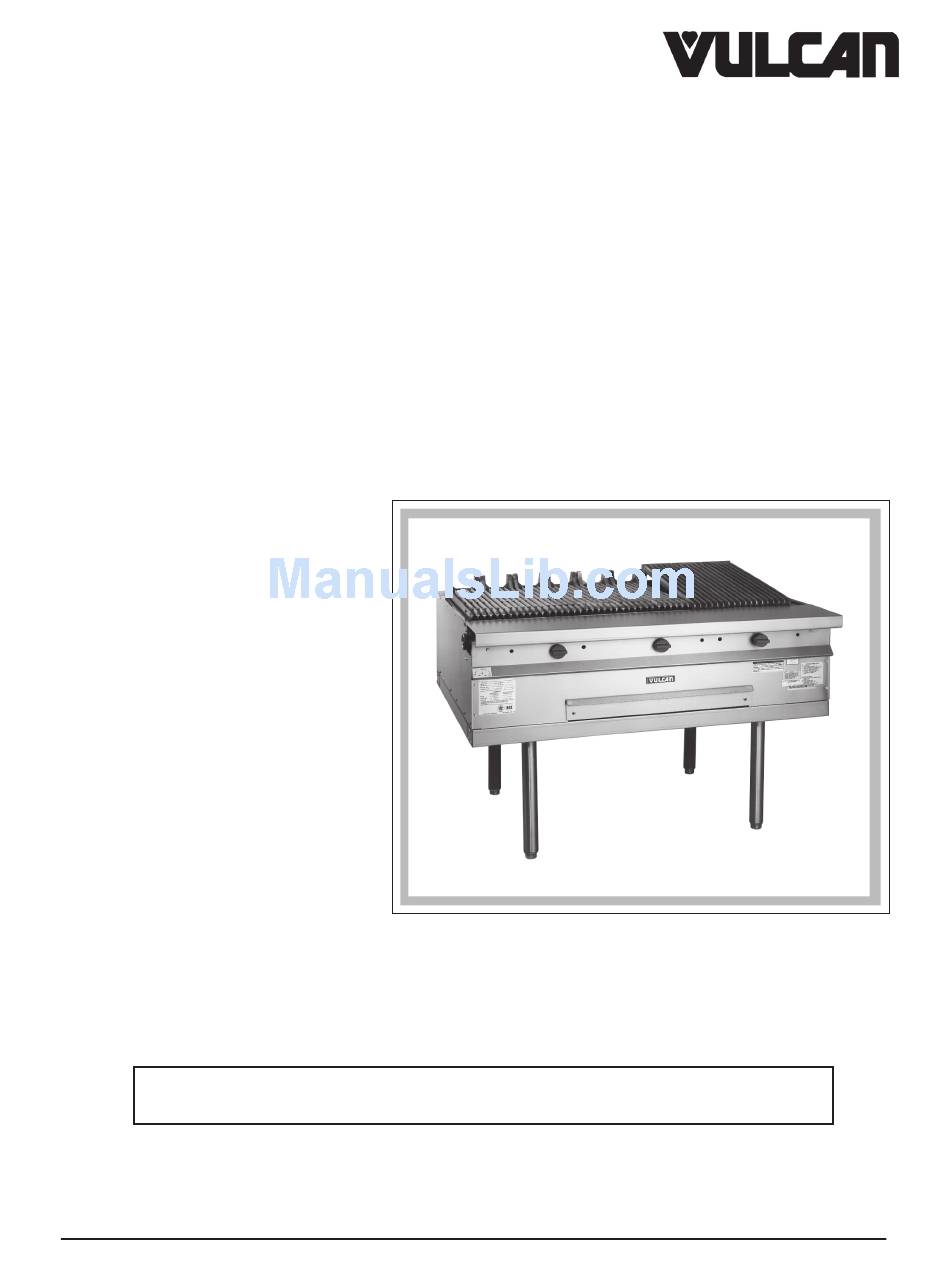

GHMCB34 & GHMCB51 MAGIC-FIN
HEAVY DUTY GAS BROILERS
MODELS
MLS
GHMCB34
ML-052244
GHMCB51
ML-052246
GHCB34S
ML-135526
GHCB51S
ML-135527
For additional information on Vulcan-Hart or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanhart.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANHART.COM
REPLACEMENT PARTS
P.O. BOX 696, LOUISVILLE, KY 40201-0696
CATALOG OF
TEL. (800) 814-2028
FORM 30852 Rev. A (12-06)
Advertisement
Related Manuals for Vulcan-Hart GHCB34S
Summary of Contents for Vulcan-Hart GHCB34S
- Page 1 GHMCB51 ML-052246 GHCB34S ML-135526 GHCB51S ML-135527 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanhart.com VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC WWW.VULCANHART.COM CATALOG OF REPLACEMENT PARTS P.O.
-
Page 2: Front View
GHMCB34 & GHMCB51 REPLACEMENT PARTS ILLUS. PART PL-40157-1A NO. 00-404738-00003 Valve - Pilot (Single) ... AR 00-412087-00001 Pilot Tubing ... AR 00-410610-00008 High - Low Valve (Nat., Mixed & L.P. Gases) ... AR NS-047-90 Nut 10-24 Hex ... 2 00-410592-000G1 Grease Collector Assy. (34" Char Broilers) ... 1 00-410592-000G3 Grease Collector Assy. - Page 3 BURNER - RADIANT - GRID GRATE ARRANGEMENT ILLUS. PART PL-40158-1 NO. 00-412852-00001 Grate - Top ... 1 00-410602-00001 Radiant - Burner ... AR 00-410600-000G2 Burner Assy..AR 00-410601-00001 Plate - Burner Baffle ... AR PC-003-56 Cotter Pin 00-404060-00001 Shutter - Air ... AR 00-411766-00001 Wire Cleaning Brush ...
- Page 4 GHMCB34 & GHMCB51 REPLACEMENT PARTS 11-12 PL-40159-1 PARTS - TOP VIEW (BEGINNING STYLE 1272) – 4 –...
- Page 5 ILLUS. PART PL-40159-1 NO. 00-413013-00001 Burner Support Plate (34" Char Broilers) ... 1 00-413013-00003 Burner Support Plate (51" Char Broilers) ... 1 00-410600-000G2 Burner Assy..AR 00-410601-00001 Plate - Burner Baffle ... AR 00-410592-000G1 Grease Collector Assy. (34" Char Broilers) ... 1 00-410592-000G3 Grease Collector Assy.
- Page 6 GHMCB34 & GHMCB51 REPLACEMENT PARTS 4-5-6 PL-40160-1A MANIFOLD (BEGINNING STYLE 1272) – 6 –...
- Page 7 ILLUS. PART PL-40160-1A NO. 00-410607-000G1 Tube - Pilot (with tip) ... AR 00-412087-00001 Pilot Tubing ... AR FP-081-74 Tee - Compression 00-417879-00001 Nozzle - Pilot Burner ... AR 00-010901-00056 Spud - Fixed Orifice (Propane & Butane Mixed) ... AR 00-010901-00044 Spud - Fixed Orifice (Nat. Gas) ... AR FP-022-28 Union 1 00-405881-00001 Manifold Cap ...
- Page 8 GHMCB34 & GHMCB51 REPLACEMENT PARTS 14-15 12-13 10-11 PL-40161-1A FRONT AND TOP UNIT (W/BACKGUARD) – 8 –...
- Page 9 ILLUS. PART PL-40161-1A NO. 00-410586-00002 Top Finishing Piece ... 2 NS-047-72 Lock Nut NS-047-90 Nut 10-24 Hex ... 2 00-410593-00001 Panel - Grease Collector (34" Char Broilers) ... 1 00-410593-00002 Panel - Grease Collector (51" Char Broilers) ... 1 00-410588-00002 Lower Front Panel (34" Char Broilers) ... 1 00-410588-00006 Lower Front Panel (51"...
- Page 10 GHMCB34 & GHMCB51 REPLACEMENT PARTS 16-17 14-15 12-13 10-11 PL-40162-1A FRONT AND TOP UNIT (W/O BACKGUARD) – 10 –...
- Page 11 ILLUS. PART PL-40162-1A NO. 00-410586-00002 Top Finishing Piece ... 2 NS-047-72 Lock Nut 00-410574-00001 Leg Brace (34" Char Broilers) ... 1 00-410574-00002 Leg Brace (SST)(34" Char Broilers) ... 1 NS-047-90 Nut 10-24 Hex ... 2 00-410593-00001 Panel - Grease Collector (34" Char Broilers) ... 1 00-410593-00002 Panel - Grease Collector (51"...
-
Page 12: Recommended Spare Parts
GHMCB34 & GHMCB51 REPLACEMENT PARTS RECOMMENDED SPARE PARTS PART NAME OF PART AMT. 00-410610-00008 Hi-Low Valve ... 2 00-404738-00003 Single Pilot Valve ... 2 00-410600-000G2 Burner Assy..2 00-410602-00001 Burner Radiant ... 2 00-412852-00001 Top Grid Plate ... 1 00-410607-000G1 Pilot Tube (With Tip) ...
