Vulcan-Hart 36SBI Specifications

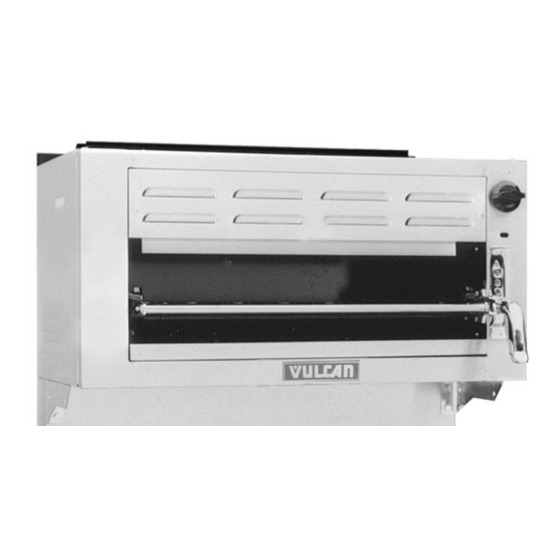

Model 36SBI Infrared Broiler
SPECIFICATIONS:
Gas infrared salamander broiler, Vulcan-Hart Model No. 36SBI.
Stainless steel reinforced back riser for mounting over gas
restaurant ranges. Stainless steel front, top and sides. 30,000
BTU/hr. heavy duty infrared burner. Infinite heat control valve.
Standing pilot ignition system. Chrome plated trigger grip con-
trol handle provides positive positioning of the broiling carriage.
Heavy duty chrome plated broiling grid measures 27
Removable full width spillage pan.
pressure regulator.
Exterior dimensions: 36"w x 19"d x 17
only).
CSA design certified. NSF listed.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
VULCAN-HART COmpany, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32548 (04-07)
/ "w x 13"d.
1
2
/ " top connection and gas
3
4
/ "h (broiler dimensions
5
8
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
MODEL 36SBI
36" HEAVY DUTY GAS INFRARED
SALAMANDER BROILER
■ 36SBI
Infrared Salamander Broiler
Required Back Riser for Range Mounting
36BR Riser for 36L Series Ranges
■
48BR Riser for 48L Series Ranges
■
60BR Riser for 60L Series Ranges
■
■ 481BR
Riser for 481L Series Ranges
■ 148BR
Riser for 148L Series Ranges
■ 160BR Riser for 160L Series Ranges
■ 260BR Riser for 260L Series Ranges
NOTE: 36SBI must be used in conjunction with appropriate back
riser.
STANDARD FEATURES
■ Stainless steel front, top and sides.
■ Stainless steel single deck plate shelf adjacent to broiler
(48" x 60" ranges only).
■ 30,000 BTU/hr. heavy duty infrared burner.
■ Infinite adjustment temperature control.
■ Standing pilot ignition system.
■ Chrome plated trigger grip control handle provides positive
positioning of the broiling carriage. Heavy duty chrome plated
broiling grid measures 27
■ Removable full width spillage pan.
/ " top gas connection and gas pressure regulator.
3
■
4
■ One year limited parts and labor warranty.
OPTIONS
■ Set of stainless steel wall mount brackets.
■ Set of 4" legs with adjustable feet.
C.S.I. Section 11420
/ "w x 13"d.
1
2
