VTech gz5838 Install Manual

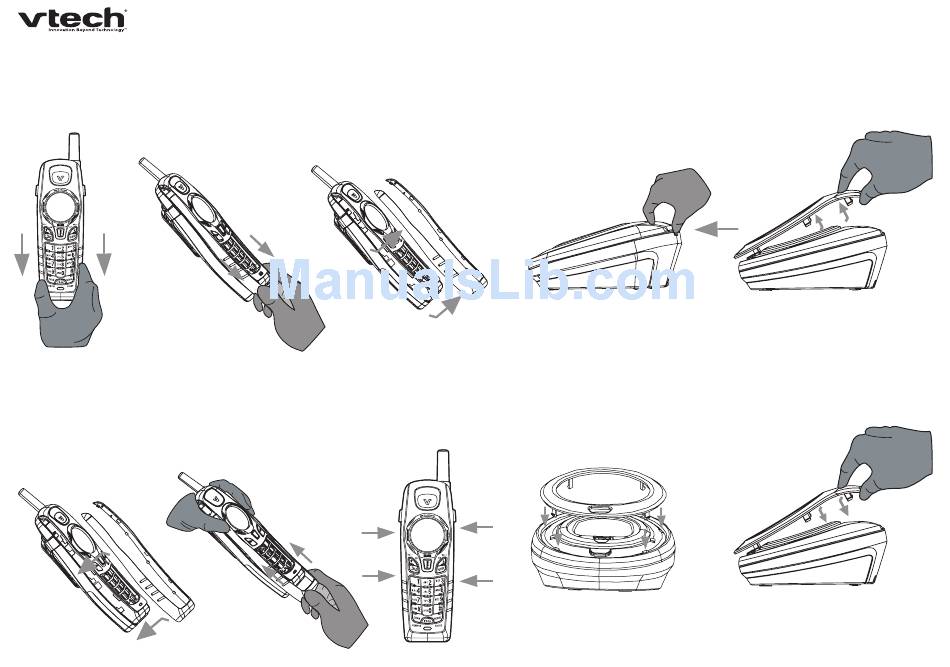

Removable handset bracket and telephone base plate
for model gz5838
To remove the handset bracket:
1. Hold the two sides of 2. Press and slide it downward
the handset bracket. to the bottom of the handset.
To install a new handset bracket:
1. Align the two sides of the 2. Push the center part
bracket and push it upward to
the top of the handset.
3. Remove the bracket by
pulling it out.
3. Press the bracket on both
in towards the bottom sides towards the center
of the handset until it of the handset until all tabs
clicks into place. are clicked securely
into place.
To remove the telephone base plate:
1. Insert your thumb into the slot at the
back of the telephone base.
To install a new telephone base plate:
1. Align the tabs on the back of the new
telephone base plate into the slots on the
telephone base and push downward until
they click into place.
2. Lift up the telephone base plate away from
the slots on the telephone base.
