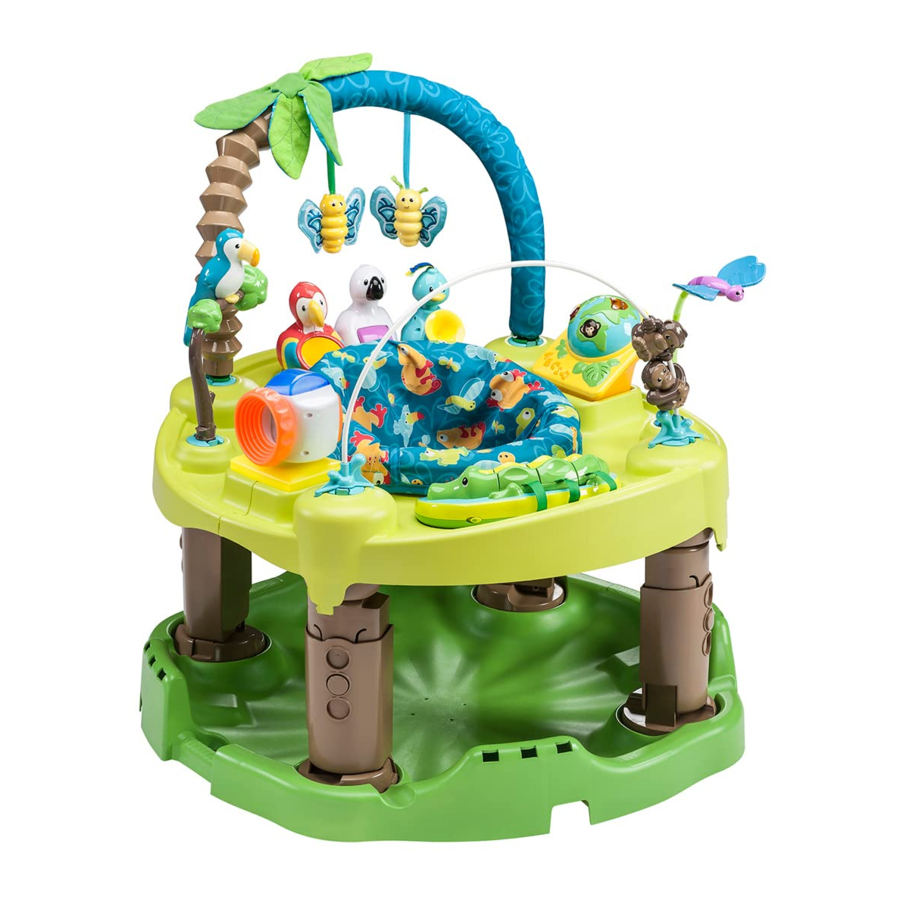

Evenflo Exersaucer Triple Fun - Activity Center Manual

Package Contents

Hardware Kit Bag (1)
1 Instructions
24 Screws–#6x3/4"(3.5 x 19 mm)
4 Washers
4 Large springs
4 1-3/4" (44.5 mm) springs
4 1-1/2" (38 mm) springs
2 End Caps
4 Leg Locks
4 Pylon Rings
4 Stabilizer Feet
6 Seat Wheels

Toy Kit Bag (1)
8 Toys

Tools Required

Phillips Screwdriver

Tighten all screws until snug; do not overtighten. Use only #6 x 3/4" (3.5 x 19 mm) screws (included).
DO NOT USE POWER TOOLS.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at www.evenflo.com/registerproduct
For future reference, record the Model Number and Date of Manufacture.

Stage 1 Assembly

Stage 1 is used for infants from birth to 4 months old.

1. Place mat on floor.
2. Place feet on either side of mat, as shown.
3. lnstall toy bar into feet, as shown. Press toy bar down firmly until it snaps into place. Pull up on the toy bar and stalk toys installed into the feet to make sure they are locked

Stage 2 Assembly

Base Assembly

1. Turn base upside down and locate four stabilizer feet . Insert one side of foot into the foot bracket hole and twist the foot until the other side snaps into the opposite hole, as shown. Repeat until all four stabilizer feet are installed.
   To use stabilizer feet:
   Flip the four stabilizer feet out from beneath base to prevent ExerSaucer from rocking.

2. Locate four pedestals , then turn over and install the 1-1/2 inch (38 mm) spring with screw in each pedestal. Position spring as shown. Do not overtighten screw.

3. To install a pedestal , hold it above the base so that the locking tab with the rib lines up directly over the slot with the notch .

4. Attach the spring to the hook on the base , as shown. Once the spring is in place, align all three locking tabs on the pedestal with the slots in the base and snap the pedestal into place.

5. Turn the base upside down and make sure the locking tabs on each pedestal are completely pushed through to the underside of the base and have locked over the edge of the openings, as shown.

6. Check to ensure that the locking tabs are installed properly by turning the pedestal clockwise, then releasing. The pedestal MUST spring back into place. Repeat for all four pedestals.

7. Insert lower leg assembly at an angle (as shown) onto top of pedestal , then rock gently while applying a steady downward pressure until it snaps into place. Swing lower leg assembly up until it locks in the upright position. Repeat for all four leg assemblies.
   You are now finished assembling the base. Set it aside so you can assemble the tray.



Tray Assembly

1. Locate two tray halves . Install spring , upper leg crown , and pylon ring onto one of the tray halves. Secure with four screws .
   Note: Hold the upper leg crown and pylon ring securely while installing screws. Tension from the spring will try to push the upper leg crown and pylon ring upward.
   Repeat for other upper leg crown on this tray and for both upper leg crowns on the other tray half.


TIP
Install and tighten screws on the pylon ring in the following sequence.

2. Insert upper leg into the upper leg crown until it snaps into place. Pull up on upper leg to ensure it is securely installed in upper leg crown .
   Repeat until all four upper leg assemblies are complete.
   Note: Make sure the adjustment holes on the front of all four upper legs are facing the outer edge of the tray , as shown.

3. Slide one end of 1-3/4 inch (44.5 mm) spring into the spring notch in leg lock , as shown.
   Note: Once the spring has been installed correctly, it will stay in place. Repeat for all four leg locks.

4. Set one leg lock on the pylon ring and on the tray , as shown.
   Note: The Side Cutaway View above illustrates how the spring must rest against the spring tab so the leg lock will operate properly.

5. Push downward on the leg lock (against the pylon ring and the tray ) while pulling it toward you until it slides off of the pylon ring, as shown.

6. While holding the leg lock , allow the spring to pull the leg lock back toward the upper leg as you guide it through the pylon ring , as shown.

7. Secure the leg lock with screw and washer . Do not overtighten.
   Note: Check that each leg lock is installed correctly by pulling backward, then releasing it. If the leg lock springs back into positon, it is installed correctly. If it does not spring back into position, remove the screw and washer and repeat Steps 5 and 6. Repeat for all legs.

8. Assemble the tray by snapping both tray halves together, as shown.
   Note: Make sure the tray halves lock securely.

9. Locate the large end cap and press it onto mounting posts for storage, as shown.
   Locate the small end cap and press it onto mounting posts for storage, as shown.


Seat Assembly

1. Place seat ring upside down and locate the wheel holders . Snap six (6) seat wheels into wheel holders, as shown.

2. Turn seat ring right side up. Align triangle on the back of the seat ring with the triangle on the seat pad label. Snap the plastic tabs on the pad over the pegs on the seat ring. Continue this process until all tabs are attached to all pegs.

3. Press assembled seat ring down firmly onto the top of the tray until it snaps into place and spins freely.


Align and start each upper leg into the lower leg openings . Push button and guide upper leg into lower leg until upper leg snaps into place.

Allow only the baby's toes to touch the base. DO NOT allow the baby to stand flat-footed on the base. As baby grows and becomes more active, raise the tray to the next level so that baby enjoys the most comfortable fit and maximum use of the spin and bounce features.

To adjust height:
ALWAYS remove baby from ExerSaucer before adjusting. Push the button until the desired position is obtained.
Make sure that all four legs are adjusted to the same position.

Toy Assembly

Folding/Unfolding Stage 2

1. To fold ExerSaucer, ALWAYS remove baby and toy bar(s) from ExerSaucer before folding.
   With ExerSaucer flat on the floor, twist each leg assembly fully clockwise (the direction of the arrow) until it stops in the position shown.
   Fully depress one of the pedestal locking tabs then push on the leg assembly ; leg will partially fold. Repeat this procedure for all four legs.
   After pressing the fourth pedestal locking tab , the ExerSaucer will fold with the tray rotating toward the base . Make sure all four tray locks are locked onto the base before trying to carry ExerSaucer.
   Note: Make sure the legs are at the same height adjustment or the ExerSaucer will bind and not fold properly.


2. To unfold the ExerSaucer, release the four tray locks by pulling them outward from the base , as shown.
   Hold the base down with your foot, and pull the tray upward. The tray will rotate as you pull and the legs will lock in the upright position. The leg assemblies will lock onto the pedestals .
   Twist the tray to make sure all legs are locked properly.

   Make sure all four leg assemblies are firmly locked onto the pedestals before use.


Stage 3 Assembly

Stage 3 is used for children who are walking age to 24 months.

1. Remove toys and seat from the ExerSaucer.
2. Follow Step 1 in the "Folding/Unfolding Stage 2" section to fold the ExerSaucer, but do not let the tray lock to the base.
3. Place your fingers beneath the legs , as shown, and push upward to disconnect the leg assemblies from the pedestals . Repeat for all four leg assemblies.


4. After all four legs have been disconnected from the pedestals, remove tray assembly from the base .
5. Turn tray upside down and remove the large end cap and the small end cap from beneath.

6. Squeeze both locking tabs each side of the tray to disconnect on and separate the tray halves . Re-position them as shown.

7. Connect tray halves to form activity table.
   Note: Make sure the tray halves lock securely.

8. Rotate leg assemblies fully counterclockwise, (the direction of the arrow) until they lock into the position shown. Make sure that all four leg locks are locked properly into the upper leg crown , as shown above. Also, make sure the ends of all four leg locks are sticking out past the edge of the tray, as shown.

   DO NOT use this activity table unless the legs have locked into place!


9. Install the small end cap , as shown. Make sure the locking tabs have locked over the edge of the opening, as shown.

10. Turn table over and install the large end cap , as shown. Make sure both end caps and are locked into place.

11. Install toys on activity table. If desired, adjust table to the appropriate height for your child.
    Note: Always make sure that all four legs are adjusted to the same height.


NEVER use Stage 3 without end caps!

Care and Maintenance

For Plastic Parts:
Wipe surface clean with cloth slightly moistened with mild soap and water. Allow to air dry.

For Seat Pad and Playmat:
For Best Results
Machine Wash Separately, Cold Water – Delicate Cycle. NO CHLORINE BLEACH.
Tumble Dry: 10 – 15 Minutes on Low Heat – Remove Immediately.

If musical toys fail to operate, check the batteries.
Note: ONLY the AAA batteries are replaceable. Dispose of old batteries safely.
DO NOT use this product if any parts are missing, damaged or broken.

BATTERY INFORMATION
Battery life varies with use.

Safety Information:
Batteries are small objects. Batteries must be replaced by adults. Follow the polarity (+/-) diagram in the battery compartment.

• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
• Remove batteries before storing unit for a prolonged period of time.
• DO NOT allow unit to get wet.
• Promptly remove dead batteries from the toy.
• Dispose of used batteries properly.
• Only batteries of the same or equivalent type, as recommended, are to be used.
• DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.

Battery Replacement:
To replace batteries, loosen screw and remove battery door. Discard old batteries properly and replace with 3 AAA alkaline batteries. Replace door and tighten screw.

Troubleshooting

Toy does not turn on or does not respond

• Make sure batteries are installed correctly.
• Make sure battery cover is correctly secured.
• Install new batteries.

Toy makes improper responses

• Check or install new batteries.
• Power Off then Power On, to reset.

Warnings

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• NEVER leave child unattended. ALWAYS keep child in view while in the ExerSaucer®.
• Read all instructions before assembly and use of the ExerSaucer®.
• Keep instructions for future use.
• Keep children away from unassembled product.
• Adult assembly required. Take care when unpacking and assembling; contains small parts and sharp edges.
• To prevent a possible choking hazard, remove and immediately discard packing material before using this product.
• Strings Can Cause Strangulation!
  • DO NOT place the ExerSaucer anywhere near cords from window blinds, draperies, phone, etc.
  • DO NOT place items with strings, such as hood strings or pacifier cords, around your child's neck.
  • DO NOT suspend strings over product or attach strings to toys.
• To avoid possible entanglement or strangulation (on Stage 1), remove toy bar when baby begins to push up on hands and knees.
• NEVER use near stairs or steps.
• NEVER use ExerSaucer near ranges, radiators, space heaters, fireplaces or any other heat source.
• NEVER use ExerSaucer in or near swimming pools or other bodies of water.
• DO NOT fill the ExerSaucer tray with water.
• DO NOT fold or adjust height while baby is sitting in ExerSaucer®.
• DO NOT use the ExerSaucer if any parts are missing, damaged or broken.
• NEVER use as a sled.
• DO NOT allow child to sleep in ExerSaucer (Stage 2).
• DO NOT spin baby in seat. Only permit baby to rotate the seat.
• Stage 2 is for use by children who are at least 4 months oldAND can hold up their head and neck unassisted.
• Stop using Stage 2 when your child reaches any of the following developmental stages:
  • Can walk by himself/herself
  • Is over 30" (76 cm) tall
  • Can climb out of the product
  • Can stand flat-footed in the ExerSaucer in the highest adjustment level
• Allow only the baby's toes to touch the base. DO NOT allow the baby to stand flat-footed on the base.
• DO NOT use or store this product outdoors.
• To avoid tip-over, place product on flat, level floor.
• NEVER place playmat from Stage 1 in the bottom of saucer.
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Only batteries of the same or equivalent type, as recommended, are to be used.
• DO NOT dispose of batteries in fire, as batteries may explode or leak.
• DO NOT use rechargeable batteries.
• DO NOT recharge non-rechargeable batteries.
• Promptly remove old batteries from the toy.
• Remove batteries before storing unit for a prolonged period of time.
