BQ76905 2-Series to 5-Series High Accuracy Battery Monitor and Protector for Li-Ion,
Li-Polymer, LiFePO
1 Features
Battery monitoring capability for 2-series to 5-
series cells
Integrated low-side drivers for NFET protection
with optional autonomous recovery
Extensive protection suite including voltage,
temperature, current, and internal diagnostics
16-bit delta-sigma voltage ADC
– High-accuracy cell voltage measurement of 4
mV (typical)
A dedicated simultaneous 16- and 24-bit delta-
sigma coulomb counter ADC
– High-accuracy current measurement with low
input offset error
– Wide-range current applications (±200-mV
measurement range across sense resistor)
– 48-bit accumulated charge integrator with timer
Host-controlled cell balancing
Multiple power modes (typical battery pack
operating range conditions)
– NORMAL mode: 32 μA to 175 μA
– SLEEP mode: 6 μA
– DEEPSLEEP mode: 2.7 μA
– SHUTDOWN Mode: <1 μA
High voltage tolerance of 45 V on cell connect and
select additional pins
Support for temperature sensing using an internal
sensor and external thermistor
Integrated one-time-programmable (OTP) memory
for device settings, programmed by TI
2
400-kHz I
C serial communications with optional
CRC support
Programmable LDO for external system usage
20-pin QFN (RGR) package
2 Applications
Cordless power tools and garden tools
Vacuum cleaners
Non-military drones
Other industrial battery pack (2 series to 5 series)
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
(LFP), and LTO Battery Packs
4
3 Description
The Texas Instruments BQ76905 provides a
highly integrated, high-accuracy battery monitor and
protector for 2-series to 5-series Li-ion, Li-polymer,
LiFePO
(LFP), and LTO battery packs. Each device
4
includes a high-accuracy monitoring system, a highly
configurable protection subsystem, and support for
host-controlled cell balancing. Integration includes
low-side protection NFET drivers, a programmable
LDO for external system use, and an I
communication interface supporting up to 400-kHz
operation with optional CRC. The BQ76905 is
available in a 20-pin QFN package.
PART NUMBER
BQ76905
(1)
See the orderable addendum at the end of the data sheet.
+
+
VC3A
VC3B
+
VC2
+
VC1
+
VC0

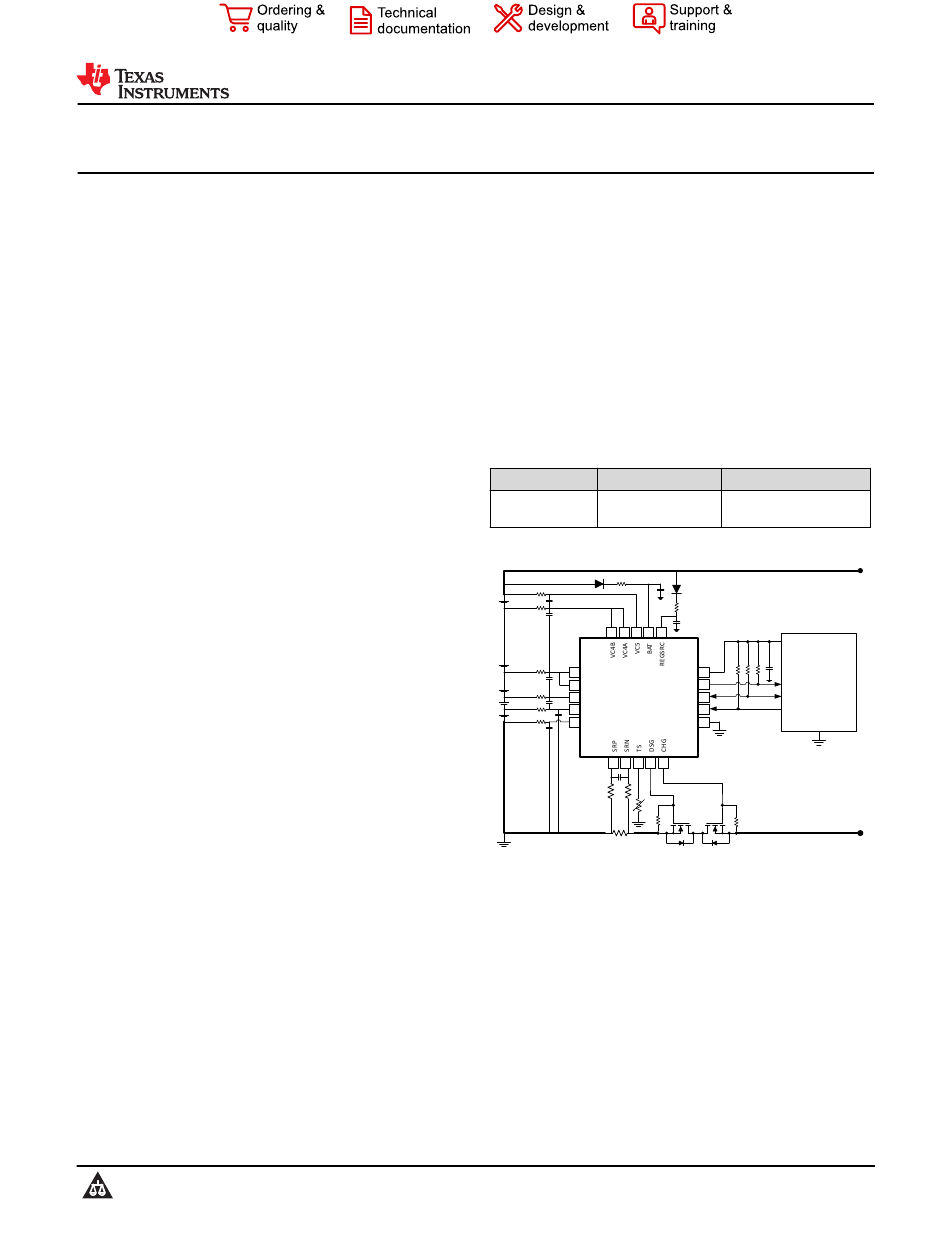

Figure 3-1. Simplified Schematic
SLUSE97 – NOVEMBER 2023
2
C host
Device Information
(1)
PACKAGE
PACKAGE SIZE (NOM)
3.5 mm × 3.5 mm × 0.9
RGR (20-pin QFN)
mm, 0.5-mm pitch
VDD
REGOUT
INTP
ALERT
SDA
SDA
SCL
SCL
VSS
TS
BQ76905
PACK+
MCU
GND
PACK-
