Viking M Technical Data

De cem ber 17, 2004

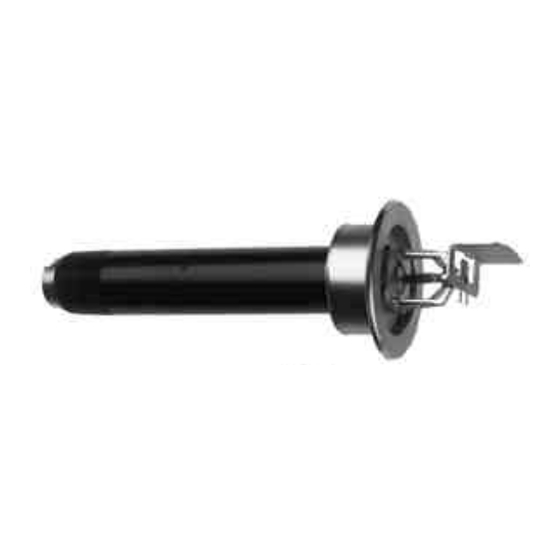

1. PRO DUCT NAME
Vi king Model M Stan dard Re sponse Dry
Hor i zon tal Side wall Sprin klers
• Ad just able Re cessed
• Ad just able Stan dard
• Plain Bar rel
2. MAN U FAC TURER
The Vi king Cor po ra tion
210 N. In dus trial Park Road
Hastings, Mich i gan 49058, USA
Tele phone: (269) 945-9501
(877) 384-5464
Fax: (269) 945-9599
e-mail: techsvcs@vikingcorp.com
3. PRO DUCT DE SCRIP TION
The Vi king Stan dard Re sponse Dry
Side wall Sprin kler is a thermosensitive
glass-bulb spray sprin kler, suit able for
use in ar eas sub ject to freez ing. It is
designed for dry sys tems and preaction
sys tems where it is nec es sary to pre vent
wa ter or con den sa tion from en ter ing the
sup ply nip ple be fore the sprin kler op er -
ates. It may also be in stalled in spaces
sub ject to freez ing and sup plied from a
wet sys tem in an ad ja cent heated area.
The as sem bly fea tures a sealed brass in let
and a du ra ble, threaded steel bar rel with an
elec tro de pos it ed ep oxy base coat ing. The
sprin kler is of the Model M de sign with a 5
mm glass bulb and hor i zon tal side wall de -
flec tor. The Vi king Stan dard Re sponse Dry
Hor i zon tal Side wall Sprin kler is avail able in
sev eral fin ishes and tem per a ture rat ings to
meet de sign re quire ments.
The seal at the threaded end of the as -
sem bly is held in place by force trans mit -
ted from the com pres sion screw, through
the glass bulb and in ter nal parts, onto a
spe cial seal ing spring. Dur ing fire con di -
tions, the heat-sensitive liq uid in the glass
bulb ex pands, caus ing the glass to shat -
ter, re leas ing the in ter nal parts to open the
wa ter way. Wa ter flow ing through the
sprin kler or i fice strikes the sprin kler de -
flec tor, form ing a uni form spray pat tern to
ex tin guish or con trol the fire.
The Vi king Stan dard Re sponse Dry Hor -
i zon tal Side wall Sprin kler may be in -
stalled with the bar rel ex posed (re fer to
Fig ure 4 on page 102 d), or with one of
two es cutch eon styles:
• For re cessed in stal la tions, a re cessed
style es cutch eon with up to 5/8" (15,8
mm) ad just ment (see Fig ure 1 on page
102 b), is avail able.
• For stan dard in stal la tions, the sprin kler
is avail able with an ad just able, sur -
face-mounted es cutch eon, fin ished to
al low up to 2" (50,8 mm) of ad just ment
(see Fig ures 2 and 3 on page 102 c).
Note: Units of mea sure in pa ren the ses may be ap prox i ma tions.
Form No. F_073091
TECH NI CAL DATA
For Light-Hazard Oc cu pancies only.
Both es cutch eon styles slide over the
sprin kler de flec tor, al low ing in stal la tion
of the es cutch eon af ter the wall fin ish is
ap plied.
Vi king Stan dard Re sponse Dry Hor i zon -
tal Side wall Sprin klers are avail able in
1/4" (6,35 mm) in cre ments for the re -
cessed style, and in ½" (12,7 mm) in cre -
ments for the ad just able stan dard es -
cutch eon style, and the plain bar rel
style, in stalled with no es cutch eon.
These sprin klers may be or dered in min -
i mum lengths from 1-1/2" (38,1 mm) for
the ad just able stan dard style, 3" (76,2
mm) for the plain bar rel style, and 3-1/4"
(82,5 mm) for the ad just able re cessed
style. They have list ings and ap prov als
with a max i mum length of 45-1/2" (1 156
mm) for the ad just able stan dard style*,
47" (1 194 mm) for the plain bar rel style*,
and 47-1/2" (1 207 mm) for the ad just -
able re cessed style*.
* Lengths over the stan dard length are avail able, with
no ap prov als, on a "made-to-order" ba sis:
• Re cessed Dry HSW up to 65-1/2" (1 664 mm).
• Ad just able Stan dard Dry HSW up to 63-1/2" (1
613 mm).
• Plain Bar rel Dry HSW up to 65" (1 651 mm).
Con tact the man u fac turer for more in for ma tion.
4. TECH NI CAL DATA
LIST INGS AND AP PROVALS
Re fer to the Ap proval Chart on page 102 d.
Glass-bulb fluid tem per a ture rated to
-65 °F (-55 °C).
Rated to 175 psi (1 207 kPa) wa ter work -
ing pres sure.
Thread Size: 1" NPT or 25 mm BSP
Sprin kler Tem per a ture Nom i nal Sprin kler Temperature
Clas si fi ca tion
Or di nary
In ter me di ate
In ter me di ate
High
1
Based on NFPA-13. Other lim its may ap ply, de pend ing on fire load ing, sprin kler lo ca tion, and
other re quire ments of the Au thor ity Hav ing Ju ris dic tion. Re fer to spe cific in stal la tion stan dards.
2
Frames of dec o ra tive sprin klers are not color coded. Temp. rat ing is stamped on the de flec tor.
Re places sprin kler page 102 a-d, dated Sep tem ber 24, 2004
(up dated max i mum standard dry sprin kler or der lengths).
STAN DARD RE SPONSE
DRY HOR I ZON TAL
SIDE WALL SPRIN KLERS
Min. Op er ating Pres sure: 7 psi (48,3 kPa)
Nom i nal K-Factor: 5.6 U.S. (8,1 met ric**)
for all listed and ap proved lengths.
**Met ric K-fac tor shown is for use when pres sureis
mea sured in kPa. When pres sure in BAR, mul ti ply
K-fac tor shown by 10.0.
Fac tory tested pneu mat i cally at 100 psi
(685 kPa).
De flec tor: U.S.A. Pat ent No. 4,296,816
SPRIN KLER MA TE RIALS
Frame: Brass Cast ings UNS-C84400
De flec tor: Cop per UNS-C19500
Bulb: Glass, nom i nal 5 mm di am e ter
Belleville Spring Sealing As sem bly:
Nickel Al loy, coated on both sides
with Tef lon Tape
Spring Base: Brass UNS-C31400 or
UNS-C31600
Screw: Brass UNS-C36000
Pip Cap:
UNS-C31600
Ejec tor Spring: 17-7 Stain less Steel
Seat: Cop per UNS-C21000
Or i fice: Cop per UNS-C21000
Washer: Stain less Steel UNS-S30400
Gas ket: Buna-N
Tube: ERW Hy drau lic Steel Tube
In let: Brass UNS-C31600
Sup port (In ter nal):
UNS-S30400
Spring (In ter nal):
UNS-S30200
Bar rel: Steel Pipe UNS-G10260, Elec -
tro de pos it ed Ep oxy Base fin ish
Sleeve: (for Ad just able Stan dard style
only): Brass
UNS-C26800
Max i mum Am bi ent
Rat ing (Fusing Point)
155 °F (68 °C)
175 °F (79 °C)
200 °F (93 °C)
286 °F (141 °C)
Ta ble 1
Sprin kler 102 a
Ad just able
Re cessed
Ad just able
Stan dard
Plain
Bar rel
Brass UNS-C31400 or
Stain less Steel
Stain less Steel
UNS-C26000 or
Bulb
Ceiling Temp. 1 2
Color
100 °F (38 °C) Red
150 °F (65 °C) Yel low
150 °F (65 °C) Green
225 °F (107 °C) Blue
