Viking M Technical Data

June 4, 1999
1. PRODUCT NAME
Vi king Model M Quick Re sponse
Ex tended Cov er age Light Haz ard
Ex tra-Large Or i fice Pen dent Sprin kler
Base Part Num ber 08339
•
Avail able since 1993.
•
2. MANUFACTURER
The Vi king Cor po ra tion
210 N. In dus trial Park Road
Hastings, Mich i gan 49058, U.S.A.
Tele phone: (616) 945-9501
(877) 384-5464
Fax: (616) 945-9599
e-mail: techsvcs@vikingcorp.com
3. PRODUCT DESCRIPTION
The Vi king Model M Quick Re sponse
Ex tended Cov er age Light Haz ard Ex -
tra-Large Or i fice (QR-ECLH-ELO) Pen -
dent Sprin kler is a thermosensitive
glass-bulb spray sprin kler equipped with
an ex tra-large or i fice and a spe cial de -
flec tor. The pip-cap and seal ing as sem -
bly of the sprin kler are held in place by a
rug ged, fast-actuating, 3 mm glass bulb.
The sprin kler is listed as a quick re -
sponse sprin kler when in stalled in the
spe cific spac ing, tem per a ture rat ing,
and es cutch eon com bi na tions in di cated
in Ta ble 2 on page 71 d.
The spe cial de flec tor is de signed to
meet Light-Hazard den sity re quire -
ments for spe cif i cally listed ex tended ar -
eas of cov er age when the re quired min i -
mum wa ter sup ply is pro vided at the
sprin kler.
The ex tra-large or i fice pro duces the
flows re quired to meet Light Hazard
den sity re quire ments at lower pres sures
than stan dard or i fice or large or i fice
sprin klers re quire.
Vi king Model M QR-ECLH-ELO Pen -
dent Sprin klers are avail able with fin -
ishes and tem per a ture rat ings to meet
de sign re quire ments. The spe cial Tef -
®
lon and Poly es ter coat ings can be used
in dec o ra tive ap pli ca tions where col ors
are de sired. In ad di tion, these two fin -
ishes are cor ro sion re sis tant and pro -
vide pro tec tion against many cor ro sive
en vi ron ments.
Dur ing fire con di tions, when the tem per -
a ture around the sprin kler reaches its
op er at ing tem per a ture,
heat-sensitive liq uid in the glass bulb ex -
pands, caus ing the bulb to shat ter, re -
leas ing the pip-cap and seal ing spring
as sem bly. The wa ter flow ing through
the sprin kler or i fice strikes the sprin kler
de flec tor, form ing a uni form spray pat -
tern to ex tin guish or con trol the fire.
Note: Units of mea sure in pa ren the ses may be ap prox i ma tions.
Form No. F_051293
TECH NI CAL DATA
4. TECHNICAL DATA
LIST INGS AND AP PROVALS
Re fer to Ta ble 2 on page 71 d.
Glass-bulb fluid tem per a ture rated to
-65 °F (-55 °C).
Rated 175 psi (1,207 kPa) wa ter work -
ing pres sure.
Fac tory tested hy dro stati cally to 500 psi
(3,448 kPa).
Thread size: 3/4" NPT (20 mm BSP)
Or i fice Size: Nom i nal 5/8" (16 mm)
K-Factor: 11.5 (16,6 met ric, for use
when pres sure is mea sured in kPa).
Min i mum op er at ing pres sure: See Ta ble
2 on page 71 d.
Spring: USA Pat ent No. 4,167,974
Bulb: USA Pat ent No. 4,796,710
Sprin kler Nom i nal Sprin kler
Tem per a ture Tem per a ture Rat ing
Clas si fi ca tion (Fusing Point)
Or di nary 135 °F (57 °C)
Or di nary 155 °F (68 °C)
In ter me di ate 175 °F (79 °C)
Sprin kler Fin ishes: Brass, Bright Brass, Chrome-Enloy
Poly es ter Black Poly es ter is also avail able with the 155 °F (68 °C) tem per a ture rat ing
only.
Cor ro sion-resistant Coat ings
avail able with the 155 °F (68 °C) tem per a ture rat ing only.
1
Based on Na tional Fire Pre ven tion and Con trol Ad min is tra tion Con tract No. 7-34860.
2
Based on NFPA-13. Other lim its may ap ply, de pend ing on fire load ing, sprin kler lo ca tion,
and other re quire ments of the Au thor ity Hav ing Ju ris dic tion. Re fer to spe cific in stal la tion
stan dards.
3
The cor ro sion-resistant coat ings have passed stan dard cor ro sion tests re quired by
par tic u lar ap prov ing agen cies. Re fer to the ap proval chart on page 71 d. These tests can-
not and do not rep re sent all pos si ble cor ro sive en vi ron ments. Prior to in stal la tion, ver ify
through the end-user that the coat ings are com pat i ble with or suit able for the pro posed
en vi ron ment. The coat ings in di cated are ap plied to the ex posed ex te rior sur faces only and,
there fore, can not be used as open sprin klers.
NOTE: The spring is ex posed on the Tef lon
MA TE RIALS
Frame: Brass cast ings UNS-C84400
De flec tor: Brass UNS-C26000
Bulb: Glass, nom i nal 3 mm di am e ter
Seal: Tef lon ® Tape
Spring: Nickel Al loy
Pintle Screw: Brass UNS-C36000
Pip Cap: Bronze UNS-C31600
Tef lon ® -Coated Sprin klers:
Spring: Nickel al loy, ex posed
Pintle Screw: Brass UNS-C36000
Painted black for ap pear ance only.
the
Pip Cap: Bronze UNS-C31600, Tef lon
coated
Poly es ter-Coated Sprin klers:
Spring: Nickel al loy, ex posed
Pintle Screw: Brass UNS-C36000
Painted white or black for ap pear ance
only.
Pip Cap: Bronze UNS-C31600
MODEL M QUICK RE SPONSE
EX TENDED COV ER AGE
LIGHT HAZ ARD
EX TRA-LARGE OR I FICE SPRIN KLER

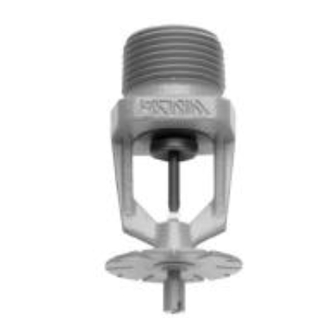

Model M Quick Re sponse
Ex tended Cov er age
Light Haz ard Ex tra-Large Or i fice
Pen dent Sprin kler
Ceil ing Tem per a ture at Sprin kler
Max. Am bi ent Max. Rec om mended
1
Temp. Al lowed Am bi ent Temp.
115 °F (46 °C)
135 °F (57 °C)
155 °F (68 °C)
®
(pat ents pend ing), and White
3 ®
: Black Tef lon and White Poly es ter [Black Poly es ter is also
Foot notes
®
-coated and Poly es ter-coated sprin klers.
Ta ble 1
AC CES SORIES
Sprin kler Wrenches*:
Stan dard ELO wrench: Part No.
•
07297W/B.
Wrench for coated and re cessed
•
ELO
07565W/B.
*A ½"ratchet is re quired (not sup plied by Vi-
king).
AVAIL ABLE FIN ISHES
Chrome-Enloy
Brass, Black Tef lon
®
ter [Black Poly es ter is avail able for the
155 °F (68 °C) tem per a ture-rated sprin -
kler only].
5. AVAILABILITY AND SERVICE
Vi king sprin klers are avail able through a
net work of do mes tic, Ca na dian, and in -
ter na tional dis trib u tors. See the Yel low
Re places sprin kler page 71 a-c, dated May 21, 1998
(added 155 °F (68 °C) Black Poly es ter fin ish op tion).
Sprin kler 71 a
Bulb
Color
2
100 °F (38 °C) Or ange
100 °F (38 °C) Red
150 °F (65 °C) Yel low
sprin klers: Part No.
(pat ents pend ing),
®
, and White Poly es -
®
