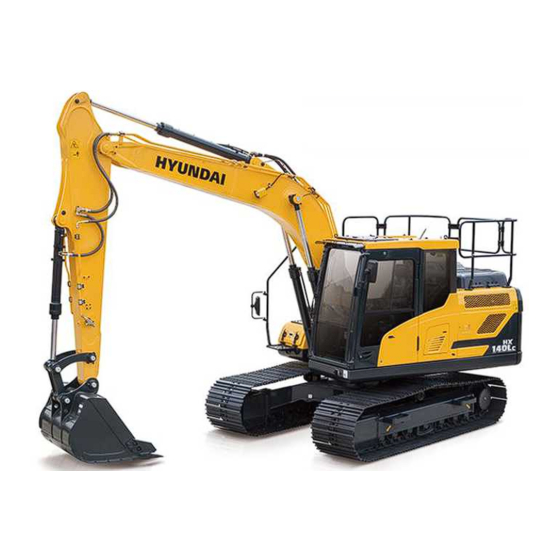

Hyundai HX140 LC Service Manual

Crawler excavator
Hide thumbs

Advertisement

Quick Links

Download this manual
HX140 LC
CRAWLER EXCAVATOR
SERVICE MANUAL

Advertisement

loading

Related Manuals for Hyundai HX140 LC

Summary of Contents for Hyundai HX140 LC

  • Page 1 HX140 LC CRAWLER EXCAVATOR SERVICE MANUAL...

  • Page 2: Table Of Contents

    Table of Content FOREWORD 1. Structure 2. How To Read The Service Manual 3. Conversion Table SECTION 1 GENERAL Group 1 Safety Group 2 Specifications SECTION 2 STRUCTURE AND FUNCTION Group 1 Pump Device Group 2 Main Control Valve Group 3 Swing Device Group 4 Travel Device (std) Travel Device (high Walker, Type 1) Group 5 Rcv Lever...
  • Page 3 Group 10 Intelligent Power Control System Group 11 Anti-restart System Group 12 Self-diagnostic System Group 13 Engine Control System Group 14 Eppr Valve Group 15 Monitoring System Group 16 Fuel Warmer System SECTION 6 TROUBLESHOOTING Group 1 Before Troubleshooting Group 2 Hydraulic And Mechanical System Group 3 Electrical System Group 4 Mechatronics System SECTION 7 MAINTENANCE STANDARD...

  • Page 4: Foreword

    The specifications contained in this shop manual are subject to change at any time and without any advance notice. Contact your HYUNDAI distributor for the latest information. Find manuals at https://best-manuals.com...

  • Page 5: How To Read The Service Manual

    Revised edition mark(①②③…) Any additions, amendments or other changes will When a manual is revised, an edition mark is be sent to HYUNDAI distributors. recorded on the bottom outside corner of the Get the most up-to-date information before you pages.

  • Page 6: Conversion Table

    3. CONVERSION TABLE Method of using the Conversion Table The Conversion Table in this section is provided to enable simple conversion of figures. For details of the method of using the Conversion Table, see the example given below. Example Method of using the Conversion Table to convert from millimeters to inches Convert 55mm into inches.
  • Page 7 Millimeters to inches 1mm = 0.03937in 0.039 0.079 0.118 0.157 0.197 0.236 0.276 0.315 0.354 0.394 0.433 0.472 0.512 0.551 0.591 0.630 0.669 0.709 0.748 0.787 0.827 0.866 0.906 0.945 0.984 1.024 1.063 1.102 1.142 1.181 1.220 1.260 1.299 1.339 1.378 1.417 1.457...
  • Page 8 Liter to U.S. Gallon 1ℓ = 0.2642 U.S.Gal 0.264 0.528 0.793 1.057 1.321 1.585 1.849 2.113 2.378 2.642 2.906 3.170 3.434 3.698 3.963 4.227 4.491 4.755 5.019 5.283 5.548 5.812 6.6076 6.340 6.604 6.869 7.133 7.397 7.661 7.925 8.189 8.454 8.718 8.982 9.246...
  • Page 9 kgf·m to lbf·ft 1kgf·m = 7.233lbf·ft 14.5 21.7 28.9 36.2 43.4 50.6 57.9 65.1 72.3 79.6 86.8 94.0 101.3 108.5 115.7 123.0 130.2 137.4 144.7 151.9 159.1 166.4 173.6 180.8 188.1 195.3 202.5 209.8 217.0 224.2 231.5 238.7 245.9 253.2 260.4 267.6 274.9...
  • Page 10 kgf/cm to lbf/in 1kgf / cm = 14.2233lbf / in 14.2 28.4 42.7 56.9 71.1 85.3 99.6 113.8 128.0 142.2 156.5 170.7 184.9 199.1 213.4 227.6 241.8 256.0 270.2 284.5 298.7 312.9 327.1 341.4 355.6 369.8 384.0 398.3 412.5 426.7 440.9 455.1 469.4...
  • Page 11 TEMPERATURE Fahrenheit-Centigrade Conversion. A simple way to convert a fahrenheit temperature reading into a centigrade temperature reading or vice verse is to enter the accompanying table in the center or boldface column of figures. These figures refer to the temperature in either Fahrenheit or Centigrade degrees. If it is desired to convert from Fahrenheit to Centigrade degrees, consider the center column as a table of Fahrenheit temperatures and read the corresponding Centigrade temperature in the column at the left.

  • Page 12: Section 1 General

    SECTION 1 GENERAL Group 1 Safety Hints -------------------------------------------------------------------------------------------------------- 1-1 Group 2 Specifications ----------------------------------------------------------------------------------------------------- 1-10...

  • Page 13: Group 1 Safety

    SECTION 1 GENERAL GROUP 1 SAFETY FOLLOW SAFE PROCEDURE Unsafe work practices are dangerous. Understand service procedure before doing work; Do not attempt shortcuts. WEAR PROTECTIVE CLOTHING Wear close fitting clothing and safety equipment appropriate to the job. 13031GE01 WARN OTHERS OF SERVICE WORK Unexpected machine movement can cause serious injury.
  • Page 14 PREPARE FOR EMERGENCIES Be prepared if a fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone. 13031GE04 PROTECT AGAINST FLYING DEBRIS Guard against injury from flying pieces of metal or debris;...
  • Page 15 KEEP RIDERS OFF EXCAVATOR Only allow the operator on the excavator. Keep riders off. Riders on excavator are subject to injury such as being struck by foreign objects and being thrown off the excavator. Riders also obstruct the operator's view resulting in the excavator being operated in an unsafe manner.
  • Page 16 SUPPORT MACHINE PROPERLY Always lower the attachment or implement to the ground before you work on the machine. If you must work on a lifted machine or attachment, securely support the machine or attachment. Do not support the machine on cinder blocks, hollow tiles, or props that may crumble under continuous load.
  • Page 17 BEWARE OF EXHAUST FUMES Prevent asphyxiation. Engine exhaust fumes can cause sickness or death. If you must operate in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.
  • Page 18 SERVICE MACHINE SAFELY Tie long hair behind your head. Do not wear a necktie, scarf, loose clothing or necklace when you work near machine tools or moving parts. If these items were to get caught, severe injury could result. Remove rings and other jewelry to prevent electrical shorts and entanglement in moving parts.
  • Page 19 AVOID HEATING NEAR PRESSURIZED FLUID LINES Flammable spray can be generated by heating near pressurized fluid lines, resulting in severe burns to yourself and bystanders. Do not heat by welding, soldering, or using a torch near pressurized fluid lines or other flammable materials.
  • Page 20 PREVENT ACID BURNS Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, eat holes in clothing, and cause blindness if splashed into eyes. Avoid the hazard by: 1. Filling batteries in a well-ventilated area. 2. Wearing eye protection and rubber gloves. 3.
  • Page 21 DISPOSE OF FLUIDS PROPERLY Improperly disposing of fluids can harm the environment and ecology. Before draining any fluids, find out the proper way to dispose of waste from your local environmental agency. Use proper containers when draining fluids. Do not use food or beverage containers that may mislead someone into drinking from them.

  • Page 22: Group 2 Specifications

    GROUP 2 SPECIFICATIONS GROUP 2 SPECIFICATIONS 1. MAJOR COMPONENT 1. MAJOR COMPONENT Tool box DEF/AdBlue tank Fuel tank Hydraulic tank Main pump After treatment device Engine Oil cooler Charge air cooler Radiator Tooth Bucket Turning joint Swing motor Main control valve Guardrail Arm cylinder Boom...
  • Page 23 2. SPECIFICATIONS 2. SPECIFICATIONS 1) 1) HX140 LC, 4.60 HX140 LC, 4.60 m (15' 1") MONO (15' 1") MONO BOOM BOOM I(I') B(L) 140LC2SP02 Unit Specification Boom Description Shoe Operating weight kg (lb) 13955 (30765) 13990 (30843) 14050 (30975) 14090 (31063) Bucket capacity (SAE heaped), standard 0.58 (0.76)
  • Page 24 2) 2) HX140 LC, HX140 LC, 4.10 4.10 m (13' 5") MONO (13' 5") MONO BOOM BOOM I(I') B(L) 140LC2SP02 Unit Boom Description Shoe Operating weight kg (lb) 13900 (30644) 13935 (30721) Bucket capacity (SAE heaped), standard 0.58 (0.76) 0.58 (0.76) Overall length 7325 (24' 1")
  • Page 25 3) 3) HX140 LC, 4.90 HX140 LC, 4.90 m (16' 1") 2-PIECE BOOM (16' 1") 2-PIECE BOOM I(I') B(L) 140LC2SP03 Unit Specification Boom Description Shoe Operating weight kg (lb) 14660 (32320) 14700 (32408) 14760 (32540) Bucket capacity (SAE heaped), standard 0.58 (0.76)
  • Page 26 4) 4) HX140 LC, 4.60 HX140 LC, 4.60 m (15' 1") MONO BOOM AND DOZER BLADE (15' 1") MONO BOOM AND DOZER BLADE I(I') B(L) 140LC2SP04 Unit Specification Boom Description Shoe Operating weight kg (lb) 14770 (32562) 14810(32650) 14870(32783) 14910(32871) Bucket capacity (SAE heaped), standard 0.58 (0.76)
  • Page 27 5) 5) HX140 LC, HX140 LC, 4.10 4.10 m (13' 5") (13' 5") MONO BOOM AND DOZER BLADE MONO BOOM AND DOZER BLADE I(I') B(L) 140LC2SP04 Unit Boom Description Shoe Operating weight kg (lb) 14720(32452) 14760(32540) Bucket capacity (SAE heaped), standard 0.58 (0.76)
  • Page 28 6) 6) HX140 LC, 4.60 HX140 LC, 4.60 m (15' 1") HIGH WALKER (15' 1") HIGH WALKER I(I') B(L) 140LC2SP05 Unit Specification Boom Description Shoe Operating weight kg (lb) 16850 (37148) 16890 (37236) 16950 (37369) 16990 (37457) Bucket capacity (SAE heaped), standard 0.58 (0.76)
  • Page 29 7) 7) HX140 LC, HX140 LC, 4.10 4.10 m (13' 5") (13' 5") HIGH WALKER HIGH WALKER I(I') B(L) 140LC2SP05 Unit Boom Description Shoe Operating weight kg (lb) 16800 (37038) 16840 (37126) Bucket capacity (SAE heaped), standard 0.58 (0.76) 0.58 (0.76) Overall length 7245 (24' 8")
  • Page 30 3. 3. WORKING RANGE WORKING RANGE 1) 1) HX140 LC HX140 LC 4.60 4.60 m (15' 1") MONO (15' 1") MONO BOOM BOOM (1) (1) 140LC2SP06 Description 1.90 m (6' 3") Arm 2.10 m (6' 11") Arm ※2.50 m ( 8' 2") Arm 3.00 m ( 9' 10") Arm Max digging reach 7750 mm (25' 5")
  • Page 31 (2) (2) 4.10 4.10 m (13' 5") MONO (13' 5") MONO BOOM BOOM 140LC2SP06 Description 1.90 m (6' 3") Arm 2.10 m (6' 11") Arm Max digging reach 7250 mm (23' 10") 7420 mm (24' 4") Max digging reach on ground 7080 mm (23' 3") 7250 mm (23'10") Max digging depth...
  • Page 32 (3) (3) 4.90 4.90 m (16' 1") (16' 1") ADJUST BOOM ADJUST BOOM 140LC2SP08 Description 1.90 m (6' 3") Arm 2.10 m (6' 11") Arm 2.50 m ( 8' 2") Arm Max digging reach 8140 mm (26' 8") 8320 mm (27' 4") 8730 mm (28' 7") Max digging reach on ground 7990 mm (26' 3")
  • Page 33 2) 2) HX140 LC HIGH WALKER HX140 LC HIGH WALKER 4.6 m (15' 1") (15' 1") MONO BOOM MONO BOOM (1) (1) 140LC2SP09 Description 1.90 m (6' 3") Arm 2.10 m (6' 11") Arm ※2.50 m ( 8' 2") Arm 3.00 m ( 9' 10") Arm Max digging reach 7750 mm (25' 5")
  • Page 34 4. WEIGHT 4. WEIGHT 1) 1) HX140 LC HX140 LC HX140 LC HX140 LC DOZER BLADE Item Upper structure assembly 5760 12500 ← Main frame weld assembly 1095 2414 ← Engine assembly ← Aftertreatment ← Main pump assembly ← Main control valve assembly ←...
  • Page 35 2) 2) HX140 LC HIGH WALKER HX140 LC HIGH WALKER HX140 LC HIGH WALKER Item Upper structure assembly 5760 12500 Main frame weld assembly 1095 2414 Engine assembly Aftertreatment Main pump assembly Main control valve assembly Swing motor assembly Hydraulic oil tank assembly...
  • Page 36 The difference between the weight of a work tool attachment must be subtracted. Consult your Hyundai dealer regarding the lifting capacities for specific work tools and attachments. Failure to comply to the rated load can cause possible personal injury or property damage.
  • Page 37 Dozer Outrigger Model Type Length Length Weight (kg) Width Front Rear Front Rear HX140 LC Mono 4600 1900 2000 Down : Rating over-front : Rating over-side or 360 degree · · Lift-point radius (B) At max. reach 1.5 m (4.9 ft) 3.0 m (9.8 ft)
  • Page 38 Dozer Outrigger Model Type Length Length Weight (kg) Width Front Rear Front Rear HX140 LC Mono 4600 1900 2000 : Rating over-front : Rating over-side or 360 degree · · Lift-point radius (B) At max. reach 1.5 m (4.9 ft) 3.0 m (9.8 ft)
  • Page 39 Dozer Outrigger Model Type Length Length Weight (kg) Width Front Rear Front Rear HX140 LC Mono 4600 1900 2300 : Rating over-front : Rating over-side or 360 degree · · Lift-point radius (B) At max. reach 1.5 m (4.9 ft) 3.0 m (9.8 ft)
  • Page 40 Dozer Outrigger Model Type Length Length Weight (kg) Width Front Rear Front Rear HX140 LC Mono 4600 2100 2000 Down : Rating over-front : Rating over-side or 360 degree · · Lift-point radius (B) At max. reach 1.5 m (4.9 ft) 3.0 m (9.8 ft)
  • Page 41 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
