- Page 1 IM3192 12/2023 REV01 LF 5D ADVANCED OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland...
-
Page 2: Table Of Contents
12/05 THANK YOU! For choosing the QUALITY of the Lincoln Electric products. Please check packaging and equipment for damage. Claims for material damaged in shipment must be notified immediately to the dealer. For ease of use, please enter your product identification data in the table below. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX LF 5D ADVANCED K14409-1 INPUT Input Voltage U Input Amperes I EMC Class 40Vdc 4Adc RATED OUTPUT Duty Cycle 40°C (based on a 10 min. period) Output Current 100% 420A 500A Welding Current Range Peak Open Circuit Voltage 5 ÷... -
Page 4: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances, if necessary with assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 5: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or equipment damage. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 6 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher easily accessible. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 7: Introduction

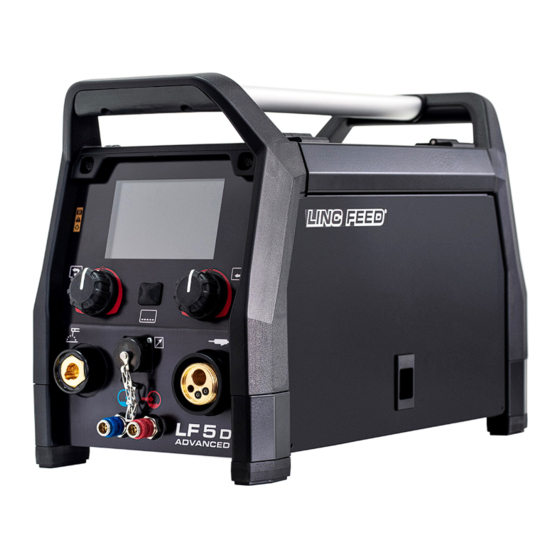

Introduction LF 5D ADVANCED is digital wire feeder for small spool Set of power source and wire feeder allow welding in (max 200mm) which have been designed to work with listed processes: Lincoln Electric power sources: GMAW (MIG/MAG), ... - Page 8 Controls and Operational Features WARNING The machine allows the use all suitable shielding gases with a maximum pressure of 5 bar. 8. Control Socket: pins socket connecting a control cable. The CAN protocol used communication between the power source and wire feeder. 9.
- Page 9 User Interface Advanced (U7) Adjustments of Brake Torque of Sleeve To avoid spontaneous unrolling of the welding wire the sleeve is fitted with a brake. Adjustment is carried by rotation of its screw M10, which is placed inside of the sleeve frame after unscrewing the brake locking nut.
- Page 10 Proper adjustment of drive rolls. pressure arm gives the best welding performance. Wire Feeder LF 5D ADVANCED is equipped with drive WARNING roll V1.0/V1.2 for steel wire. For others wires and sizes it If the roll pressure is too weak, the roll will slide on the is required to install proper drive rolls kit (see wire.
- Page 11 Gas Connection Transport and Lifting WARNING WARNING Falling equipment can cause injury and CYLINDER may explode if damaged. damage to unit. Always fix the gas cylinder securely in an upright position, against a cylinder wall rack or purpose-made cylinder cart. Only use the handle to move the device.
- Page 12 We respond to our customers based on the best warranty information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, Any noticeable damage should be reported immediately and assumes no liability, with respect to such information and repaired.
-
Page 13: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 14: Accessories
Accessories OPTIONS & ACCESSORIES K14204-1 WIRE FEEDER DRUM QUICK CONNECTOR K14175-1 GAS FLOW METER KIT K14203-1 REMOTE CONTROL RC-U7 ADVANCED K10095-1-15M REMOTE CONTROL 6-PINS, 15M K14091-1 REMOTE MIG 7M (CS/PP) K2909-1 6-PIN/12-PIN ADAPTER KP10519-8 ADAPTER TIG EURO E/H-400A-70-5M ELECTRODE HOLDER 400A/70MM² - 5M W000010136 FLAIR ®... - Page 15 W000345076-2 LG PROMIG 500W 4M WATER COOLED W000345077-2 LG PROMIG 500W 5M WATER COOLED W100000297 LINCGUN PROMIG 300 UD 4M AIR COOLED W100000298 LINCGUN PROMIG 500W UD 4M WATER COOLED ROLL KIT FOR SOLID WIRES KP14420-V06/08 ROLL KIT TWIN V0.6-0.8 FI37 KP14420-V08/10 ROLL KIT TWIN V0.8-1.0 FI37 KP14420-V10/12...
-
Page 16: Connection Configuration
Connection configuration 11/23 English English... - Page 17 English English...
- Page 18 English English...
-
Page 19: Dimension Diagram
Dimension Diagram 06/23 English English...
