Summary of Contents for Viking Designer DMOS201

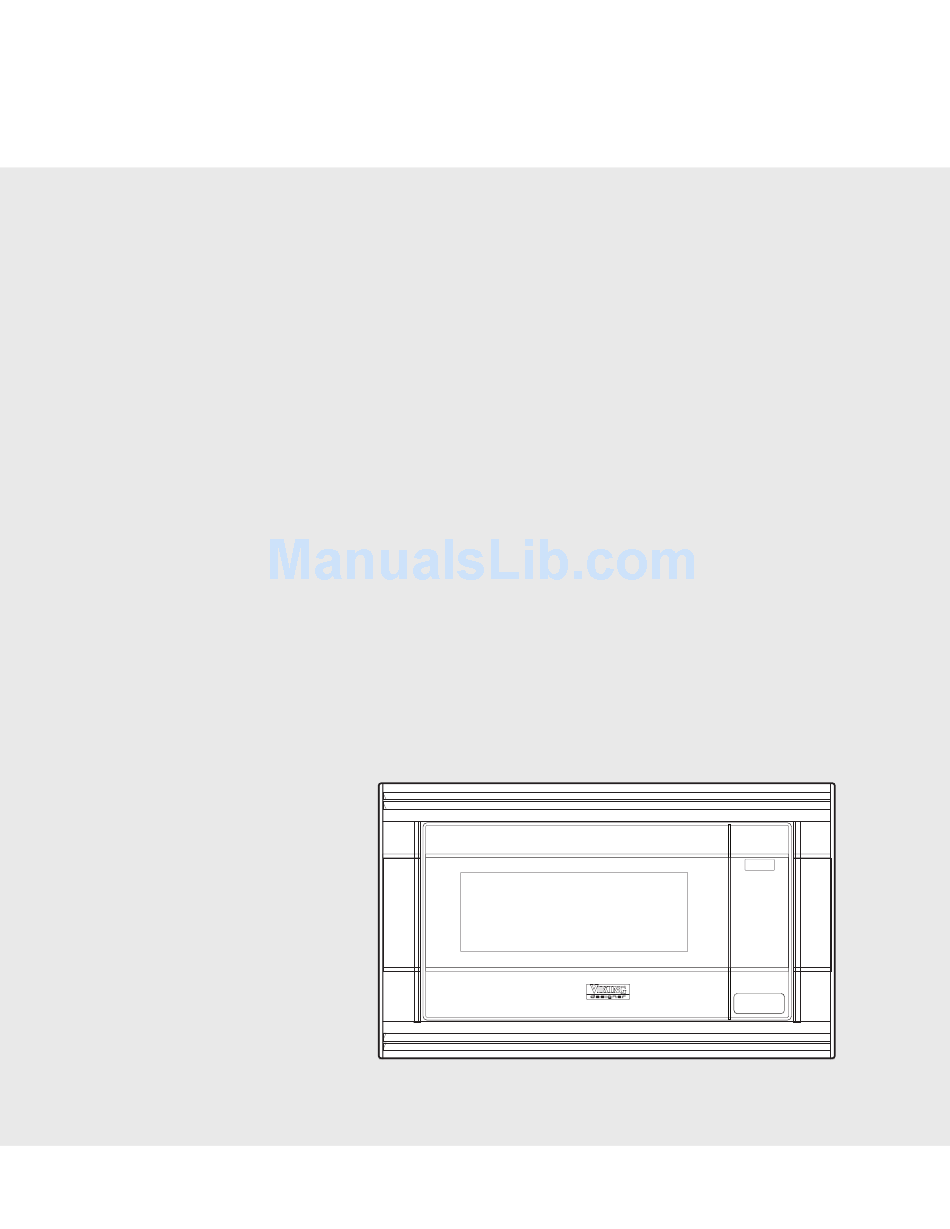

- Page 1 Viking Installation Guide Designer Microwave Built-In Trim Kit...
-
Page 2: Table Of Contents
Before beginning, please read these instructions completely and carefully. Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the built-in trim kit. Remove the turntable from the oven cavity. Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury. -
Page 3: Specifications
– Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter J. – This symbol on the Rating label means the product is listed by Underwriters Laboratories, Inc. for use in USA or Canada. Microwave Oven Built-In Trim Kit DMOS201 DMTK302 (60.9 cm) -
Page 4: General Information
SURFACE MOUNTING TEMPLATE along the Floor Line of the cutout. 4. Remove template from the cabinet. FOR DESIGNER SERIES MICROWAVE OVEN If the Depth (C) dimension is greater than 21" (53.3 cm), the outlet location may be in any 14-1/4" (361.95 mm) 14"... -
Page 5: Installation
Flush Mount Configuration - Microwave Oven and Frame Assembly FLUSH MOUNT CONFIGURATION glass are flush with the cabinet Microwave Oven and Frame Assembly glass are flush with the cabinet. Indicated surfaces are flush. Surface Mount Configuration - Microwave Oven and Frame Assembly SURFACE MOUNT CONFIGURATION protrude from the surface of the cabinet. -
Page 6: Bottom Duct Assembly
Installation Illustration 6 - for Flush Mount Bottom Duct Assembly CENTER THE BOTTOM DUCT SCREW A MAKE BOTTOM FLANGE FLUSH WITH BOTTOM SPACER Illustration 7 - for Surface Mount Place the Bottom Duct in the cabinet opening. For FLUSH MOUNT, it will rest on the bottom spacer centered with the cabinet. -
Page 7: Cabinet Installation
Installation Align the mounting brackets horizontally by sliding them back and forth along the screw slots until the brackets are exactly 27-1/2" apart and equal distance from the cabinet sides. See figure Once the brackets are correctly positioned, securely tighten the four (4) screws B. Cabinet Installation CABINET INSTALL Place the oven adjacent to the wall or cabinet... -
Page 8: Side Decoration Assembly (For Surface Mount Only)
FRAME ASSEMBLY. Secure the side decorations by pressing them firmly against the side of the FRAME ASSEMBLY. See Figure " . Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information...
