IMPORTANT–Please Read and Follow!
• Please read all instructions thoroughly before installing the Convection Microwave Hood. Two people are
recommended to install this product.
• If a new electrical outlet is required, its installation should be completed by a qualified electrician before the
Convection Microwave Hood is installed. See 3 ELECTRICAL GROUNDING INSTRUCTIONS on page 2.

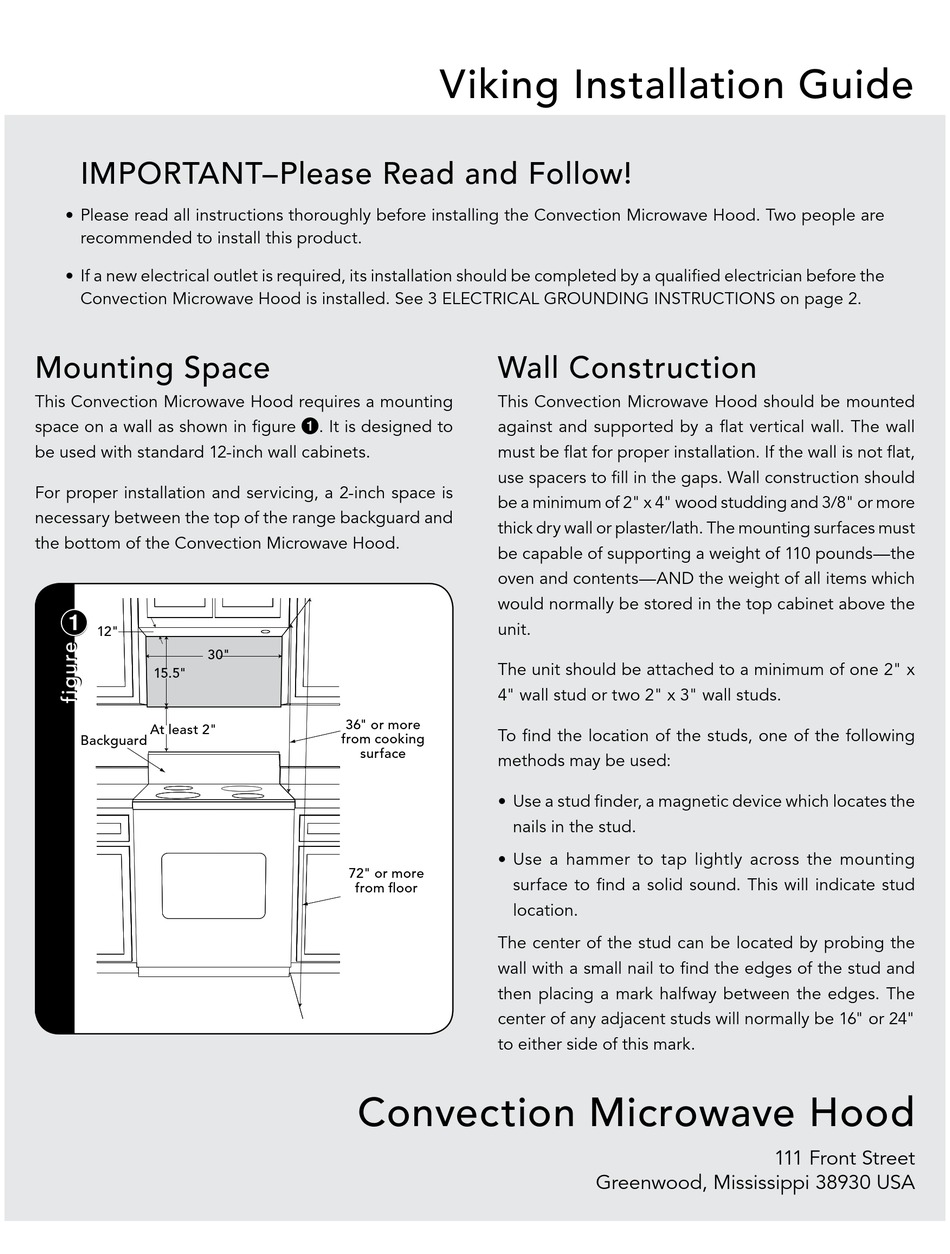

Mounting Space

This Convection Microwave Hood requires a mounting
space on a wall as shown in figure 1. It is designed to
be used with standard 12-inch wall cabinets.
For proper installation and servicing, a 2-inch space is
necessary between the top of the range backguard and
the bottom of the Convection Microwave Hood.
1
12"
30"
15.5"
At least 2"
Backguard
Viking Installation Guide

Wall Construction

This Convection Microwave Hood should be mounted
against and supported by a flat vertical wall. The wall
must be flat for proper installation. If the wall is not flat,
use spacers to fill in the gaps. Wall construction should
be a minimum of 2" x 4" wood studding and 3/8" or more
thick dry wall or plaster/lath. The mounting surfaces must
be capable of supporting a weight of 110 pounds—the
oven and contents—AND the weight of all items which
would normally be stored in the top cabinet above the
unit.
The unit should be attached to a minimum of one 2" x
4" wall stud or two 2" x 3" wall studs.
36" or more
To find the location of the studs, one of the following
from cooking
surface
methods may be used:
• Use a stud finder, a magnetic device which locates the
nails in the stud.
• Use a hammer to tap lightly across the mounting
72" or more
surface to find a solid sound. This will indicate stud
from floor
location.
The center of the stud can be located by probing the
wall with a small nail to find the edges of the stud and
then placing a mark halfway between the edges. The
center of any adjacent studs will normally be 16" or 24"
to either side of this mark.
Convection Microwave Hood
111 Front Street
Greenwood, Mississippi 38930 USA

Advertisement

Table of Contents
loading

Summary of Contents for Viking DMOR206SS

  • Page 1: Mounting Space

    Viking Installation Guide IMPORTANT–Please Read and Follow! • Please read all instructions thoroughly before installing the Convection Microwave Hood. Two people are recommended to install this product. • If a new electrical outlet is required, its installation should be completed by a qualified electrician before the Convection Microwave Hood is installed.
  • Page 2: Electrical Grounding Instructions

    140 feet. electrical instructions, consult a qualified electrician or serviceperson. • Neither Viking nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedures.
  • Page 3: Tools Recommended For Installation

    Tools Recommended for Installation • Phillips Screwdriver • Saw to cut exhaust opening (if needed) • Electric Drill • Protective Drop Cloth for product and range - you may also use carton for protection • 1/2", 5/8" and 3/32" Drill Bits • Scissors • Measure • 1½"...
  • Page 4: Ventilation System

    Ventilation System (Preparing Oven for Installation) This Convection Microwave Hood is designed for adaptation to three types of hood ventilation systems. Hood Fan Unit Select the type required for your installation. REciRculating — non-vented, ductless. Follow installation procedure (A). Recirculating requires the use of the Charcoal Filter, which has been installed in the oven.
  • Page 5 Ventilation System (Preparing Oven for Installation) (C) Vertical Exhaust: Outside Ventilation Fan Cover Bracket • Remove and save 4 screws and fan cover bracket as shown in figure 5. Withdraw hood fan unit. See figure 6. (A) Rotate 90˚ HORIZONTAL EXHAUST: Replace the fan cover bracket. Make sure the fan blades are visible through the rear openings in the oven before proceeding.
  • Page 6: Oven Installation

    Oven Installation THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT notE: REFERRING TO THE MOUNTING INSTRUCTIONS Before insertion, be sure you leave a space more than FOUND ON WALL AND TOP CABINET TEMPLATES. the thickness of the wall between the Mounting Plate and the end of each of the Toggle Nuts (in the closed Mounting Plate position).
  • Page 7 Oven Installation MOUNTING OVEN TO THE WALL: Hang the oven on MOUNTING OVEN TO THE WALL: Using cutting line the lower edge of the mounting plate. Take care that the around the carton, cut into two pieces (A) and (B). power cord is able to clear the edge of the hole as the oven is rotated upward.
  • Page 8: Checklist For Installation

    INSTALLATION HARDWARE, to attach the unit to the top cabinet. Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com F20380 TINSEB505MRR1...
  • Page 9 Viking Instructions d’installation IMPORTANT–S'il vous plaît lisez et suivez! • Veuillez lire toutes les instructions complètement avant d’installer l’excédent Micro-ondes á Hotte et á Convection de gamme. Deux personnes sont recommandées pour installer ce produit. • Si une nouvelle sortie électrique est exigée, son installation devrait être accomplie par un électricien qualifié...
  • Page 10: Conditions Électriques

    électricien ou un serviceperson qualifié. d’air, qui devrait se monter à moins de 140 pieds. • Ni Viking ni le revendeur ne peut accepter n’importe quelle responsabilité pour des dommages au four ou les blessures résultant de l’échec à observent les procédures électriques correctes de raccordement.
  • Page 11: Outils Recommandés Pour L'installation

    Outils recommandés pour l’installation • Tournevis Phillips • Nappe protectrice protectrice pour le produit et la gamme - vous pouvez également employer le carton • Foret Électrique pour la protection • 1/2 po, 5/8 po and 3/32 po peu de foret • Ciseaux • Measure • 1-1/2 po coupeur en bois de trou de peu ou en...
  • Page 12: Système De Ventilation

    Coude de 10 (10 pi.) Chapeau toit (24 pi.) Coude 25˚ (25 pi.) Coude 45˚ (5 pi.) Chapeau mur (40 pi.) Système de ventilation (préparant le four pour l’installation) Cette Micro-ondes á Hotte et á Convection est Unité de conçue pour l’adaptation à trois types de systèmes de Ventilateur res de métal.
  • Page 13 Coude 90˚ (10 pi.) Coude 45˚ (5 pi.) Adaptateur (5 pi.) Pour les armoires de métal. Entoure le passage du cordon d'alimentation.Couper à la longeur voulue. Coude de 10 (10 pi.) Chapeau toit (24 pi.) Système de ventilation (préparant le four pour l’installation) Coude 25˚...
  • Page 14 Installation de Four REMaRQuE: CE FOUR NE PEUT PAS ÊTRE CORRECTEMENT INSTALLÉ SANS SE RAPPORTER AUX INSTRUCTIONS Avant insertion, soyez sûr vous congé un espace plus DE SUPPORT TROUVÉES SUR DES CALIBRES DE que l’épaisseur du mur entre le plat de support et la fin CABINET DE MUR ET DE DESSUS.
  • Page 15 Installation de Four FOUR DE SUPPORT AU MUR : Accrochez le four sur le FOUR DE SUPPORT AU MUR : En utilisant la ligne de bord inférieur du plat de support. Voir le schéma ~. découpage autour du carton, de la coupe dans deux Faites attention que le cordon de secteur puisse dégager morceaux de (A) et (B).
  • Page 16 Cabinet (C) et deux rondelles plates (D), • Maintenez l’opération manuelle. fourni dans le MATÉRIEL d’INSTALLATION, pour attacher l’unité dans le coffret supérieur. Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 Pour plus d’information sur le produit, appeler au 1-888-VIKING1 (845-4641), ou consulter notre site Web à...
  • Page 17 Viking Instrucciones de Instalación IMPORTANTE–Por favor lea y siga! • Lea detenidamente las instrucciones antes de instalar la campana del microondas por convección. Se recomiendan que la instalación de este producto sea realizada entre dos personas. • Si se requiere un tomacorriente eléctrico nuevo, su instalación debe ser realizada por un electricista calificado antes de instalar la campana del microondas por convección.
  • Page 18: Requisitos Eléctricos

    140 • Ni Viking ni el distribuidor pueden aceptar ninguna pies (42.7 m). responsabilidad por los daños al horno o las lesiones personales causadas por no seguir los procedimientos de conexión eléctrica correctos.
  • Page 19: Herramientas Recomendadas Para La Instalación

    Herramientas Recomendadas Para la Instalación • Sierra para cortar el orificio de escape (si es • Destornillador Phillips necesario) • Taladro eléctrico • Paño protector de caídas para el aparato y • Brocas de 1/2", 5/8" y 3/32" el horno - también puede utilizar cartón • Broca de madera de 1-1/2"...
  • Page 20: Sistema De Ventilación

    Tapa de Techo Codo Ancho de 10 (24 pies.) pulgadas (10 pies.) Sistema de Ventilación (Preparación del Horno para su Instalación) Tapa de Pared 90˚ Codo 45˚ Codo (5 pies.) (40 pies.) (25 pies.) Esta Campana del microondas por convección está diseñada para adaptarse a tres tipos de sistemas Unidad de ventilador de la...
  • Page 21 90˚ Codo 45˚ Codo (5 pies.) Adaptador (10 pies.) (5 pies.) Sistema de Ventilación Tapa de Techo (Preparación del Horno para su Instalación) Codo Ancho de 10 (24 pies.) pulgadas (10 pies.) Tapa de Pared 90˚ Codo 45˚ Codo (5 pies.) (40 pies.) (25 pies.) Soporte de la...
  • Page 22: Instalación Del Horno

    Instalación del Horno nota: ESTE HORNO NO PUEDE INSTALARSE APROPIADAMENTE Antes de introducir los tornillos, asegúrese de dejar un SI NO SE CONSULTAN LAS INSTRUCCIONES DE MONTAJE espacio con un espesor mayor al de la pared entre la qUE SE ENCUENTRAN EN LAS PLANTILLAS DE PARED Y placa de montaje y el extremo de cada tuerca acodada DEL GABINETE SUPERIOR.
  • Page 23 Instalación del Horno MONTAjE DEL HORNO A LA PARED: Pase el cable de MONTAjE DEL HORNO A LA PARED: Utilizando la línea alimentación a través del orificio hecho en la parte inferior de corte alrededor de la caja de cartón, corte en dos del gabinete superior.
  • Page 24: Lista De Verificación Para Instalación

    INSTALACIÓN, para fijar la unidad al gabinete superior. Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 EE.UU (662) 455-1200 Para mayor información sobre productos, llame al 1-888-VIKING1 (845-4641) o visite el sitio Web de Viking en vikingrange.com F20380 TINSEB505MRR1...
