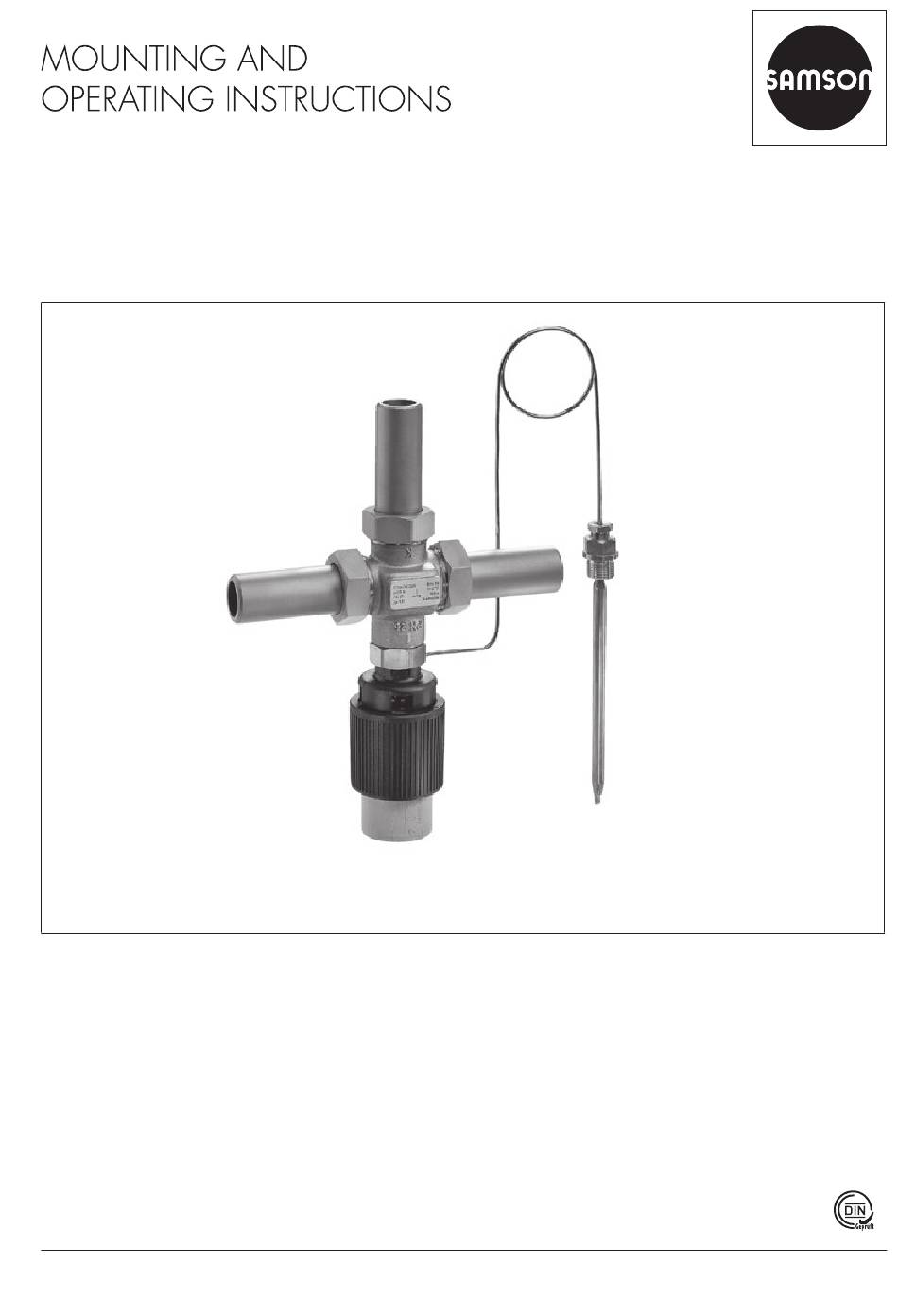

EB 2173 EN Translation of original instructions Type 43-3 Temperature Regulator with Type 2430 Control Thermostat Type 43-3 Temperature Regulator Self-operated Regulators Edition July 2023...
Page 2
Note on these mounting and operating instructions These mounting and operating instructions assist you in mounting and operating the device safely. The instructions are binding for handling SAMSON devices. The images shown in these instructions are for illustration purposes only. The actual product may vary.
Contents Safety instructions and measures ..............1-1 Notes on possible severe personal injury ............1-4 Notes on possible personal injury ..............1-5 Notes on possible property damage .............1-6 Markings on the device ................2-1 Valve nameplate ..................2-1 Nameplate of control thermostat ..............2-1 Location of the nameplate on valve and control thermostat ......2-2 Material identification number ..............2-2 Design and principle of operation ...............3-1 Additional fittings ..................3-3...
Page 4
Ordering spare parts and operating supplies ..........9-4 Decommissioning ..................10-1 Removal ....................11-1 11.1 Removing the control thermostat ..............11-1 11.2 Removing the valve from the pipeline ............11-1 Repairs ....................12-1 12.1 Returning devices to SAMSON ..............12-1 Disposal ....................13-1 Certificates ....................14-1 Annex......................15-1 15.1 Tightening torques ..................15-1 15.2 Tools ......................15-1 15.3 Lubricants ....................15-1...
In case operators intend to use the controllers in applications or condi- tions other than those specified, contact SAMSON. SAMSON does not assume any liability for damage resulting from the failure to use the de- vice for its intended purpose or for damage caused by external forces or any other external factors.
Page 6
Î Check with the plant operator for details on further protective equipment. Revisions and other modifications Revisions, conversions or other modifications of the product are not authorized by SAMSON. They are performed at the user's own risk and may lead to safety hazards, for example. Fur- thermore, the product may no longer meet the requirements for its intended use.
Page 7
Start-up and shutdown procedures fall within the scope of the operator's duties and, as such, are not part of these mounting and operating instructions. SAMSON is unable to make any statements about these procedures since the operative details (e.g. differential pressures and temperatures) vary in each individual case and are only known to the operator.
Safety instructions and measures e.g. Type 2430 Control Thermostat u EB 2430 Type 2403 Safety Temperature Monitor (STM) e.g. u EB 2183 e.g. Type 2439 Safety Temperature Limiter (STL) u EB 2185 e.g. Type 1 NI Strainer u EB 1010 e.g. Type 2 NI Strainer u EB 1015 − Data sheets for Accessories: Double adapter · Manual adjuster · Intermediate insu- e.g.
WARNING Damage to health relating to the REACH regulation. If a SAMSON device contains a substance listed as a substance of very high concern on the candidate list of the REACH regulation, this is indicated on the SAMSON deliv- ery note.
Risk of regulator damage due to the use of unsuitable lubricants. The lubricants to be used depend on the regulator material. Unsuitable lubricants may corrode and damage surfaces. Î Only use lubricants approved by SAMSON. When in doubt, consult SAMSON. EB 2173 EN...
Page 11
Risk of regulator damage due to the use of unsuitable tools. Certain tools are required to work on the regulator. Î Only use tools approved by SAMSON. When in doubt, consult SAMSON. Risk of the process medium being contaminated through the use of unsuitable lubri- cants and/or contaminated tools and components.
Page 12
Î Do not dismantle the regulator. Î Only perform allowed activities on the regulator. Î Contact SAMSON's After-sales Service before replacing spare parts. Note SAMSON's After-sales Service can support you concerning lubricant, tightening torques and tools approved by SAMSON. EB 2173 EN...
Markings on the device 2 Markings on the device 2.1 Valve nameplate 1 Type designation 2 Model number SAMSON 3 Material number and device index 4 Order number or year of manufacture 6 Perm. temperature in °C 7 Pressure rating (valve) 8 Mixing/diverting valve (symbol) Max.
Markings on the device 2.3 Location of the nameplate on valve and control ther- mostat Location of the nameplate Top view Type 2430 Fig. 2-3: Locations of the nameplates on the body 2.4 Material identification number The material is indicated on the body of the Type 2433 Valve.
Design and principle of operation 3 Design and principle of spring. As a result, the temperature set point is changed. operation Depending on its plug arrangement, the Î See Fig. 3-1 three-way valve is either used for mixing or The regulator consists of a Type 2433 Three- diverting service.
Page 16
Design and principle of operation Mixing valve Diverting valve Plug arrangement DN 32 to 50 Mixing valve Diverting valve Valve body Coupling nut Pin of operating 48 Temperature sensor element Seat Set point spring 50 Thermowell (optional) 11 Capillary tube Plug Set point adjuster 51 Packing 12 Operating element...
Î Do not use the strainer to permanently Note filter the process medium. The Type 43-3 Regulator is not a safety Î Select a strainer (mesh size) suitable for valve. If necessary, a suitable overpressure the process medium.
Page 18
Return flow pipe Return flow pipe Flow pipe Flow pipe In the return In the return flow pipe flow pipe Return flow pipe Return flow pipe Fig. 3-2: Arrangement of Type 43-3 Temperature Regulator EB 2173 EN...
'Certificates' section. tion on the regulator version (see the 'Mark- ings on the device' section). Noise emissions SAMSON is unable to make general state- Note ments about noise emissions. The noise emis- More information is available in Data Sheet sions depend on the regulator version, plant u T 2173.
Page 20
Design and principle of operation Table 3-1: Technical data · All pressures in bar (gauge) Type 2433 Three-way Valve Connection Female thread Male thread Connection size ½ ¾ – Valve size – Medium Water coefficient 12.5 Pressure rating PN 25 Max.
Page 21
Design and principle of operation Table 3-3: Dimensions in mm and weights Connec- ½ ¾ – tion Valve size Pipe Ø d 21.3 26.9 33.7 42.4 48.3 60.3 Thread size R G ¾ G 1¼ G 1¾ G 2 ½ –...
Page 22
Ø12(Ø19) Ø9.5(Ø16) Bulb sensor With thermowell With screw gland DN 15 to 50 Threaded ends Welding ends The flanges are already mounted to the valve with flanges in DN 40 and 50. Flanges Fig. 3-3: Dimensions of Type 43-3 EB 2173 EN...
Î Observe the transport instructions. 2. Check the shipment for transportation damage. Report any damage to Transport instructions SAMSON and the forwarding agent Î Protect the regulator against external in- (refer to delivery note). fluences (e.g. impact). 3. Determine the weight and dimensions of Î...
Î Observe the storage instructions. Special storage instructions for elastomers Î Avoid long storage times. Elastomer, e.g. O-rings Î Contact SAMSON in case of different Î We recommend a storage temperature of storage conditions or longer storage 15 °C for elastomers.
Î Contact SAMSON if the mounting posi- Pipeline routing tion is not as specified above. The inlet and outlet lengths vary depending on several variables and process conditions and are intended as recommendations.
Page 26
Note If the sensor is to be used with a thermowell, only use original SAMSON thermowells. Mounting orientation Medium temperature above 110 °C Weld a welding socket with G ½ or G ¾ fe- male thread (to match the screw gland) at the place of installation.
Installation 5.2 Preparation for installation Type 2430 Control Thermostat measured in water. Before mounting, make sure the following Capillary tube conditions are met: Carefully run the capillary tube without − The regulator is clean. bending or twisting it. Avoid locations with −...
Page 28
Return flow pipe pipe Return flow pipe Flow pipe Flow pipe In the return flow pipe In the return Return flow pipe flow pipe Return flow pipe Fig. 5-2: Arrangement of Type 43-3 Temperature Regulator EB 2173 EN...
5. Slowly open the shut-off valves in the NOTICE pipeline after the regulator has been in- Risk of regulator damage due to the use of stalled. unsuitable tools. Î Only use tools approved by SAMSON (see 'Tools' in Annex). EB 2173 EN...
Installation 5.3.2 Cleaning the pipeline 5.4 Testing the regulator We recommend additionally flushing the DANGER pipeline without the installed regulator be- fore start-up. In this case, install a suitable Risk of bursting due to incorrect opening of length of pipe into the pipeline in place of pressurized equipment or components.
Î Wear protective clothing and safety tion. gloves. SAMSON regulators are delivered ready for SAMSON's After-sales Service can support use. To test the regulator functioning before you to plan and perform a leak test for your start-up or putting back the regulator into plant.
The The plant operator is responsible for per- regulator must not yet be insulated at this forming the pressure test. SAMSON's Af- stage. ter-sales Service can support you to plan and perform a pressure test for your plant.
Start-up 6 Start-up NOTICE NOTICE The work described in this section is to be Risk of overheating due to excessive performed only by personnel appropriately ambient temperatures or insufficient heat qualified to carry out such tasks. dissipation when components are insulated. −...
Start-up 6.1 Start-up and putting the device back into operation 1. Depending on the field of application, allow the regulator to cool down or warm up to reach ambient temperature before start up. 2. Slowly open the shut-off valves in the pipeline.
Operation 7 Operation 7.1 Adjusting the temperature set point Immediately after completing start-up or placing the regulator back into service (see Adjust the required set point by turning the the 'Start-up' section), the regulator is ready set point adjuster (43) by hand. The adjust- for use.
Page 36
Operation Type 43-3 Set point ranges for G ½ to G 1 and Set point ranges for DN 32 to 50 DN 15 to 25 with sensor Ø9.5 mm with sensor Ø 16 mm °C °C 70…150 70…150 50…120 50…120 40…100 40…100 25…70 25…70 0…35 0…35 Scale marking 1)
Possible reasons Recommended action Î Clean the seat and plug. Seat and plug are worn or leak. Î Contact SAMSON's After-sales Service. Î Remove foreign particles. Foreign particles blocking the plug Î Contact SAMSON's After-sales Service. Sensor installed in the wrong location.
Page 38
Î Check the sizing. Loud flow-induced noise Î Install larger regulator, if necessary. Leak between control thermostat Valve seal defective Î Contact SAMSON's After-sales Service. and valve Note Contact SAMSON's After-sales Service for malfunctions not listed in the table. EB 2173 EN...
Possible reasons Recommended action Î Clean the seat and plug. Seat and plug are worn or leak. Î Contact SAMSON's After-sales Service. Î Remove foreign particles. Foreign particles blocking the plug Î Contact SAMSON's After-sales Service. Sensor installed in the wrong location.
Page 40
Î Check the sizing. Loud flow-induced noise Î Install larger regulator, if necessary. Leak between control thermostat Valve seal defective Î Contact SAMSON's After-sales Service. and valve Note Contact SAMSON's After-sales Service for malfunctions not listed in the table. EB 2173 EN...
3. Rectify those malfunctions that can be remedied based on the instructions pro- vided here. Contact SAMSON's Af- SAMSON's After-sales Service can support ter-sales Service in all other cases. you in drawing up an inspection and test plan for your plant.
Servicing 9 Servicing WARNING The regulator does not require much mainte- Risk of burn injuries due to hot or cold nance. Nevertheless, it is subject to natural components and pipeline. wear, particularly at the seat, plug and con- Regulator components and the pipeline may trol thermostat.
Risk of regulator damage due to the use of unsuitable tools. 1. Lay out the necessary material and tools Î Only use tools approved by SAMSON to have them ready for the service work. (see 'Tools' in Annex). 2. Put the regulator out of operation (see the 'Decommissioning' section).
Page 45
Servicing Mixing valve Diverting valve Plug arrangement DN 32 to 50 Mixing valve Diverting valve Valve body Coupling nut Pin of operating 48 Temperature sensor element Seat Set point spring 50 Thermowell (optional) 11 Capillary tube Plug Set point adjuster 51 Packing 12 Operating element Plug stem Operating bellows...
9.5 Ordering spare parts and operating supplies Contact your nearest SAMSON subsidiary or SAMSON's After-sales Service for infor- mation on spare parts, lubricants and tools. Spare parts Contact SAMSON's After-sales Service for more information on spare parts.
Decommissioning 10 Decommissioning WARNING The work described in this section is to be Risk of personal injury due to pressurized performed only by personnel appropriately components and process medium being qualified to carry out such tasks. discharged. Î Do not loosen the external control line while the valve is pressurized.
Page 48
Decommissioning To decommission the regulator for service work or disassembly, proceed as follows: 1. Close the shut-off valves in the flow pipe and return flow pipe. 2. Close any shut-off valve installed on the downstream and upstream side of the sensor if a thermowell is not used.
Removal 11 Removal 11.1 Removing the control ther- mostat The work described in this section is to be performed only by personnel appropriately 1. Pull the sensor out of the thermowell. In qualified to carry out such tasks. cases where a thermowell is not used, unscrew the screw gland and pull out the WARNING sensor.
Î Do not perform any repair work on your & Support > After-sales Service. own. After checking your registration, we will Î Contact SAMSON's After-sales Service send you a return merchandise authori- for service and repair work. zation (RMA). 3. Attach the RMA (together with the Decla- 12.1 Returning devices to...
Disposal 13 Disposal SAMSON is a producer registered at the following European institution u https:// www.ewrn.org/national- registers/national-registers. WEEE reg. no.: DE 62194439/FR 025665 Î Observe local, national and internation- al refuse regulations. Î Do not dispose of components, lubricants and hazardous substances together with your other household waste.
Certificates 14 Certificates The following certificates are included on the next pages: − DVGW type examination certificate, on page 14-2. − Tested according to DIN EN 14597: 2015-02 on page 14-4. EB 2173 EN 14-1...
Tightening torque in Nm Coupling nut (40) SW 36 15.2 Tools SAMSON's After-sales Service can support you concerning tools approved by SAMSON. 15.3 Lubricants SAMSON's After-sales Service can support you concerning lubricants and sealants ap- proved by SAMSON. 15.4 Spare parts and accessories SAMSON's After-sales Service can support you concerning spare parts approved by SAMSON.
E-mail address You can reach our after-sales service at aftersalesservice@samsongroup.com. Addresses of SAMSON AG and its subsid- iaries The addresses of SAMSON, its subsidiaries, representatives and service facilities worldwide can be found on our website (u www.samsongroup.com) or in all...
