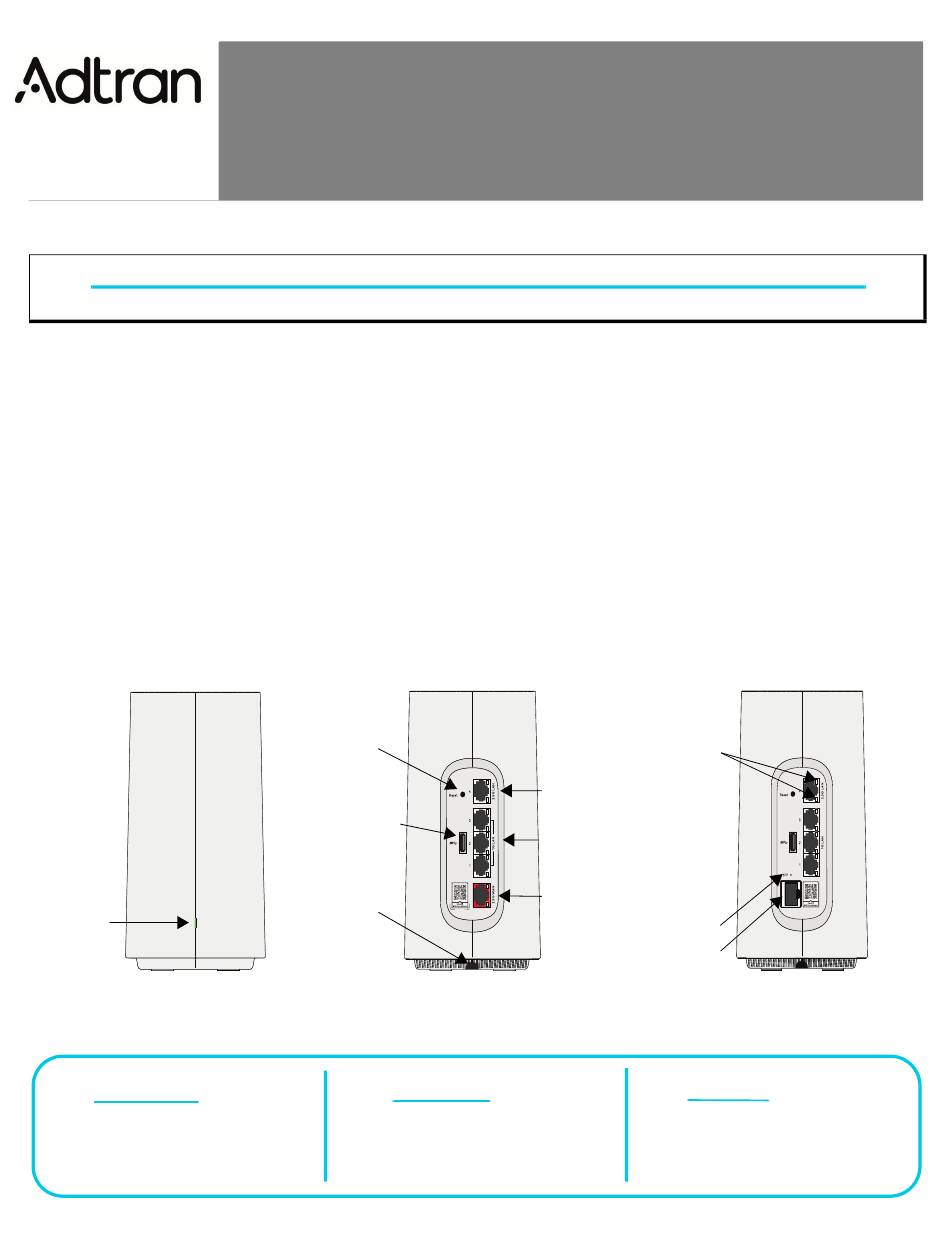

ADTRAN 8612 Quick Start Manual

Quick Start
Guide
Overview
f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
The SDG-8612 and SDG-8614 are carrier-class, dual-band, Wi-Fi 6 2.5G Routers designed to deliver top-end Wi-Fi 6 performance, multi-gigabit
throughput, and advanced service delivery capabilities.
Features
The features of the SDG-8612 and SDG-8614 include the following:
■ WAN
♦ 1x 2.5 Gigabit Ethernet Interface (RJ-45) (SDG-8612 only)
♦ 1x SFP+ Cage (SDG-8614 only)
■ 1x 2.5 Gigabit Ethernet LAN interface (RJ-45)
■ 3x Gigabit Ethernet LAN interfaces (RJ-45)
■ USB 3.0 host port (Type A)
This quick start describes how to install and connect to the device.
■ "Installing the SDG-8612 and SDG-8614 Router"
■ "Understanding the Status LEDs"
■ "Logging Into the SDG-8612 and SDG-8614"
■ "Product Specifications"
■ "Safety and Regulatory"
Multi-function
Status LED
SDG-8612 and SDG-8614 Front View
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
8612 and 8614 Service Delivery Gateways
Wi-Fi 6 2.5G Router
October 2023
6SDG861214-13A
on page 2
on page 4
on page 5
on page 5
on page 6
Reset Button
USB 3.0 Host Port
Routing Hole
for Power
Cable

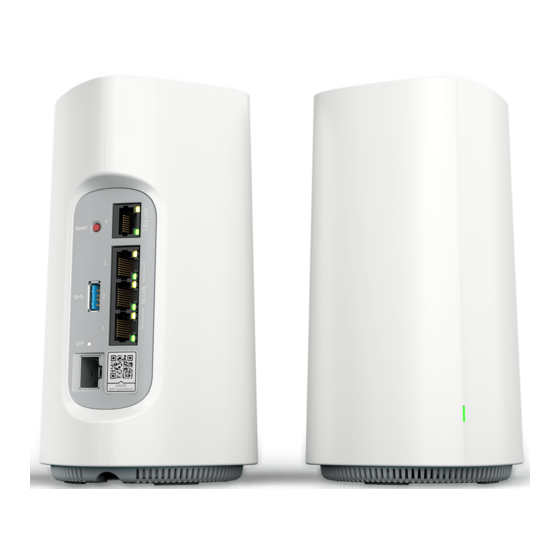

Figure 1. SDG-8612 and SDG-8614 Router
f
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
P/N: 17600070FxS, 17600070FxPD, 17600070FxPP
17600071FxS, 17600071FxPD, 17600071FxPP
1x 2.5G LAN Interface
3x 1G LAN Interfaces
2.5G WAN Interface
SDG-8612 Back View
CAUTION!
Ethernet Status LEDs
SFP Status LED
SFP+ Cage
SDG-8614 Back View
g
NOTE
NOTES inform the user of additional, but
important, information or features.
