ADTRAN 834-v6 Quick Start Manual

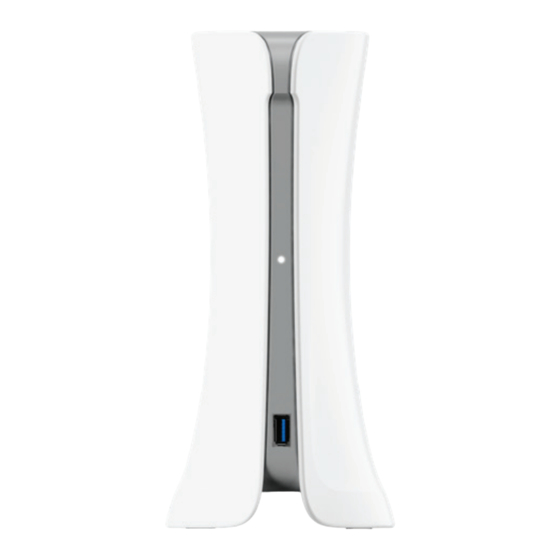

Service delivery gateway wi-fi 6 gigabit router
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

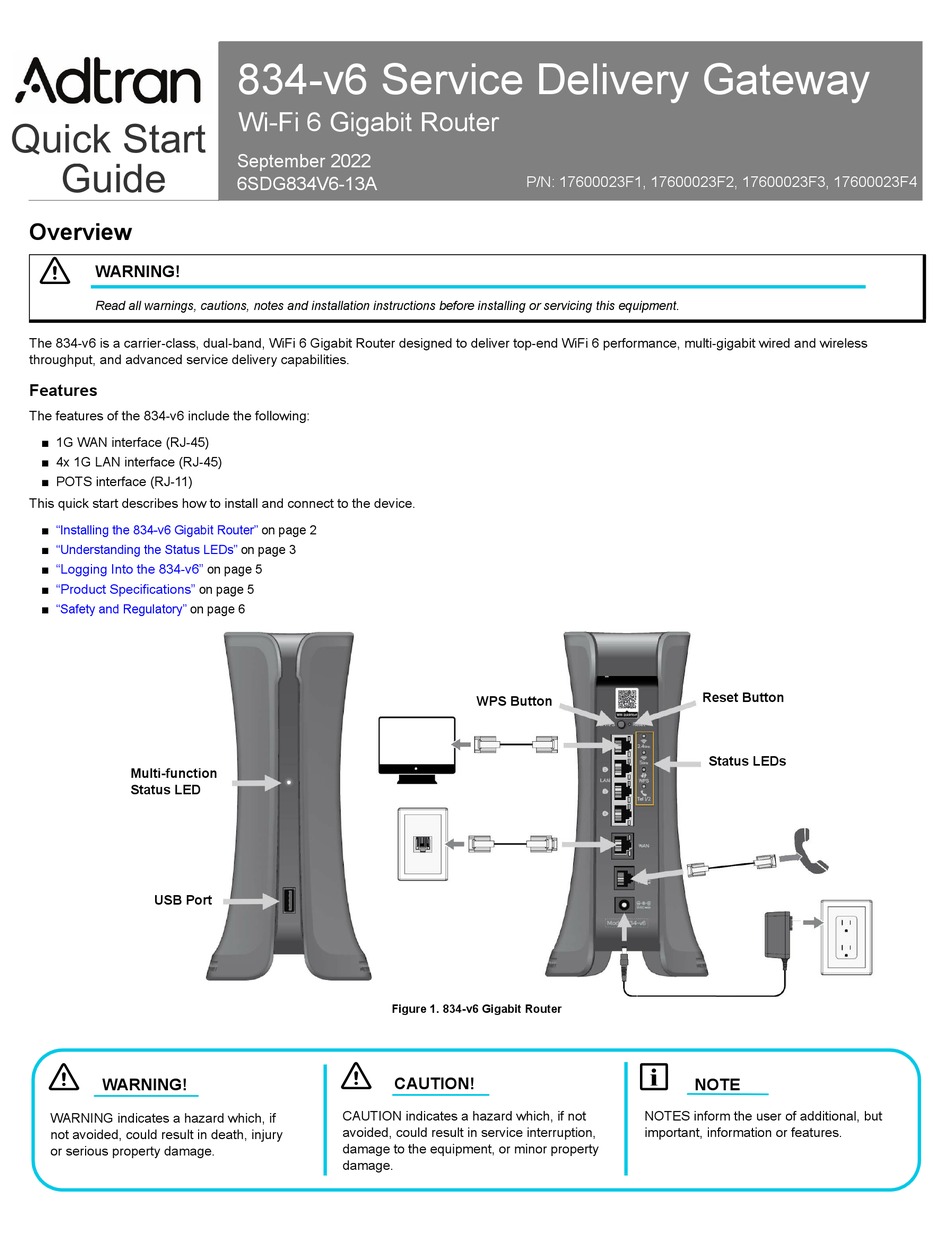

Quick Start
Guide
Overview
f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
The 834-v6 is a carrier-class, dual-band, WiFi 6 Gigabit Router designed to deliver top-end WiFi 6 performance, multi-gigabit wired and wireless
throughput, and advanced service delivery capabilities.
Features
The features of the 834-v6 include the following:
■ 1G WAN interface (RJ-45)
■ 4x 1G LAN interface (RJ-45)
■ POTS interface (RJ-11)
This quick start describes how to install and connect to the device.
■
"Installing the 834-v6 Gigabit Router"
■
"Understanding the Status LEDs"
■
"Logging Into the 834-v6"
■
"Product Specifications"
■
"Safety and Regulatory"
Multi-function
Status LED
USB Port
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
834-v6 Service Delivery Gateway
Wi-Fi 6 Gigabit Router
September 2022
6SDG834V6-13A
on page 2
on page 3
on page 5
on page 5
on page 6
f
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
P/N: 17600023F1, 17600023F2, 17600023F3, 17600023F4
WPS Button
Figure 1. 834-v6 Gigabit Router
CAUTION!
Reset Button
Status LEDs
g
NOTE
NOTES inform the user of additional, but
important, information or features.

Advertisement

Table of Contents
loading

Related Manuals for ADTRAN 834-v6

Summary of Contents for ADTRAN 834-v6

  • Page 1 Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment. The 834-v6 is a carrier-class, dual-band, WiFi 6 Gigabit Router designed to deliver top-end WiFi 6 performance, multi-gigabit wired and wireless throughput, and advanced service delivery capabilities.
  • Page 2 No special tools are required for installing the 834-v6. Mounting Options There are two options to install the 834-v6: desktop and wall mount. Be sure to route and secure the cables in a manner that will prevent damage. These options are described below.

  • Page 3: Understanding The Status Leds

    Resetting the SDG A reset button is available if the 834-v6 needs to be rebooted or restored to factory defaults. To reboot the 834-v6, press the Reset button on the back panel of the device for less than 5 seconds. To reset the device to factory defaults, press the Reset button for 5 seconds or more.

  • Page 4: Wps Status Led

    The SDG product line can ship with two possible firmware options: PlumeOS and SmartOS. Quick setup instructions of WiFi and connection to the Internet for your 834-v6 will vary based on which OS is installed on the device. Confirm whether your 834-v6 is deployed with SmartOS firmware or PlumeOS firmware, then choose accordingly from the following options.

  • Page 5: Product Specifications

    Electrical ■ Power is provided by a 12V DC power adapter that is included with the 834-v6. The power adapter operates from a power source of 100 to 240V AC, 50 - 60 Hz. The nominal output is 12V DC ±5 % with a minimum current rating of 2.5 Amps. For US and Canadian applications, a UL Listed limited power source (LPS) is supplied and required for use.

  • Page 6: Safety And Regulatory

    ■ This equipment contains no parts that can be serviced by the user. ■ This product meets EU RoHS Directive. Refer to www.adtran.com/environmental for further information on RoHS/WEEE. ■ This product is NRTL Safety Listed to the applicable UL/CSA Standards.

  • Page 7: Fcc Requirements For Operation In The United States

    Canadian Department of Communications Radio Interference Regulations This digital apparatus (Wi-Fi 6 Gigabit Router Model 834-v6) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 8 For Adtran training inquiries, visit: https://adtran.com/training http://adtran.com/sdg-info Adtran CUSTOMER CARE: Warranty: Adtran will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can From within the U.S. 1.888.423.8726 be found online at https://adtran.com/warranty.
