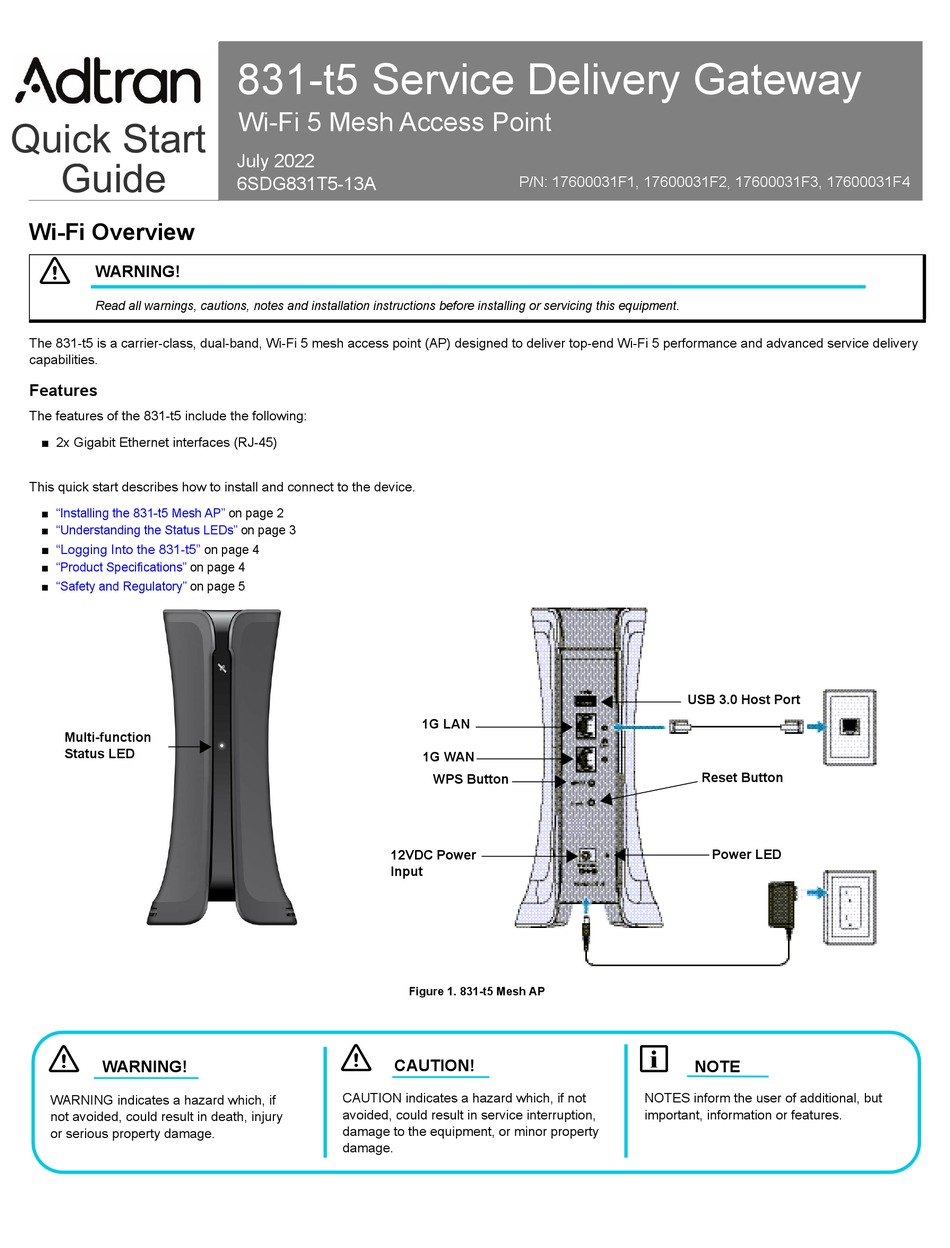

Quick Start
Guide
Wi-Fi Overview
f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
The 831-t5 is a carrier-class, dual-band, Wi-Fi 5 mesh access point (AP) designed to deliver top-end Wi-Fi 5 performance and advanced service delivery
capabilities.
Features
The features of the 831-t5 include the following:
■ 2x Gigabit Ethernet interfaces (RJ-45)
This quick start describes how to install and connect to the device.
■
"Installing the 831-t5 Mesh AP"
■
"Understanding the Status LEDs"
■
"Logging Into the 831-t5"
■
"Product Specifications"
■
"Safety and Regulatory"
Multi-function
Status LED
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
831-t5 Service Delivery Gateway
Wi-Fi 5 Mesh Access Point
July 2022
6SDG831T5-13A
on page 2
on page 3
on page 4
on page 4
on page 5
f
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
P/N: 17600031F1, 17600031F2, 17600031F3, 17600031F4
1G LAN
1G WAN
WPS Button
12VDC Power
Input

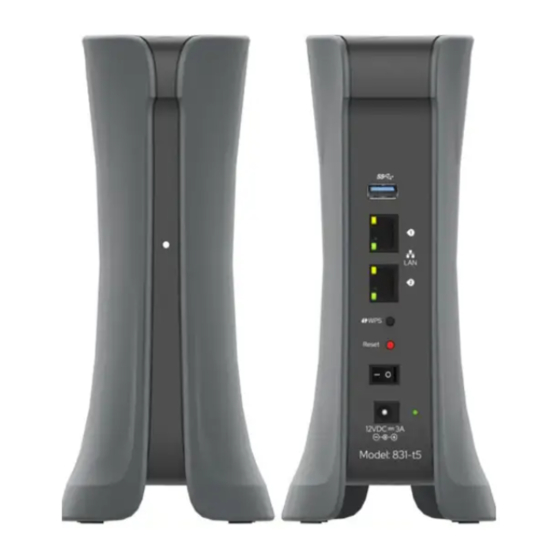

Figure 1. 831-t5 Mesh AP
CAUTION!
USB 3.0 Host Port
Reset Button
Power LED
g
NOTE
NOTES inform the user of additional, but
important, information or features.
Advertisement
Related Manuals for ADTRAN 831-t5
Summary of Contents for ADTRAN 831-t5
- Page 1 WARNING! Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment. The 831-t5 is a carrier-class, dual-band, Wi-Fi 5 mesh access point (AP) designed to deliver top-end Wi-Fi 5 performance and advanced service delivery capabilities. Features The features of the 831-t5 include the following: ■...
- Page 2 No special tools are required for installing the 831-t5. Mounting Options There are two options to install the 831-t5: desktop and wall mount. Be sure to route and secure the cables in a manner that will prevent damage. These options are described below.
-
Page 3: Understanding The Status Leds
Resetting the Device A reset button is available if the 831-t5 needs to be rebooted or restored to factory defaults. To reboot the 831-t5, press the Reset button on the back panel of the device for less than 5 seconds. To reset the device to factory defaults, press the Reset button for 5 seconds or more. -
Page 4: Product Specifications
Electrical ■ Power is provided by a 12V DC power adapter that is included with the 831-t5. The power adapter operates from a power source of 100 to 240V AC, 50 - 60 Hz. The nominal output is 12V DC ±5% with a minimum current rating of 3.0 Amps. For US and Canadian applications, a UL Listed limited power source (LPS) is supplied and required for use. -
Page 5: Safety And Regulatory
■ This equipment contains no parts that can be serviced by the user. ■ This product meets EU RoHS Directive. Refer to www.adtran.com/environmental for further information on RoHS/WEEE. ■ This product is NRTL Safety Listed to the applicable UL/CSA Standards. - Page 6 Canadian Department of Communications Radio Interference Regulations This digital apparatus (Wi-Fi 5 Mesh Access Point Model 831-t5) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
- Page 7 For Adtran training inquiries, visit: https://adtran.com/training https://adtran.com/sdg-info Adtran CUSTOMER CARE: Warranty: Adtran will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can From within the U.S. 1.888.423.8726 be found online at https://adtran.com/warranty-terms.
