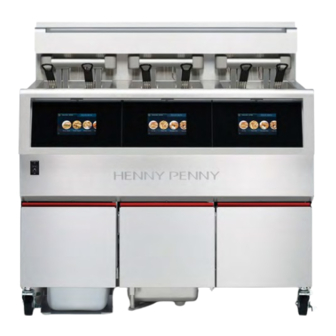

FRYERS
Henny Penny Corp.
Open Fryer - Electric
LVE 30X
Cross reference (optional)
Daily maintenance tasks
FR 25D01
Maintenance Filter
& Fryer Vat
Cleaning
Weekly maintenance tasks
FR 25W01
Clean Behind
Fryer
Quarterly maintenance tasks
FR 25Q01
Check Filter
System O-Rings
FR 25Q02
Deep Clean
Annual maintenance tasks
FR 25A1-T
Inspection
FM08-719A
©McDonald's Corporation · Planned Maintenance Manual · Revised August 2020
Model LVE 30X
Hazards
These icons alert you to a possible risk of personal injury.
Equipment alerts
Look for this icon to find information about how to avoid damaging the
equipment while doing a procedure.
Tips
Look for this icon to find helpful tips about how to do a procedure.
FR 25
Advertisement
Related Manuals for Henny Penny LVE 30 Series
Summary of Contents for Henny Penny LVE 30 Series
- Page 1 FR 25 FRYERS Henny Penny Corp. Open Fryer - Electric LVE 30X Cross reference (optional) Daily maintenance tasks Model LVE 30X FR 25D01 Maintenance Filter & Fryer Vat Cleaning Weekly maintenance tasks FR 25W01 Clean Behind Fryer Quarterly maintenance tasks...
