00809-0800-2410, Rev AB
August 2023

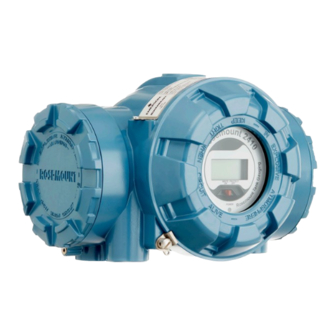

Rosemount
™
2410 Tank Hub
Sakura emulation instruction

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 2410

Summary of Contents for Emerson Rosemount 2410

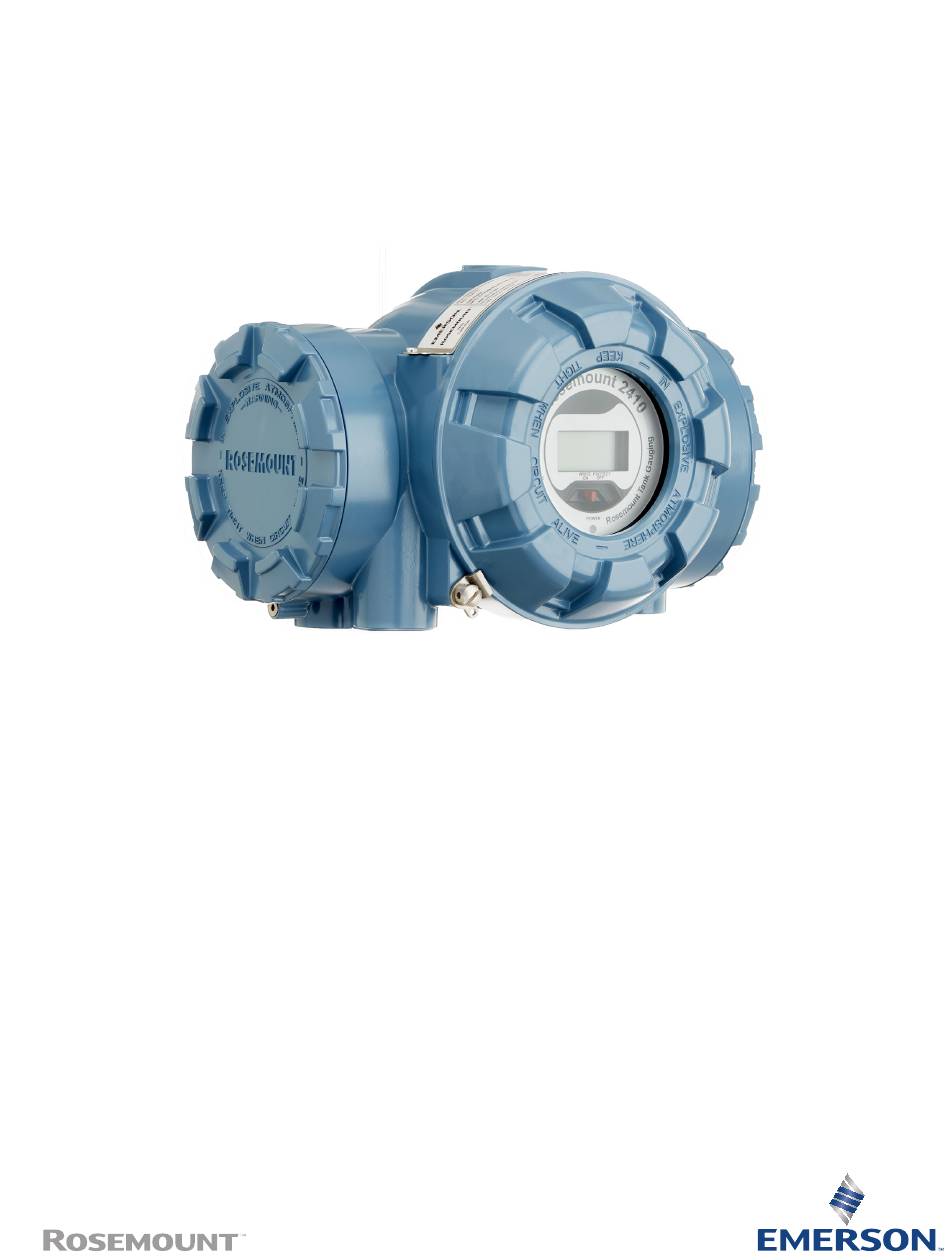

  • Page 1 Manual Supplement 00809-0800-2410, Rev AB August 2023 Rosemount ™ 2410 Tank Hub Sakura emulation instruction...

  • Page 3: Table Of Contents

    Electrical installation......................11 2.1 Rosemount 2410 Tank Hub connections................11 Chapter 3  Configuration.......................... 13 3.1 Set up Modbus communication protocol................13 3.2 Install Rosemount 2410 Tank Hub in WinSetup..............14 3.3 Configure specific variables for emulation................16 3.4 Verify Sakura communication parameters................18 3.5 Start Sakura emulation......................18 Chapter 4 ...
  • Page 4 Contents Manual Supplement August 2023 00809-0800-2410 Emerson.com/Rosemount...

  • Page 5: Chapter 1 Introduction

    The purpose of this document is to provide guidelines on how to change from other manufacturer’s devices to Rosemount equipment by exchanging gauges. When a gauge is replaced with a Rosemount gauge, it is necessary to configure the Rosemount 2410 Tank Hub for emulation.

  • Page 6: Emulation Capabilities

    Rosemount field device, the tank hub will act as a slave answering requests and sending data upwards towards the host. A stepwise “bottom-up” upgrade is done by replacing legacy gauges to begin with, and changing the complete control system at a later occasion. Figure 1-2: Tank Hub Slave Emulation Emerson.com/Rosemount...

  • Page 7: Sakura System Characteristics

    ✓ Alarm status ✓ ✓ Observed density ✗ ✓ Maximum 3 tank positions. Tank hub version “Multiple tanks” can emulate up to 10 tanks (10 gauges). Tank hub version “Single tank” can emulate up to 2 tanks (2 gauges). Emerson.com/Rosemount...

  • Page 8: Rosemount 2410 Tank Hub Communication

    TRL2 Modbus ® , RS485 Modbus, emulation, or wireless communication. Support for Sakura emulation is selected in the model code, refer to Rosemount 2410 Product Data Sheet for more information. There are two alternatives available for Sakura emulation: •...
  • Page 9 The Emerson Wireless THUM ™ Adapter acts as a wireless data link between the tank hub and an Emerson Wireless Gateway. The tank hub can simultaneously combine wireless and Sakura communication. The primary field bus communicates via Sakura MDP/V1, and the secondary field bus via WirelessHART.
  • Page 10 Introduction Manual Supplement August 2023 00809-0800-2410 Emerson.com/Rosemount...

  • Page 11: Chapter 2 Electrical Installation

    Manual Supplement Electrical installation 00809-0800-2410 August 2023 2  Electrical installation 2.1  Rosemount 2410 Tank Hub connections Figure 2-1: Terminal Block in the Explosion-Proof/Flameproof Compartment A. Primary field bus B. Secondary field bus Table 2-1: Terminal Assignment for Non-Intrinsically Safe Side Terminal Designation...
  • Page 12 Electrical installation Manual Supplement August 2023 00809-0800-2410 Emerson.com/Rosemount...

  • Page 13: Chapter 3 Configuration

    00809-0800-2410 August 2023 3  Configuration The Rosemount 2410 Tank Hub is configured by using the TankMaster WinSetup configuration program . WinSetup is a user-friendly software package that includes basic configuration options as well as advanced configuration and service functions. Configuration of the Rosemount 2410 emulation function can be performed with the WinSetup program using the FBM or a RS485 converter, depending on the tank hub configuration.

  • Page 14: Install Rosemount 2410 Tank Hub In Winsetup

    7. Select OK to store the current configuration and close the configuration window. 3.2  Install Rosemount 2410 Tank Hub in WinSetup The TankMaster WinSetup wizard is the recommended tool for installing the tank hub. The installation wizard manages basic configuration of the tank hub.
  • Page 15 4. Type a name in the 2410 HUB Tag field. The 2410 Hub Tag will be used as an identifier for the tank hub in various windows and dialogs. 5. Select Next. The 2410 Tank Hub Communication window opens. 6. Ensure TankMaster communicates directly with the tank hub and that the proper communication channel is chosen. Emerson.com/Rosemount...

  • Page 16: Configure Specific Variables For Emulation

    1. In the TankMaster WinSetup workspace window, right click the tank hub device icon. 2. To view the holding registers, select the View Holding Registers option. Note When replacing a Sakura gauge with a Rosemount device, the Rosemount device must have the same Sakura address as the gauge being replaced. Emerson.com/Rosemount...
  • Page 17 Valid Sakura MDP addresses are 0-255, and valid Sakura V1 addresses are 0-99. In the Tank Database tab, set the Modbus address to the same as the chosen Sakura address for each device. Emulation address is by default set to “65535” for tank positions that are not in use. Emerson.com/Rosemount...

  • Page 18: Verify Sakura Communication Parameters

    Start bit Stop bits Procedure 1. In the TankMaster WinSetup workspace window, right click the Rosemount 2410 icon and select Properties. 2. Select the Configuration tab, and continue by selecting the Secondary Bus button. 3. Check that the modem is detected and that the correct communication parameters are configured.

  • Page 19: Chapter 4 Troubleshooting

    Verify that communication is working properly by checking the input registers as described Table 4-2. See Table 4-3 for troubleshooting actions. Table 4-2: Messages Input Registers Register number Input register Description 1256 RecMessages Total queries received 1258 MessagesToMe Number of received queries addressed to me 1260 SentMessages Number of sent messages Emerson.com/Rosemount...
  • Page 20 Sakura cables are properly connected • The tank hub is in Sakura mode Input register MessagesToMe does not Check that the Sakura address is correct enumerate Input register SentMessages does not enumerate Check that the host is sending proper requests Emerson.com/Rosemount...

  • Page 21: Optional Configuration And Settings

    (recommended). To change the bus baud rate, write the desired baud rate to the value field. Figure 5-1 shows an example where holding register Sakura_BaudRate (1217) is set to value 0. The automatic baud rate detection is enabled. Emerson.com/Rosemount...

  • Page 22: Invalid Level Measurements

    The tank hub will reply will level value configured in holding registers 1204 and 1205 (see Table 5-3). Figure 5-2 shows an example where holding register Sakura_TempErrorConfig (1211) is set to value 0. The tank hub will reply with the default level value 99999.9 mm. Emerson.com/Rosemount...

  • Page 23: Invalid Temperature Measurements

    The tank hub reply on the Sakura host temperature request can be customized if the temperature value is invalid. Use holding register Sakura_TempErrorConfig (1212) to customize your reply configuration, see Table 5-4. This configuration is applicable on all tank positions. Emerson.com/Rosemount...
  • Page 24 1. The tank hub will reply with the latest good temperature value. Figure 5-3: Example: Holding Register Sakura_TempErrorConfig (1212) Set to Value 1 Table 5-5: User Defined Invalid Temperature Value Input register Register Default Description number value Emul_Temp_ErrVal_1_10_C 1206 User defined invalid temperature value in 1/10 °C. Emerson.com/Rosemount...

  • Page 25: Miscellaneous Control Register

    Note that this bit is only valid for the Sakura V1 protocol. Note that the tank hub must be restarted or the Sakura bus communication must be idle for at least one minute. Note that this bit is only valid for the Sakura MDP protocol. Emerson.com/Rosemount...
  • Page 26 00809-0800-2410 5.8.1  Enable/disable MiscCtrl configuration bits To configure the MiscCtrl bits, do the following: Procedure 1. Double-click the grey colored Value field. 2. In the Expanded Bitfield - 1200 window, double-click the Value field to enable/ disable each option. Emerson.com/Rosemount...

  • Page 27: Error Status

    The desired alarm options are enabled in holding register Sakura_Alarm_Conf (1213), and the alarm level limits are configured in the generic TMV Alarm holding registers (one set of parameters for each tank position). 5.10.1  Configure Sakura V1 alarms To configure the Sakura V1 alarms, do the following: Emerson.com/Rosemount...
  • Page 28 2400-2478. Example: Holding register 2400 and 2402 are used to set alarm level limits for tank position 1. 2. Enable desired Alarm 1 and/or Alarm 2 options in holding register 1213. a) Double-click the grey colored Value field. Emerson.com/Rosemount...
  • Page 29 In the Expanded Bitfield - 1213 window, double-click the Value field to enable/ disable each option. Example: Alarm 1 is enabled for high level alarm and relay K2. Alarm 2 is enabled for low level alarm. The selected alarm status is now included in the applicable Sakura V1 responses. Emerson.com/Rosemount...

  • Page 30: Digital Input

    P1 = P2 = Liquid pressure, P3 = Vapor pressure P3 = Liquid pressure, P1 = P2 = Vapor pressure P1 = P3 = Liquid pressure, P2 = Vapor pressure P2 = P3 = Liquid pressure, P1 = Vapor pressure P1 = P2 = P3 = Liquid pressure. Emerson.com/Rosemount...
  • Page 31 Remap pressure value To remap the pressure value, follow these steps: Procedure 1. Double-click the Value field with the grey background color. 2. In the Expanded Bitfield - 1214 window, double-click the Value field to enable/ disable each option. Emerson.com/Rosemount...

  • Page 32: Mdp Status Bits

    TC4_Bit2 and TC4_Bit3. These bits will be set according to the request and level status. Indicate Valid By setting bit 15, an invalid level value will Level as Balance be indicated by status bits (P1, TC4_Bit2 and TC4_Bit3). Note that bit 14 will override bit 15. Emerson.com/Rosemount...

  • Page 33: Advanced Communication Settings

    If set to 0, the default response time for the used protocol will be used. ActiveAfterTx Active wait period (RTS) in ms after start of transmission. If set to 0, the default response time for the used protocol will be used. Emerson.com/Rosemount...
  • Page 34 Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
