Emerson Rosemount 2410 Manual Supplement

Tank hub upgrade instruction for primary bus and secondary bus
Hide thumbs Also See for Rosemount 2410:

Advertisement

Quick Links

Download this manual See also: Reference Manual
Manual Supplement
00809-0200-2410, Rev AA
November 2015

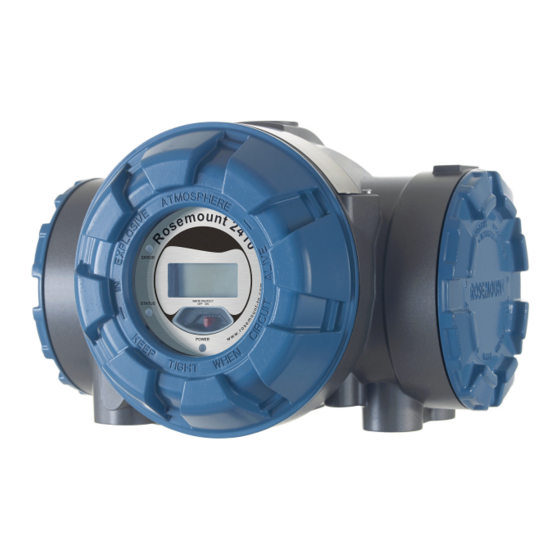

Rosemount 2410 Tank Hub
Upgrade Instruction for Primary Bus and Secondary Bus

Advertisement

loading

Related Manuals for Emerson Rosemount 2410

Summary of Contents for Emerson Rosemount 2410

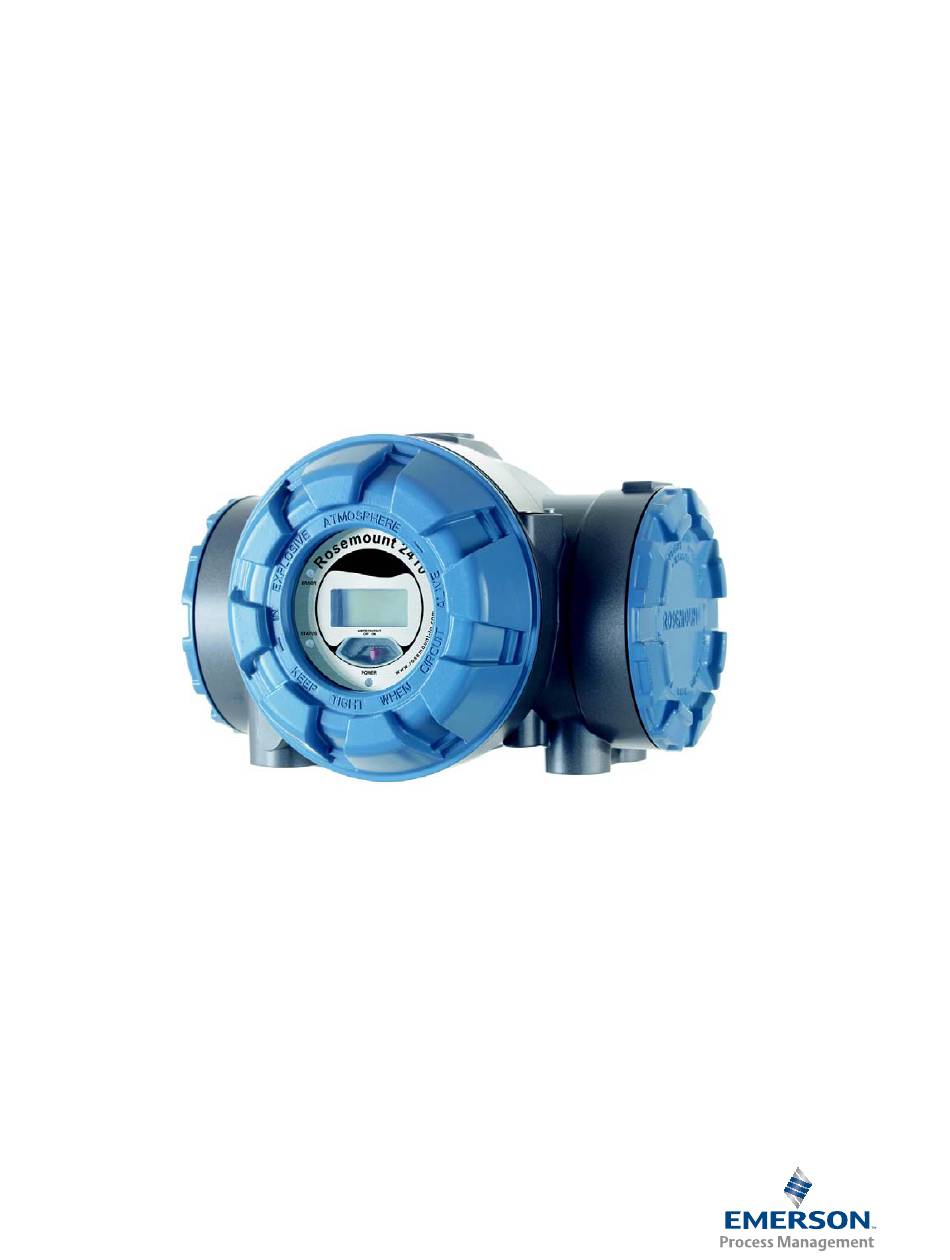

  • Page 1 Manual Supplement 00809-0200-2410, Rev AA November 2015 Rosemount 2410 Tank Hub Upgrade Instruction for Primary Bus and Secondary Bus...
  • Page 2 Emerson Process Management. Any continued use of product that has been damaged or modified without the written authorization is at the customer’s sole risk and expense.

  • Page 3: Installation Procedure

    Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Introduction This instruction describes how to upgrade a Primary/Secondary Fieldbus on existing 2410 Tank Hub. Note The upgrade must be documented. This includes stating the serial number of the device, date of upgrade, type of upgrade and name of the person performing the upgrade.

  • Page 4: Upgrading Procedure

    Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Upgrading procedure Note If the upgrade only requires a new start code proceed to 23. Power off the device at the power source. Disconnect all cabling. If necessary, move the device head to a safe, non-hazardous area.
  • Page 5 Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Disconnect the cables from the mother board. Remove all the 6 screws holding the plastic holder inside the housing. Rosemount 2410 Tank Hub...
  • Page 6 Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Remove the plastic holder from the housing. Press down the plastic clips to detach the electronics. Detach and remove the electronics package from the plastic holder. Rosemount 2410 Tank Hub...
  • Page 7 Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Remove the plate that holds the power supply in place. This will allow for easy access to the primary and secondary bus boards. Exchange the primary or secondary bus board depending on the desired configuration.
  • Page 8 Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 If an IS board is mounted on the primary side make sure the connection cable is placed under the secondary bus board if such board is present. Attach the power supply board back to the main board, ensure that all boards are aligned and properly resting against the board support.
  • Page 9 Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Steer the boards into the grooves of the holder; make sure the heat sink is properly aligned against the bottom of the holder. Push the two parts together all the way until the holder snaps in place and the boards are visible in the inspection holes.
  • Page 10 Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Place the electronic package back into the housing and secure it with the screws. Connect all the cables back to the mother board where applicable. Make sure that cables are not pushed down in the space next to the IS Component (if present), the cabling might otherwise impair Intrinsic Safety of the Board.
  • Page 11 Manual Supplement Rosemount 2410 Tank Hub 00809-0200-2410, Rev AA November 2015 Remove the old label plate and replace it with the new one. Apply the new main label on the plate. Connect the device and power it on, if a display is present make sure the device is working properly.
  • Page 12 Standard Terms and Conditions of Sale can be found at: Manama, Bahrain www.Emerson.com/en-us/pages/Terms-of-Use.aspx The Emerson logo is a trademark and service mark of Emerson Electric Co. +973 1722 6610 Rosemount and Rosemount logotype are trademarks of Rosemount Inc. +973 1722 7771 All other marks are the property of their respective owners.
