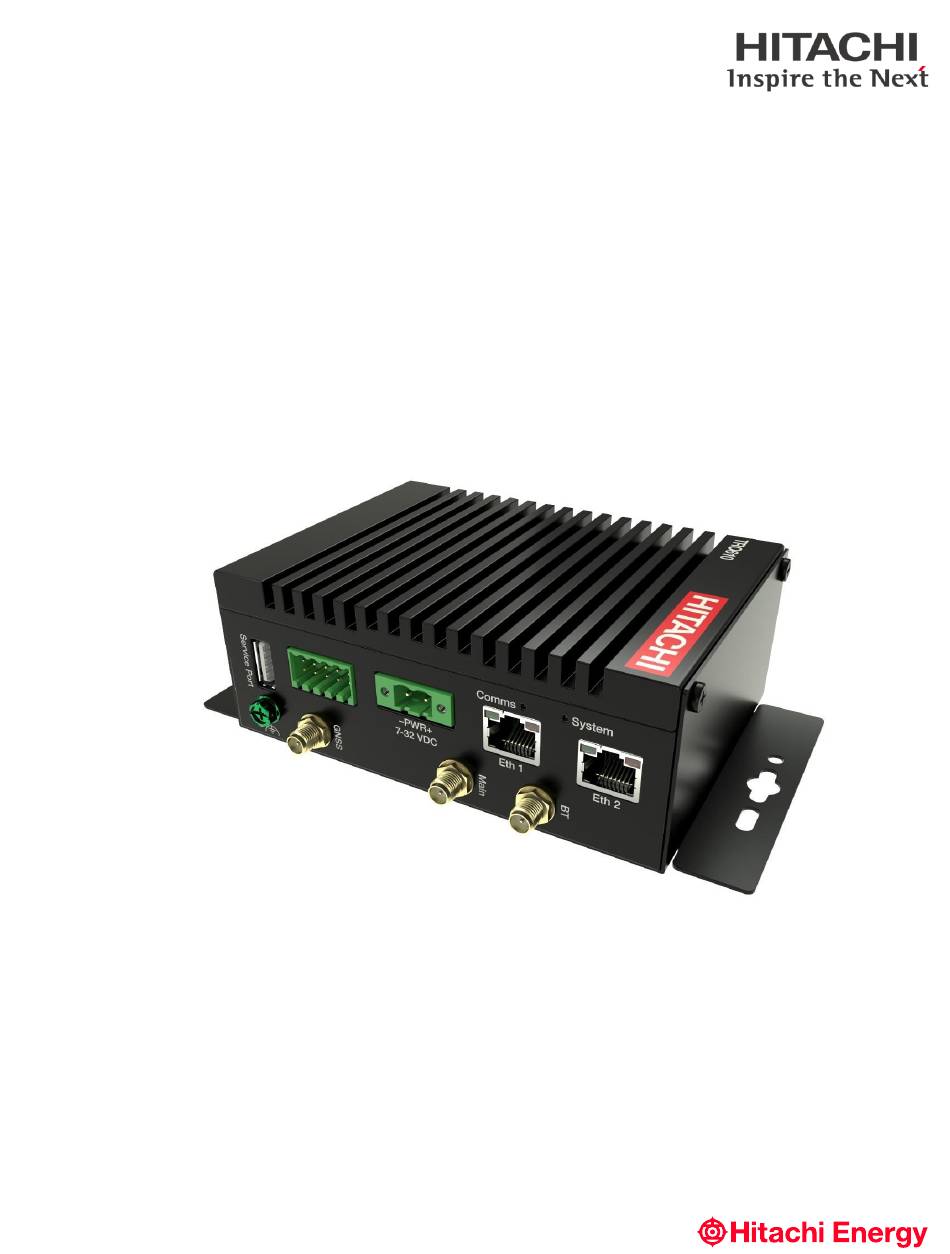

- Page 1 TRO610 Series Cellular Field Area Network Routers Hardware Reference 1Variant visualization for illustration purposes only. SECURITY LEVEL Public 2022-08-17 1/27...
- Page 2 T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Revisions Rev. Date Summary of Changes 06/2022 Initial version 03/2023 Updates, measurements from the actual device. SECURITY LEVEL Public 2023-03-29 2/27...
-
Page 3: Table Of Contents
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Contents 1 Notices ................................5 Copyright Notice ..........................5 FCC Notice to Users and Operators ....................5 Industry Canada Notice to Users and Operators ................. 5 Required Labeling .......................... - Page 4 T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Mounting ............................25 Grounding the Router ........................26 Servicing the TRO610 router ......................27 SIM card(s) swap ..........................27 Rescue Port/Recovery ........................27 Power cycle during firmware upgrade or major configuration profile change ........
-
Page 5: Notices
1.1 Copyright Notice © 2022 Hitachi Energy. All rights reserved The information in this guide may change without notice. Hitachi Energy assumes no responsibility for any errors that may appear in this guide. 1.2 FCC Notice to Users and Operators This device complies with Part 15 of the FCC Rules. -
Page 6: Required Labeling
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des régle- ments d’équipement. L’opération est sujette aux deux conditions suivantes: (1) cet dispositif peut ne pas causer l'interfé- rence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l'interférence qui peut causer l’opération peu désirée. -
Page 7: European Union Weee Notice
For EU member countries, this symbol means: Do not dispose of this equipment as unsorted municipal waste. This equip- ment must be collected separately. The return and collection of this product has not been defined at this time, please contact Hitachi Energy for return and/or collection. -
Page 8: Power Supply
3 Product Series and System concept 3.1 Product Series Introduction TRO610 Series are cost-effective small form-factor cellular routers. They provide industry-standard local interfaces and cellular backhaul for Utility, Smart City, Oil & Gas, Mining and Industrial applications. The TRO610 is ideal for connecting one or two local client devices. It is tailored for large scale industrial IoT deploy- ments, within an extended fleet ecosystem. - Page 9 T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Bluetooth LE gateway (future) Battery voltage monitor Dry Contact Closure input (e.g. for cabinet door monitoring) SECURITY LEVEL Public 2023-03-29 9/27...
-
Page 10: Tro610 Variants - Part Number Structure
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS TRO610 variants – Part Number Structure 3.2.1 A TRO610 Part Number fully identifies the TRO610 variant. It can be broken down as follows: Product Series Identification –... -
Page 11: Local Connections
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS 3.3 Local Connections Ethernet port 1 3.3.1 Ethernet port 1 is available on all TRO610 variants as an RJ45 port supporting 10/100/1000BASE-T IEEE 802.3. Speed and duplex mode are automatically negotiated. -
Page 12: Serial Port 1
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Ethernet Port 2 Serial port 1 3.3.3 Serial port 1 is available on all variants. It is implemented on the … Parameter Value Comments Serial port speeds 1200, 2400, 4800, 9600, 19200, 38400,... -
Page 13: Bluetooth (Expanded Models Only)
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS In D1/D2 base models: In D1/D2 expanded models: single RS232 port 2 x RS232 ports or RS232 + RS485 single voltage input port (see below) single voltage input port (see below) single contact closure port (see below) single contact closure port (see below) -
Page 14: Service Port (Usb)
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Contact closure input: - Input open (0V DC) or closed (5V DC) to common ground - Configurable reporting for transitions Note: Information from analog and digital inputs is delivered by SNMP traps (e.g. to Supros network management solu- tion). -
Page 15: Cellular Connectivity Band Support
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS 3.5 Cellular connectivity band support Model 3GPP Release and category Bands supported TRO610 D1 3GPP Rel 10, LTE Cat-4 B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B19, B20, B26, B28 B8 with Anterix support UMTS B1, B2, B4, B5, B8, B19... -
Page 16: Physical Characteristics
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS 3.6 Physical characteristics Weights and dimensions 3.6.1 Dimensions table: Version Options Weight [g] Width [mm] Height [mm] Depth [mm] Base (w/o antenna sock- Base, DIN rail ets) Expanded... -
Page 17: Environmental Characteristics
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Front view with ports and connectors positions: Back view with DIN rail clip mounting holes: Environmental Characteristics 3.6.2 Operating temperature range: -40°C to 70°C / -40°F to 158°F Storage temperature range: -40°C to 85°C / -40°F to 185°F IP30 rated enclosure: UL579/IEC 60529 IEC 61373 (for rail rolling stock equipment –... -
Page 18: Electromagnetic Characteristics
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Up to 95% relative humidity (non-condensing) with a max temperature of 70°C Electromagnetic characteristics 3.6.3 Conformance with FCC (Part 15 Subpart B) and IC (ICES-003) – D1 model only. Conformance with CE requirements (D1 and D2) for: Safety (EN/IEC 62368-1) EMC (Directive 2014/30/EU) - Page 19 T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS • System – general status of the router General router status indicators LED Label Color Status Description System Powering on Boot sequence in progress System GREEN Up &...
-
Page 20: Functions Overview
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Right 10Mbps Up to 10Mbps (if Left is Green/Flash- ing) or no transfer (if Left is off). 3.7 Functions overview First-time access 3.7.1 Prepare for cellular connection (optional) Locate the SIM Slot cover plate on the side of the TRO610. -
Page 21: Location/Positioning
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Using the configuration utility, navigate to Configuration -> Interfaces -> Cellular. If a specific APN is required for network connectivity, configure the appropriate APNs for the respective SIM card: Add a profile to the profile list with the specific APN. -
Page 22: Tro610 Processing Environment
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS TRO610 processing environment 3.7.3 • Main CPU: Single core operating at 600 MHz, 32-bit ARM-processor • Operating Memory: 1 GB DRAM • Storage: 4 GB Flash 3.8 Accessories and antenna recommendations Serial and power supply connector blocks 3.8.1... -
Page 23: Router Mounting Kits
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Router Mounting kits 3.8.4 DIN Rail clip All the necessary parts to mount the TRO610 on a DIN rail are already included in a basic TRO610 package. Wall mount brackets (T61-WALLMTKIT1) The kit comes with two wall mount brackets (mounted to TRO610 from the bottom –... - Page 24 T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Remote mount 2-antenna bracket kit (MBKIT004) The kit contains: • One Bracket for 2 Antennas (152255-00) • One Pole Mount Cleat (151093-01) • Two Hose Clamps 1 7/8 to 5 Inch (100255-01) •...
-
Page 25: Installation & Maintenance
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Remote Mount 4-Antenna Bracket Kit (MBKIT003) The kit contains: • One Bracket, 4 Antennas (152944-00) • One Pole Mount Cleat (151093-01) • Two Hose Clamps 1 7/8 to 5 Inch (100255-01) •... -
Page 26: Grounding The Router
T RO610 SE RI ES CE LLULAR F IELD A REA NE TWO RK RO UTE RS Accessories/Model D1, basic D1, expanded D2, basic D2, expanded LTE Antennas GPS Antennas Bluetooth Antennas RF Pigtails RF surge arrestors RF cables Remote antenna MBKIT004 MBKIT005 MBKIT004... -
Page 27: Servicing The Tro610 Router
For EN/IEC 60950-compliant grounding, use size 18 AWG (1 mm2) or larger copper wire. 4.3 Servicing the TRO610 router The TRO610 router has no user serviceable parts. For any service-related issues contact Hitachi Energy or your partner support. 4.4 SIM card(s) swap Note: hot SIM card swap is not supported by TRO610.
