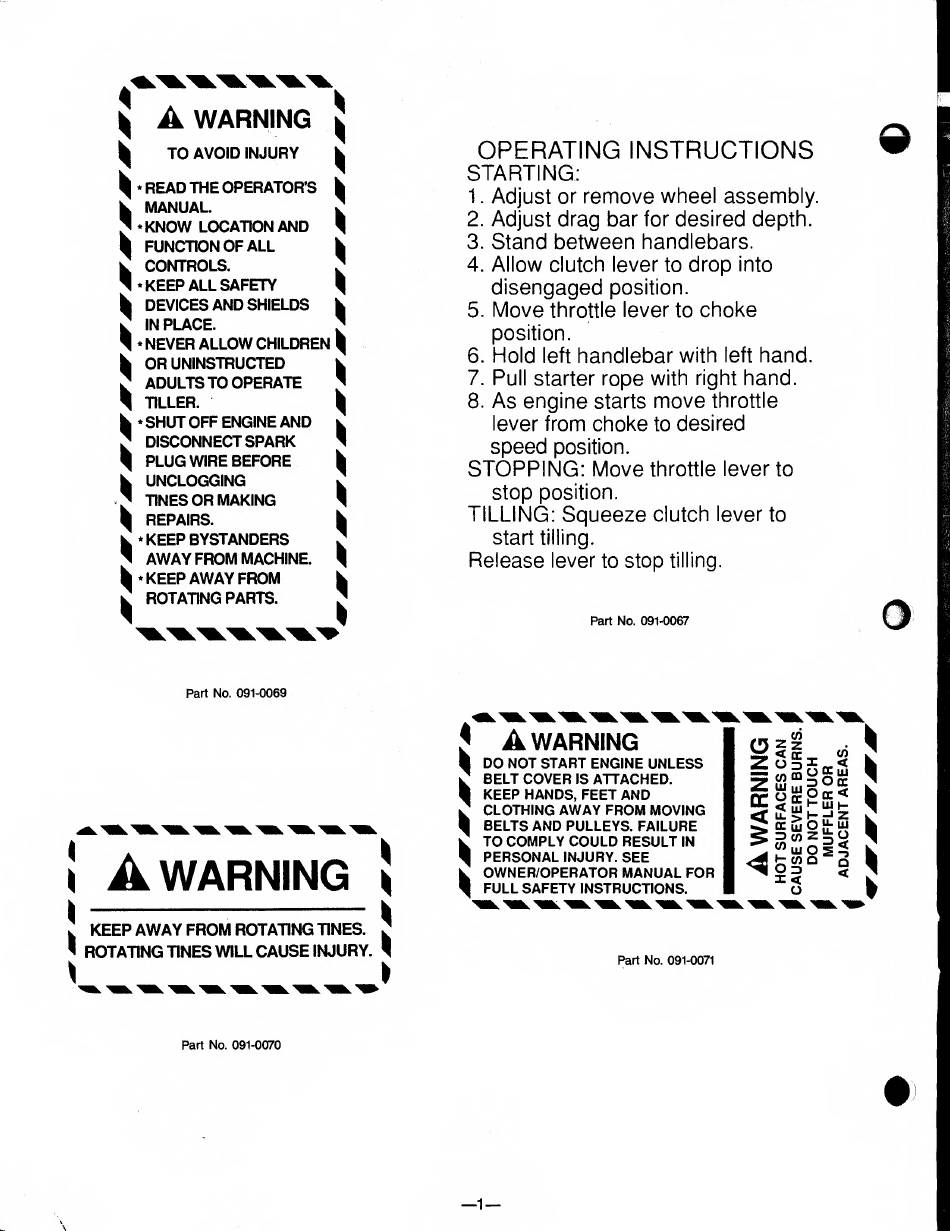

A WARNING
TO AVOID INJURY
* READ THE OPERATOR'S
MANUAL.
'KNOW LOCATION AND
FUNCTION OF ALL
CONTROLS.
'KEEP ALL SAFETY
DEVICES AND SHIELDS
IN PLACE.
' NEVER ALLOW CHILDREN
OR UNINSTRUCTED
ADULTS TO OPERATE
TILLER.
'SHUTOFF ENGINE AND
DISCONNECT SPARK
PLUG WIRE BEFORE
UNCLOGGING
TINES OR MAKING
REPAIRS.
'KEEP BYSTANDERS
AWAY FROM MACHINE.
'KEEP AWAY FROM
ROTATING PARTS.
OPERATING INSTRUCTIONS
STARTING:
1. Adjust or remove wheel assembly.
2. Adjust drag bar for desired depth.
3. Stand between handlebars.
4. Allow clutch lever to drop into
disengaged position.
5. Move throttle lever to choke
position.
6. Hold left handlebar with left hand.
7. Pull starter rope with right hand.
8. As engine starts move throttle
lever from choke to desired
speed position.
STOPPING: Move throttle lever to
stop position.
TILLING: Squeeze clutch lever to
start tilling.
Release lever to stop tilling.
Part No. 091-0067
Part No. 091-0069
A
WARNING
KEEP AWAY FROM ROTATING TINES.
ROTATING TINES WILL CAUSE INJURY.
5
A WARNING
k DO NOT START ENGINE UNLESS
^ BELT COVER IS ATTACHED.
1
KEEP HANDS, FEET AND
^ CLOTHING AWAY FROM MOVING
1
BELTS AND PULLEYS. FAILURE
^ TO COMPLY COULD RESULT IN
1
PERSONAL INJURY. SEE
W OWNER/OPERATOR MANUAL FOR
^ FULL SAFETY INSTRUCTIONS.
C5
Z
z
tr
<
<
U)
z
oc _
3
Sniy
V)
<
Ul
oc
<
y-
z
UJ
o
<
-»
a
<
Part No. 091-0071
Part No. 091-0070
