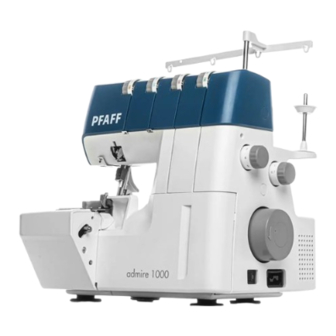

Pfaff admire 1000 User Manual
  1. Manuals
  2. Brands
  3. Pfaff Manuals
  4. Sewing Machine
  5. admire 1000
  6. User manual
Pfaff admire 1000 User Manual

Pfaff admire 1000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Pfaff admire 1000

Summary of Contents for Pfaff admire 1000

  • Page 1 User’s Guide...
  • Page 2 This household overlock machine is designed to comply with IEC/EN/CSA C22.2 No. 60335-1 & 60335-2-28 and UL1594. IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this household overlock machine. When using an electrical appliance, basic safety precautions should always be followed, including the following: Keep the instructions at a suitable place close to the machine.
  • Page 3 Intellectual Property PFAFF, ADMIRE, and PERFECTION STARTS HERE are trademarks of KSIN Luxembourg II, S.a.r.l. Please note that on disposal, this product must be safely recycled in accordance with relevant National legislation relating to electrical/electronic products. Do not dispose of electrical appliances as unsorted muncipal waste, use separate collection facilities.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. KNOWING YOUR MACHINE Foot control Power / light switch Opening front cover Opening work table Preparation for threading Thread guide pole Spool discs and spool holders for cone spools Spool nets Waste tray Intergated seam guide Thread knife Changing presser feet Needle / Thread / Fabric Chart...
  • Page 5 SPECIFICATION OF MACHINE MODEL admire 1000 Number of threads 2, 3 or 4 threads Overedge stitch width (Max.) 7 mm (left needle) Needle Overlock Needle, Style 2022 Stitch length 1-5mm Stitching speed Up to 1300 stitches per minute Width: 320mm (12.6 inches) Dimensions Length: 385mm (15.2 inches)

  • Page 6: Knowing Your Machine

    1. KNOWING YOUR MACHINE Identification chart 1. Presser foot pressure regulator 17. Waste tray 18. Foot control 2. Thread knife 3. Presser foot lever 19. Release lever 4. LED lamp 20. Foot release lever 5. Needle plate 21. Spool disc 6.
  • Page 7 Accessories Parts listed are included with your machine. 1. Two-thread converter 2. Stitch finger (B) (Stitch finger (A) is already on the machine upon delivery.) 3. Needles 4. Lint brush 5. Screwdriver (small) 6. Soft dust cover 7. Screwdriver (large) 8.

  • Page 8: Foot Control

    Setting up your machine 1. Wipe off any excess oil in the needle plate and bed areas. 2. FOOT CONTROL Push foot control plug into connector socket, and connect the power line plug into power sup- Connector ply outlet. Socket Be aware that some appliances can be delivered with a polarized plug (one blade wider than the other).

  • Page 9: Preparation For Threading

    Preparation for threading Thread guide pole Pull up thread guide pole to the highest point until you hear it click. Thread guide pole Place thread spools on pins and draw thread through thread guides on the pole from back to front. Thread guide The thread guides of the pole can help hold thread spools in place while the machine is not in use.

  • Page 10: Spool Discs And Spool Holders For Cone Spools

    Spool caps for domestic type spools Spool cap Domestic thread spool Cone type thread Spool discs and spool holders for cone spools For large cone spools use the spool holders with the wide end at the top, and for small ones, use the same spool holders but with the narrow end at the top.

  • Page 11: Waste Tray

    Waste tray The waste tray can be attached to the machine, and it is used to catch waste trimmings as you sew. After completion of work, remove the waste tray. Slots for attaching tray Intergated seam guide The integrated seam guide helps you sew straight, whether sewing seams or edges.

  • Page 12: Needle / Thread / Fabric Chart

    Changing the needle Raise needle bar to its highest point by turning hand wheel towards you, Needle clamp screws but leave presser foot down. Loosen needle clamp screw to remove the needle, and place new needle with flat side away from you, into the nee- dle bar as far as it will go, and tighten screw.

  • Page 13: Getting Ready To Sew

    2. GETTING READY TO SEW Threading your machine Before re-threading the lower looper after a thread break, Wrong threading may cause skipped stitches, breaking threads, or remove thread from needle eye first, then re-thread the lower other problems. looper. This will prevent tangling. Try to master the correct threading before moving on to test sew- Threading upper looper ing.
  • Page 14 Threading lower looper 1. Feed the thread through the thread guide as illustrated. 2. Pull the lower thread through tension slot. Holding the thread with your left hand, pull down with right hand firmly. 3. Draw the thread through thread guides as illustrated. 4.
  • Page 15 Threading needles 1. Feed the thread through the thread guide as illustrated. 2. Draw the needle threads through needle thread tension slots. Holding the thread with your left hand, pull down with right hand firmly. 3. Draw the thread through the thread guides as illustrated. 4.
