A DJ U S T I N G T H E L O N G T I M E P I C K U P O R T H R E S D H O L D I 1

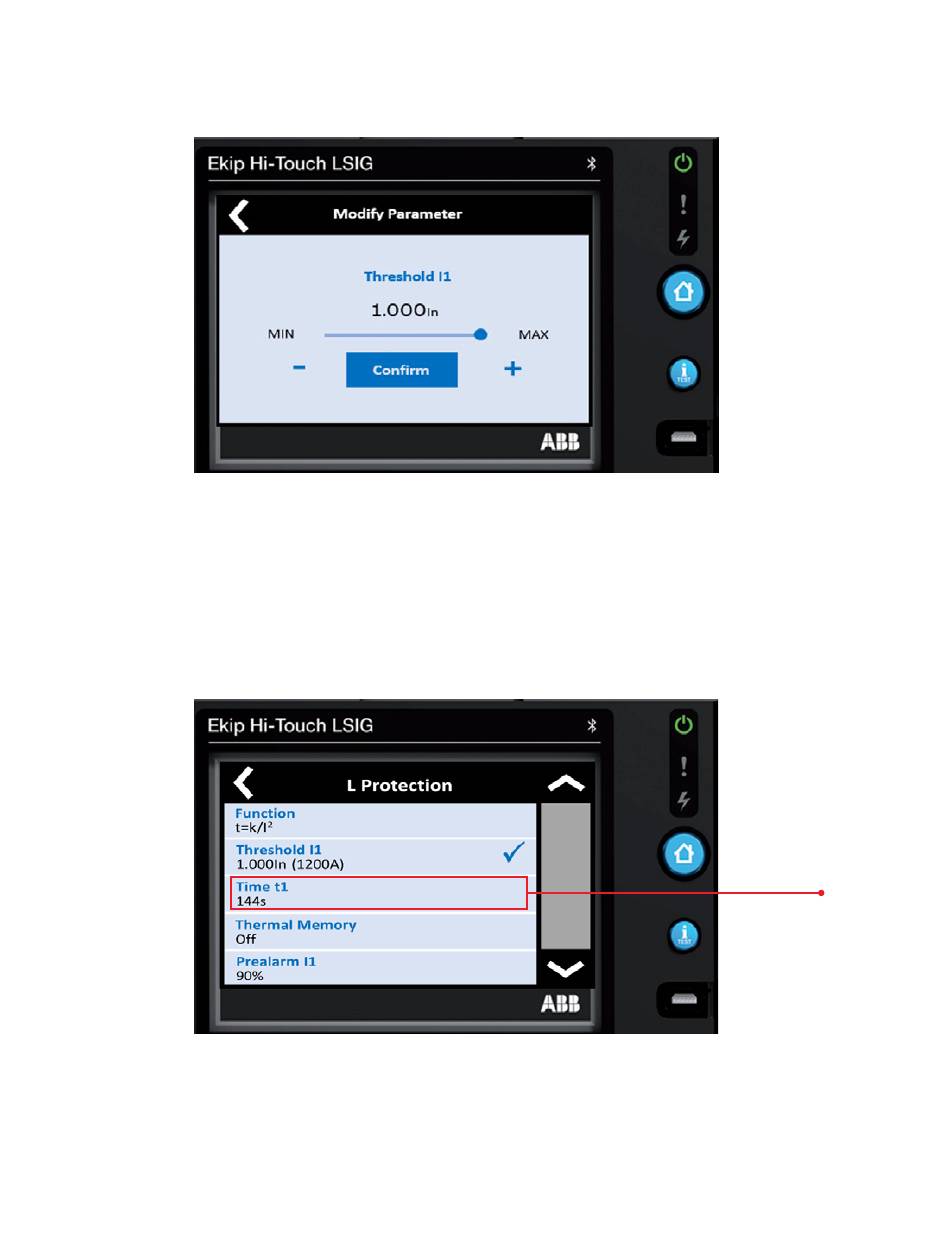

Step 9. Change the Long Time Pickup / Threshold I1 setting to the value in the coordination study.
The setting range is from 0.4 to 1.0 of the breaker's nominal rating (rating plug value)
Press the minus icon or the plus icon to change to the value in the coordination study (maintaining the
press will advance the settings faster). Then press Confirm
NOTE: The value is given as both absolute value (in Amperes) and relative value (In) and can be set within the range: 0.4 In to 1.0In in 0.001 steps.
A DJ U S T I N G T H E L O N G T I M E D E L AY O R T I M E T 1
Step 10. Press the Time t1 row
10
Change the Long Time Delay / Time t1 setting to the value in the coordination study.
