Full Overlay Drawer Panels

Drawer Panel Preparation
Full overlay drawer panels completely cover the drawer
fronts and handles to give a built-in appearance. Overlay
units are shipped ready for full overlay installation.
Note: For standard installations, both drawers mount the
same and a 1/2" gap is achieved between drawers.
1. Cut the overlay to the following dimensions.
Full Overlay Dimensions:
Width: 23-3/4"
Height: 14-3/4"
IMPORTANT
The thickness of the wood overlay panel must be 3/4".
The door panel must not weigh more than 20 lbs.
Drawer Panel Installation
Removing Existing Drawer Fronts

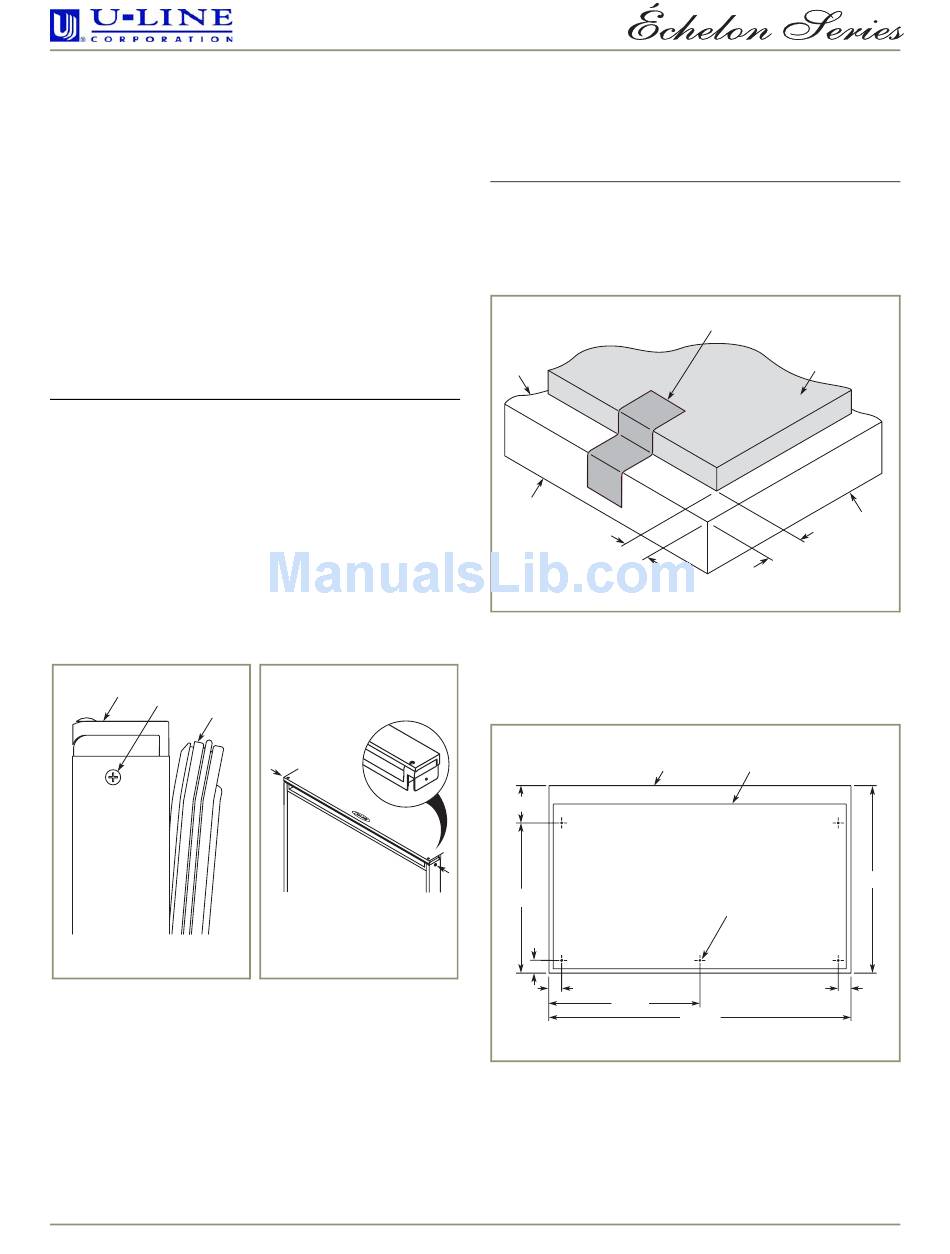

1. Open drawer. Pull drawer gasket out of groove (top
edge of drawer only). Start in the middle and pull
outward, moving toward the edge (see Figure 1). This
may take some force.
2. Remove and save the two screws located at the ends of
the handle (see Figure 2). Remove the handle.
Handle
Screw
Gasket
Figure 1
3. Remove existing panel and cardboard spacer. Discard
the spacer.
www.U-LineService.com
Figure 2
Attaching the Full Overlay Panel
1. If user-supplied cabinet handles will be used, attach
their hardware to the overlay panel at this time.
IMPORTANT
User-supplied cabinet handles MUST be counter bored to
make sure mounting hardware is below surface of overlay
panel. Failure to do so can cause damage to overlay panel
and/or drawer. Overlay panel will not sit flush to drawer if
mounting hardware is not counter bored.
Back of
Wood
Panel
Side of
Wood Panel
11/32"
Bottom
Figure 3
2. Place and tape the existing drawer panel on the back of
the overlay panel (see Figure 3).
3. Drill the five holes (5/32" drill 3/8" deep) through both
panels according to Figure 4.
Top of
Wood Panel
2-15/16"
11-13/16"
1"
1"
11-7/8"
Figure 4
2
Tape
Drawer Panel
Bottom of
Wood Panel
3/8"
Both Sides
Vinyl Coated
Steel Panel
14-3/4"
5/32" x 3/8" Deep –
5 Places
1"
23-3/4"
