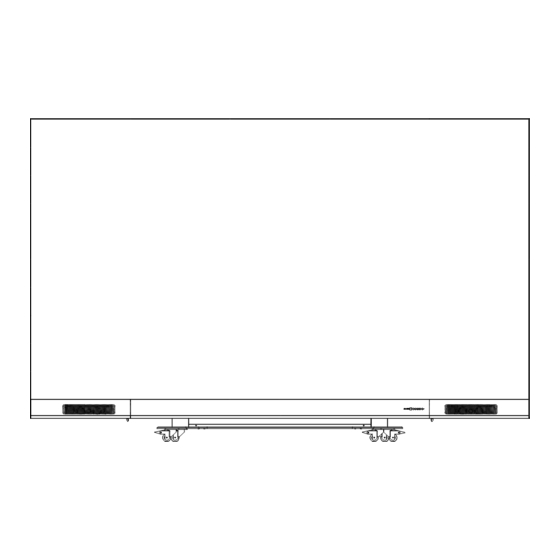

- Page 1 LDS135 Series All-in-One Direct View LED Display Solution kit Quick Start Guide 快速安装说明 快速入門指南 Guide de démarrage rapide Schnellstartanleitung Guía rápida de inicio Hızlı Başlangıç Kılavuzu Aan de slag краткое руководство по началу работы...
-
Page 2: Fcc Compliance Statement
FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Package Contents
Package Contents Item Quantity Note LED Display with Motorized Trolley Cart LDS135 Series All-in-One Direct View LED Display Quick Start Guide 快速安装说明 快速入門指南 Guide de démarrage rapide Schnellstartanleitung Quick Start Guía rápida de inicio Hızlı Başlangıç Kılavuzu Aan de slag краткое... - Page 4 Item Quantity Note T-Type Wrench NOTE: • This product is packed in an air transport box. • Due to the size and weight, it is recommended that two or more people handle it.
- Page 5 Physical Dimensions for LDS135 Series 1963 1963...
-
Page 6: Product Overview
Product Overview Front Panel I/O Control Panel Power Button Power Switch and indicator Rear Panel Control Panel for Motorized Trolley Cart... - Page 7 Control Panel for Motorized Trolley Cart Status/information display window Preset height function key 1/2/3 keys Preset lifting height level; Manual lifting height key 1. Instructions on Preset Lifting Height • Initial preset lifting height: Three groups of preset data. The 1/2/3 keys ( correspond to 0 cm / 25 cm / 65 cm height respectively.
- Page 8 2. How to Use Preset Height At any height (unavailable under the reset and error status), keys 1/2/3 may be used to quickly reach the preset height. If the current height has reached such preset height, no actions will be performed. 3.
- Page 9 Schematic Diagram of Components Back Cover of the flight case Movable Plate LED Display with motorized trolley cart Front Cover Bottom Plate of the flight case of the flight case I. Handling and Moving Flight Cases Note: During moving, handling, placing and transporting of flight cases, always keep the specified position up, no reversing, in order to prevent bumping and damage to the structure of the equipment and the display components.
- Page 10 II. Unpacking Operation Left Right OPEN OPEN UNLOCK Scan for the video...
- Page 11 III. Packing and Handling Operation Left Right CLOSE CLOSE LOCK LOCK Scan for the video...
-
Page 12: Specifications
Specifications Item Category Specifications Type Direct View LED Display Size 135” 118.11” (H) x 66.44” (V) Display Area 3,000 mm (H) x 1,687.5 mm(V) Pixel Pitch 1.56 mm LED Screen Resolution FHD, 1920 x 1080 Refresh Rate up to 4440Hz Contrast Ratio 6000:1 (Typical) Brightness...
