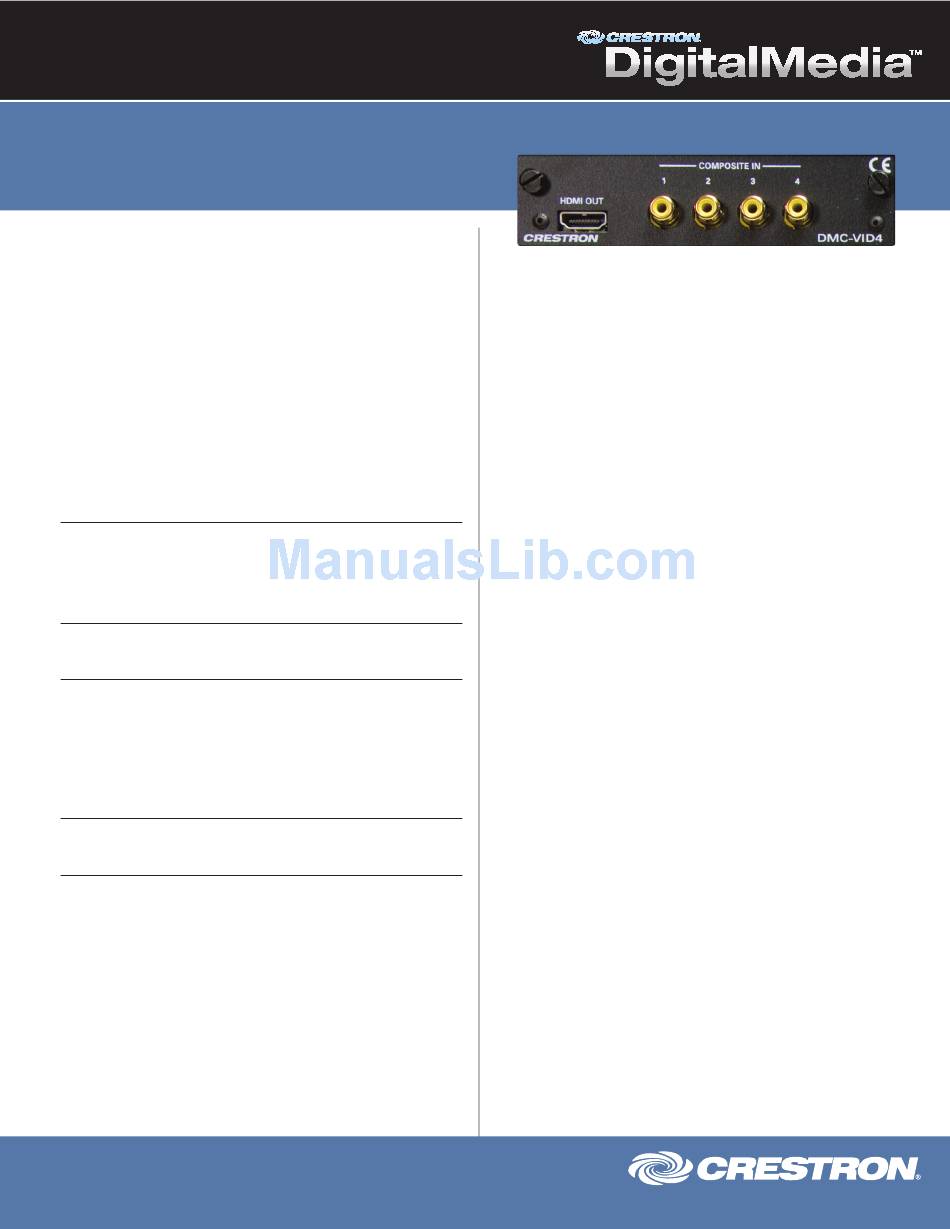

C C r r e e s s t t r r o o n n D D M M C C - - V V I I D D 4 4
Security Camera Input Card
for DM Switchers
The DMC-VID4 is an input card for a Crestron DigitalMedia™ Switcher, providing
four composite video inputs w/built-in sequential switching and quad processing.
The DMC-VID4 is designed to allow up to four security cameras to be viewed
individually or simultaneously in quad, dual, or full screen modes. When viewing
full screen, the input may be selected manually or sequentially. The sequential
switching function cycles automatically through each available input, displaying
each source one at a time per a user-definable duration. In any mode, dynamic
colored text overlay capability allows each window or source to be clearly
identified.
A local HDMI output connection is also provided on the card, allowing the
processed video signal to be fed to a local device, or to a second DM switcher
for output expansion purposes.
SPECIFICATIONS
Video
S S i i g g n n a a l l T T y y p p e e s s : Composite inputs; HDMI output
I I n n p p u u t t F F o o r r m m a a t t s s : : NTSC or PAL
I I n n p p u u t t R R e e s s o o l l u u t t i i o o n n s s : : 480i, 576i
O O u u t t p p u u t t F F o o r r m m a a t t s s / / R R e e s s o o l l u u t t i i o o n n s s : : Matched to input
A A n n a a l l o o g g - - T T o o - - D D i i g g i i t t a a l l C C o o n n v v e e r r s s i i o o n n : : 8-bit per color, 27 MHz
Quad Processor
D D i i s s p p l l a a y y M M o o d d e e s s : : Quad screen, dual screen, full screen, sequential switching
T T e e x x t t O O v v e e r r l l a a y y : : Dynamic colored window labeling, time/date
Connectors
H H D D M M I I O O U U T T : : (1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Provides pass-thru signal from COMPOSITE IN for system expansionn
C C O O M M P P O O S S I I T T E E I I N N 1 1 - - 4 4 (4) RCA female;
Composite video inputs;
Input Level: 1 V
nominal;
p-p
Input Impedance: 75 ohms nominal
Construction
Plug-in card, occupies (1) DM Switcher input card slot, includes steel faceplate
w/black matte powder coat finish
Weight
7.5 oz (212 g)
Crestron Electronics, Inc. 15 Volvo Drive
l
Tel: 800.237.2041 / 201.767.3400
Fax: 201.767.1903
Specifications subject to change without notice. Doc.4769 01/09
©2009 Crestron Electronics, Inc. All brand names, product names and trademarks are the property of their respective owners.
