Physical Description; Board Layout; Rm48 Hdk Board, Interfaces Top Side - Texas Instruments Hercules RM48 Instruction Manual

This section describes the physical layout of the RM48 HDK board and its interfaces.
2.1

Board Layout

The RM48 HDK board is a 4.9 x 4.3 inch (125 x 109 mm) eight layer printed circuit board that is powered
by an external +5 V to approximately +12 V only power supply.
HDK board.
8

Physical Description

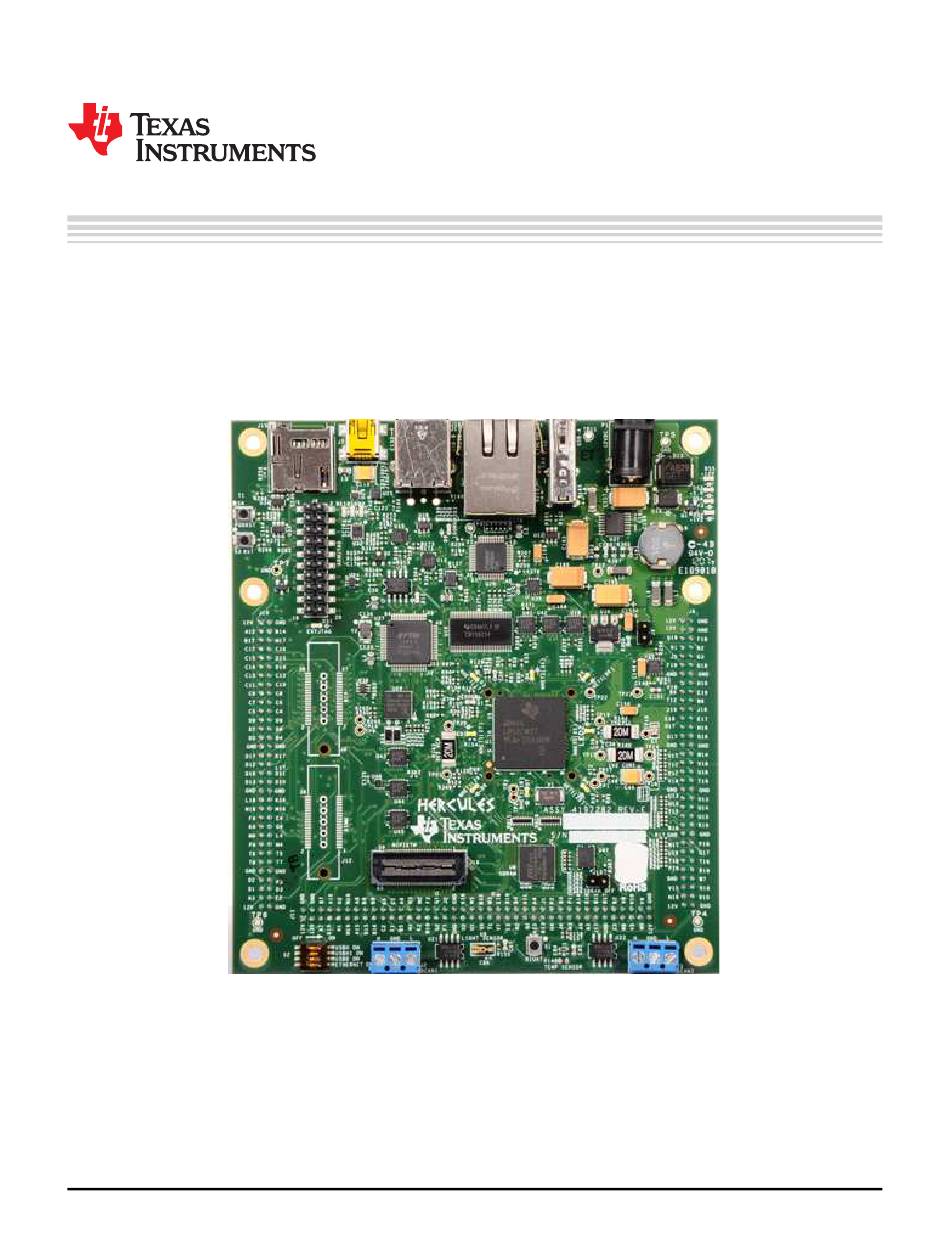

Figure 2-1. RM48 HDK Board, Interfaces Top Side
