- Page 1 TMS570LS12x Hercules Development Kit (HDK) User's Guide Literature Number: SPNU568 September 2012...
-
Page 2: Table Of Contents
2.2.8 Daughter Card Interface ........................LEDs ......................S2 DIP Switch ........................Jumpers ..................... S4, Power On Reset Switch ....................S3, System Reset Switch ......................Operation Notices Contents SPNU568 – September 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... - Page 3 Expansion Connector P3 (J11, Bottom One, TopView) ........................ 2-9. Demo LEDs ....................2-10. Other LEDs as Indicator ....................2-11. S2 DIP Switch Functions ........................2-12. Jumpers SPNU568 – September 2012 List of Figures Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
-
Page 4: Preface
This document describes the board level operations of the TMS570LS12 Hercules™ Development Kit (HDK). The HDK is based on the Texas Instruments TMS570LS1227 Microcontroller. The TMS570LS12 HDK is a table top card that allows engineers and software developers to evaluate certain characteristics of the TMS570LS1227 microcontroller to determine if the microcontroller meets the designer’s application... -
Page 5: Introduction
Introduction This development kit provides a product-ready hardware and software platform for evaluating the functionality of the Texas Instruments TMS570LS12 microcontroller family. Schematics, list of materials, and PCB layout are available to ease hardware development and reduce time to market. -
Page 6: Hdk Board Block Diagram
– Type A to mini B USB cable for using on board XDS100V2 JTAG emulator – Ethernet cable – Flashlight for light sensor demo • CCS DVD Containing: – Texas Instruments’ Code Composer Studio™ Integrated Development Environments (IDE) • Hercules DVD Containing: – Hercules Safety Demos – Hardware Abstraction Layer Code Generator (HALCoGen) –... -
Page 7: Hdk Specifications
(P1), a 2.5 mm, barrel-type plug. Internally, the +12 V input is converted into +1.2 V, +3.3 V and +5.0 V using Texas Instruments swift voltage regulators and PTH power module. The +1.2 V supply is used for the MCU core while the +3.3 V supply is used for the MCU's I/O buffers and other module on the board. -
Page 8: Physical Description

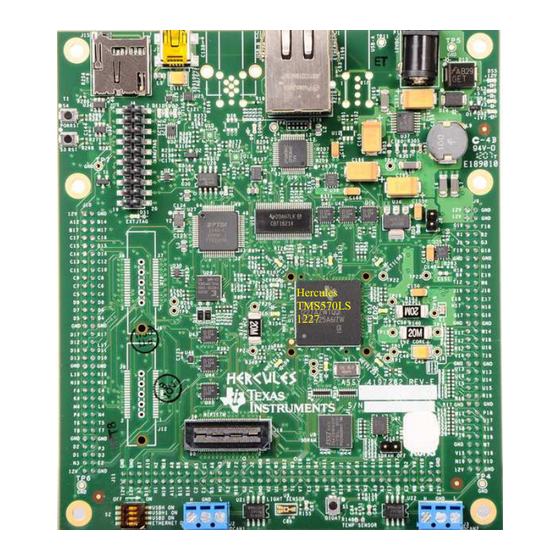

+5 V to approximately +12 V only power supply. Figure 2-1 shows the layout of the TMS570LS12 HDK board. Hercules TMS570LS 1227 Figure 2-1. TMS570LS12 HDK Board, Interfaces Top Side Physical Description SPNU568 – September 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 9: Connectors
EXP P2, SPI2, EMIF, ECLK 40x2, 2mm EXP P3, SPI3, GIO, NHET, DCAN, LIN 19x2, mictor SD card 30x2, MIPI ETM MIPI Header 2.5mm +12 V In SPNU568 – September 2012 Physical Description Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 10: 20-Pin Arm Jtag Header
60 Ω resistors, with a bypass capacitor tied between the resistors and to ground. The two resistors should match as close as possible. Physical Description SPNU568 – September 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 11: J19, Mipi Etm Connector
Figure 2-4. J19, 60 Pin MIPI ETM Header Table 2-4. J19, MIPI Connector Signal Mapping Signals Number Number Signals 3.3 V System reset RTCK nTRST 3.3 V SPNU568 – September 2012 Physical Description Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 12: J7, Xds100V2 Usb Jtag Interface
XDS100V2 USB driver makes the FT2232H second channel appear as a virtual COM port (VCP). This allows the user to communicate with the USB interface via a standard PC serial emulation port. Physical Description SPNU568 – September 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 13: Daughter Card Interface
MibSPI1CS[2] MibSPI1SIMO MibSPI1SOMI MibSPI5ENA MibSPI5CLK MibSPI5CS[1] MibSPI5CS[0] MibSPI5CS[3] MibSPI5CS[2] MibSPI5SIMO[0] MibSPI5SOMI[0] MibSPI5SIMO[1] MibSPI5SOMI[1] MibSPI5SIMO[2] MibSPI5SOMI[2] MibSPI5SIMO[3] MibSPI5SOMI[3] AD1IN[1] AD1IN[0] AD1IN[3] AD1IN[2] AD1IN[5] AD1IN[4] AD1IN[7] AD1IN[6] SPNU568 – September 2012 Physical Description Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 14: Expansion Connector P1 (J9, Left, Topview)
EMIF_CS[2] EMIF_BA[1] EMIF_DQMn[1] EMIF_BA[0] EMIF_DQMn[0] EMIFDATA[1] EMIFDATA[0] EMIFDATA[3] EMIFDATA[2] EMIFDATA[5] EMIFDATA[4] EMIFDATA[7] EMIFDATA[6] EMIFDATA[9] EMIFDATA[8] EMIFDATA[11] EMIFDATA[10] EMIFDATA[13] EMIFDATA[12] EMIFDATA[15] EMIFDATA[14] SPI2_SOMI EMIF_nWAIT SPI2_SIMO SPI2_CS1 Physical Description SPNU568 – September 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 15: Expansion Connector P3 (J11, Bottom One, Topview)
NHET1[17] NHET1[16] NHET1[19] NHET1[18] NHET1[21] NHET1[20] NHET1[23] NHET1[22] NHET1[25] NHET1[24] NHET1[27] NHET1[26] NHET1[29] NHET1[28] NHET1[31] NHET1[30] MibSPI3CS[3] MibSPI3CS[2] MibSPI3SIMO MibSPI3SOMI MibSPI3CS[1] MibSPI3CS[0] MibSPI3ENA MibSPI3CLK EXP_12V SPNU568 – September 2012 Physical Description Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 16: Leds
Figure 2-7. DIP Switch Settings The S2 DIP switch is reserved for user application general purpose. Table 2-11 describes the function of each channel on S2. Physical Description SPNU568 – September 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 17: Jumpers
The reset signal from window watchdog will also assert a warm reset to the MCU. The warm reset can be invoked by pushing nRST button, or by RESET signals from XDS100 CPLD, ARM JTAG SREST. SPNU568 – September 2012 Physical Description Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 18: Operation Notices
URL: http://tiexpressdsp.com/index.php?title=XDS100 • Code Composer Studio support is available via a forum at: http://community.ti.com/forums/138.aspx • Hercules MCU support is available via a forum at: http://www.ti.com/hercules-support Operation Notices SPNU568 – September 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... - Page 19 Any exceptions to this are strictly prohibited and unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory authorities, which is responsibility of user including its acceptable authorization.
