Crestron STX-1700CXP Operation Manual

2-way rf wireless touchpanel
Hide thumbs Also See for STX-1700CXP:
Table of Contents

Advertisement

Quick Links

Download this manual
Crestron STX-1700CXP
2-Way RF Wireless Touchpanel
Operations Guide

Advertisement

Table of Contents
loading

Related Manuals for Crestron STX-1700CXP

Summary of Contents for Crestron STX-1700CXP

  • Page 1 Crestron STX-1700CXP 2-Way RF Wireless Touchpanel Operations Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2003 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Crestron STX-1700CXP Contents 2-Way RF Wireless Touchpanel: STX-1700CXP Introduction ... 1 Functions and Features ... 1 Specifications ... 3 Physical Description... 4 Industry Compliance ... 6 Setup ... 6 Applying Power... 6 Identity Codes... 7 Configuring the Touchpanel... 8 General Use and Safety ... 12 Recommended Touchpanel Cleaning ...

  • Page 5: 2-Way Rf Wireless Touchpanel: Stx-1700Cxp

    STX-1700CXP Introduction Functions and Features The STX-1700CXP is a 2-way wireless radio frequency (RF) compact color touchpanel that utilizes 2.4 GHz spread spectrum technology to provide a user interface to a Crestron The “Wi-Fi friendly” touchpanel is a handheld transceiver that communicates through Crestron’s gateway/transceiver, the TPS-RFGWX (sold separately), to the...
  • Page 6 Gateway Compatibility The ability to select frequency bands makes it possible for the STX-1700CXP to communicate with TPS-RFGWX two-way RF transceivers (gateways) that are Wi-Fi friendly as well as those that are not. TPS-RFGWX gateways that are Wi-Fi friendly (include band selection) have product labels that include a seven-digit number beginning with 600 (e.g., 6002104).

  • Page 7: Specifications

    Crestron STX-1700CXP Specifications The table below provides a summary of specifications for the STX-1700CXP. Specifications of the STX-1700CXP Touchpanel Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel SPECIFICATION Power Options ST-BTPN AC: Domestic External Adapter AC: International External Adapter...

  • Page 8: Physical Description

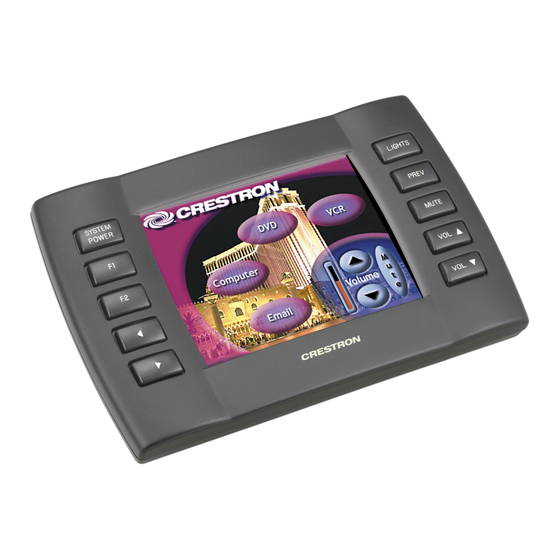

    Physical Description The touch-sensitive viewing screen and “quick” pushbuttons are located on the front of the STX-1700CXP. The electronic hardware is housed in a high impact, black molded plastic enclosure, shown below. Connectors to upload touchscreen projects via Cresnet, using a PC and Crestron processor, and to power the unit using the external power pack are located on the left and right sides of the unit, respectively.
  • Page 9 Refer to “Programming Cable” on page 22 for details and pinouts of the cable used for programming and uploading. Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel 2-Way RF Wireless Touchpanel: STX-1700CXP • 5...

  • Page 10: Industry Compliance

    STX-1700CXP Power Source Options ** The battery pack does not “trickle” charge when the external power pack is used to power 6 • 2-Way RF Wireless Touchpanel: STX-1700CXP Reorient or relocate the receiving antenna. Increase the separation between the equipment and transceiver.

  • Page 11: Identity Codes

    Crestron STX-1700CXP Identity Codes The STX-1700CXP touchpanel uses distinct types of identity (ID) codes for recognition within a Cresnet system: Cresnet identity (NET ID) for instances when the touchpanel is wired to the Cresnet system, and RF ID for those instances when the touchpanel communicates with the Cresnet system via the RF gateway.

  • Page 12: Configuring The Touchpanel

    Return button to return to the MAIN MENU. NOTE: For convenience, the current CRESNET ID setting is displayed in the lower left corner. NOTE: All touchpanel settings are automatically saved in non-volatile memory. 8 • 2-Way RF Wireless Touchpanel: STX-1700CXP Crestron STX-1700CXP Operations Guide - DOC. 6144...

  • Page 13: Battery Status

    RF CHANNEL by one, respectively (i.e., 1, 2, 3, …F). Refer to the latest revision of the TPS-RFGWX Operation Guide (Doc. 5847) for more information on setting up the RF CHANNEL for the RF gateway. Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel 2-Way RF Wireless Touchpanel: STX-1700CXP • 9...
  • Page 14 Band In the table, a bullet (•) indicates channels that are used by the STX-1700CXP. The unmarked channels can be used by other devices communicating near the Cresnet system, thus minimizing interference.
  • Page 15 “quick” pushbuttons is pressed. With DISABLED selected, the display stays off when a “quick” pushbutton is pressed (if touchpanel was off, it goes to standby). The default is DISABLED. Select the Return button to return to the SETUP MENU. 2-Way RF Wireless Touchpanel: STX-1700CXP • 11...

  • Page 16: General Use And Safety

    Therefore, apply cleaning solution to the cloth rather than the surface of the touchscreen. Wipe touchscreen clean and avoid leakage of moisture beneath panels. 12 • 2-Way RF Wireless Touchpanel: STX-1700CXP Crestron STX-1700CXP Operations Guide - DOC. 6144...

  • Page 17: Programming Software

    Crestron STX-1700CXP Programming Software Have a comment about You can create a program that allows you to set up the STX-1700CXP to operate a Crestron software? Crestron control system using the Crestron programming tools Crestron Application Builder Direct software related with different levels of programming knowledge.
  • Page 18 Expanded PRO2 System Tree C2Net-Device Slot in Configuration Manager To incorporate an STX-1700CXP into the system, a gateway device is required. The C2Net-Device Slot can accept a gateway such as the TPS-RFGWX. Once a gateway is configured in a C2Net-Device Slot, the slot allows Cresnet communication between the touchpanel and the control system.
  • Page 19 Programming Manager is where programmers “program” a Crestron control system by assigning signals to symbols. The graphic after this paragraph shows the STX- 1700CXP symbol in the SIMPL Windows’ Programming Manager. Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel 2-Way RF Wireless Touchpanel: STX-1700CXP • 15...
  • Page 20 2-Way RF Wireless Touchpanel Detail View of the STX-1700CXP in SIMPL Windows’ Programming Manager Signal Types Signals interconnect the various devices and logic symbols that comprise a SIMPL program. Signals can be one of three types: digital, analog, or serial. For any given signal, the signal type is determined by its driving source.
  • Page 21 STX-1700CXP Input/Output Signals The STX-1700CXP symbol provides up to 4000 digital joins, up to 1024 analog joins, and up to 127 serial output joins and 255 serial input joins. The programmer selects the signal types by clicking on the appropriate button at the top of the Symbol Detail view when programming the panel.

  • Page 22: Quick" Pushbuttons

    Device extenders provide additional logic and functionality to a device. The Poll Manager and Sleep/Wake Manager symbols are device extenders for touchpanels. For the STX-1700CXP in wired mode only, the Poll Manager takes the touchpanel on and off line during polling by the control system. In wireless mode, Sleep/Wake Manager suspends and restores operation of the touchpanel.

  • Page 23: Reserved Join Numbers

    Digital Reserved Join Numbers STX-1700CXP * Assigning 17509 (Out of Range) to a page, sub page or button activates the page, subpage or button when the STX-1700CXP goes out of range. Analog Reserved Join Numbers for STX-1700CXP * Defaults: Operations Guide –...

  • Page 24: Uploading And Upgrading

    The following sections define how one would upload a VT Pro-e project or upgrade the firmware of the STX-1700CXP. However, before attempting to upload or upgrade, it is necessary to establish communications. Communication Settings NOTE: For laptops and other PCs without a built-in RS-232 port, Crestron recommends the use of PCMCIA cards, rather than USB-to-serial adapters.
  • Page 25 Downloads/Software Updates/Cables section of the Crestron website (www.crestron.com). NOTE: The procedure on the next page uses the ST-CBL. Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel 2-Way RF Wireless Touchpanel: STX-1700CXP • 21...
  • Page 26 2-Way RF Wireless Touchpanel Programming Cable Specifications 22 • 2-Way RF Wireless Touchpanel: STX-1700CXP 1. Before making any connections to the touchpanel, verify that the control system is properly connected to the PC (using an RS-232 DB9 straight- through cable, Crestron P/N CNSP-587) and powered on.
  • Page 27 RTS/CTS is selected. Click the OK button to save the settings and close the window. 8. Proceed to “Uploading a VT Pro-e Project” on the next page or “Firmware Upgrade” that begins on page 25 as appropriate. 2-Way RF Wireless Touchpanel: STX-1700CXP • 23...

  • Page 28: Uploading A Vt Pro-E Project

    2. As shown below, select File Transfer | Send Touchpanel (alternatively, depress Alt+T) from the Viewport menu. 3. As shown below, select the NET ID of the STX-1700CXP and then click OK. The “Touchpanel Transfer” window appears (refer to graphic below).

  • Page 29: Firmware Upgrade

    2. As shown below, select File Transfer | Update Touchpanel/Keypad Firmware from the Viewport menu. 3. As shown on the next page, select the NET ID of the STX-1700CXP and then click OK. 2-Way RF Wireless Touchpanel: STX-1700CXP • 25...
  • Page 30 2-Way RF Wireless Touchpanel “Select Network ID” Window Select CSF File 26 • 2-Way RF Wireless Touchpanel: STX-1700CXP 4. As shown below, select the firmware (CSF) file and click Open. The transfer will complete automatically. 5. Disconnect the programming cable and the external power pack from the touchpanel.

  • Page 31: Problem Solving

    Set brightness using Setup menu. Compressed If sufficient memory is already available, graphics take time to decompressed graphics decrease the drawing decompress. time of panel pages. 2-Way RF Wireless Touchpanel: STX-1700CXP • 27 CORRECTIVE ACTION...

  • Page 32: Out Of Range Feature

    The out of range feature is always active. It is up to the programmer to provide an indication on the touchpanel. When the STX-1700CXP is out of range, it displays an out of range indication of your choice (refer to “Reserved Join Numbers” on page 19), and the touchpanel does not respond.

  • Page 33: Further Inquiries

    Further Inquiries If, after reviewing this Operations Guide for the STX-1700CXP, you cannot locate specific information or have questions, please take advantage of Crestron's award winning customer service team in your area. Dial one of the following numbers.

  • Page 34: Appendix A: Engraveable Pushbutton Installation

    Crestron Engraver software. Version 2.0.1.5 or later is available from the Downloads | Software Updates section of the Crestron website (www.crestron.com). Perform the following to install engraveable pushbuttons on the STX-1700CXP. A #1 Phillips screwdriver is required. Refer to the illustration below.

  • Page 35: Appendix B: Optimum Rf Reception Guidelines

    NOTE: Check any 802.11b equipment operating near the Cresnet system to see that it is using only channels that are not being used by the STX-1700CXP touchpanel. If necessary, change the touchpanel’s band setting to avoid interference. Refer to “Identity Codes”...
  • Page 36 2-Way RF Wireless Touchpanel Horizontal Orientation Vertical Orientation Right Angle Orientation 32 • 2-Way RF Wireless Touchpanel: STX-1700CXP Building Top of gateway Building RF GATEWAY - 2 WAY P WR CRESTRON Front of gateway Building Top of gateway Antenna Crestron STX-1700CXP...

  • Page 37: Software License Agreement

    Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel LICENSE TERMS OTHER LIMITATIONS 2-Way RF Wireless Touchpanel: STX-1700CXP • 33...
  • Page 38 MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY OTHER WARRANTIES, NOR AUTHORIZES OTHER PARTY MERCHANTABILITY FOR THIS PRODUCT. THIS WARRANTY STATEMENT SUPERSEDES ALL PREVIOUS WARRANTIES. 34 • 2-Way RF Wireless Touchpanel: STX-1700CXP PROPRIETARY RIGHTS GOVERNING LAW CRESTRON LIMITED WARRANTY OFFER WARRANTIES,...

  • Page 39: Return And Warranty Policies

    All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft Corporation. Operations Guide – DOC. 6144 2-Way RF Wireless Touchpanel 2-Way RF Wireless Touchpanel: STX-1700CXP • 35...
  • Page 40 Crestron Electronics, Inc. Operations Guide - DOC. 6144 15 Volvo Drive Rockleigh, NJ 07647 07.03 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
