Desigo™
Automation stations
PXC4.M16
A6V11937668_en--_l
2023-12-22
For the control of primary plants
●

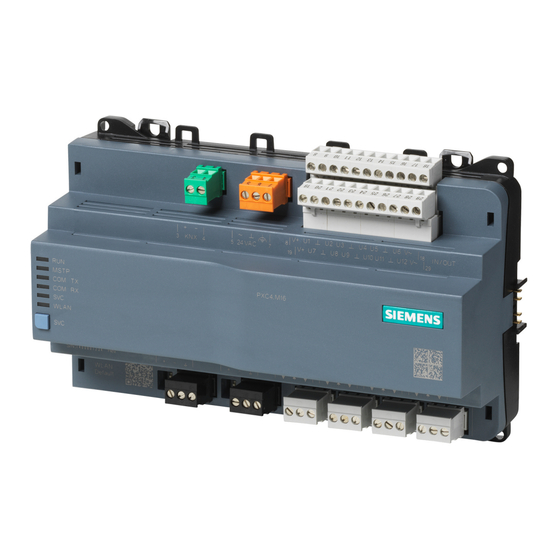

Compact automation station for HVAC and building control systems,
freely programmable using graphical programming interface
●
Communication BACnet MS/TP (BTL certified)
●
Integration of Modbus data points via RTU
●
16 inputs/outputs: 12 universal inputs/outputs, 4 relay outputs
Extendable via I/O modules TXM...
●
KNX PL-Link bus to connect RDG2..KN room thermostats, sensors, and operator
units (including bus power)
●
Integration of M-bus energy meters via RS485 level-converter
●
WLAN interface for engineering and commissioning
●
Operating voltage AC or DC 24 V
●
Mounted on standard rails or on the wall
●
Plug-in screw terminal blocks
Smart Infrastructure
Advertisement
Table of Contents
Related Manuals for Siemens Desigo PXC4.M16
Summary of Contents for Siemens Desigo PXC4.M16
- Page 1 Desigo™ Automation stations PXC4.M16 For the control of primary plants ● Compact automation station for HVAC and building control systems, freely programmable using graphical programming interface ● Communication BACnet MS/TP (BTL certified) ● Integration of Modbus data points via RTU ●...
- Page 2 The following functions are available with KNX PL-Link bus: – Communication with RDG2..KN room thermostats, sensors, and operator units – Plug-and-play connection of Siemens field devices with KNX PL-Link ● Engineering and commissioning with the ABT Site Tool using graphical function charts ●...
-
Page 3: Equipment Combinations
Module series B and higher. In following use cases only series D can be used (available as of 2012): ● I/O bus communication mode "Event" PXC4 can power TXM extensions modules. For further details see PXC4, PXC5 & PXC7 Planning overview A6V13054435 and data sheets. Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22... -
Page 4: System Controller
- 1 x Passive sensor NTC10K (Type II / Beta (0-50 °C) = 3892 K) For details see PXC4, PXC5 & PXC7 Planning overview A6V13054435 and data sheets. System controller Description Type Data sheet System controller to integrate Modbus and MS/TP devices PXC5.E003 A6V11646020 PXC7 A6V12505052 Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22... - Page 5 Holes for wall mounting Service button (identification in network and Date / Series and Serial number WLAN on/off) LEDs for communication and state QR code for default WLAN access (description see Technical data) Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22...
-
Page 6: Led Displays
Wait until the device has fully started – unconfigured (green RUN LED and red SVC LED are flashing) Product documentation Related documents such as the environmental declarations, declarations of conformity, etc., can be downloaded from the following Internet address: www.siemens.com/bt/download Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22... - Page 7 Delete all personal data and dispose of the item(s) at separate collection and recycling facilities in accordance with local and national legislation. For additional details, refer to Siemens information on disposal. Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure...
-
Page 8: Warranty
Warranty The application-specific technical data is guaranteed only in combination with the Siemens products listed in the 'Device combinations' section. If third-party products are used, any guarantee provided by Siemens will be invalidated. Technical data Power supply Operating voltage (24 V~, ⏊, AC 24 V -15 / +20 % (PELV) - Page 9 Then SSID = PXC4.M16_0000550 and password = 1400052738 Determine manually: Use the information from the Date/Series/SN block It will display something like: Date/Series: 20190423A0000550 S/N: 1400052738 SSID = <ASN>_<Running number after the series letter> and password = <S/N> Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22...
- Page 10 For STV Electronic level converters, refer to https://www.stv-electronic.de/. For Relay GmbH level converters, refer to https://www.relay.de/. The use of these products is a recommendation only. Siemens cannot guarantee functionality nor take over any warranty for third-party products. This information is subject to change without notice.
- Page 11 3-wire cable, shielded cable recommended (shield must be connected to building earth in the mounting panel) Cable length Max. 1000 m (3300 ft) Protection Short-circuit proof Protection against faulty wiring with AC 24 V and DC 24 V Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22...
- Page 12 Min. closing/operating time [ms] Of which Max. counter frequency including bounces Max. bounce time [ms] (symmetrical) BI NO / BI NC BI Pulse NO CI Mech (25 Hz) 25 Hz CI El (100 Hz) 100 Hz Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22...
- Page 13 ● When switching inductive loads (e.g. contactors or electric motors) it is strongly recommended to use suitable overvoltage protection devices to avoid heavy electromagnetic disturbances and to ensure the specified contact life. Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22...
-
Page 14: European Union Conformity
Preapproval (OSH-0217) under California Building Code 2022 (CBC 2022) Documents can be downloaded at www.siemens.com/bt/download. Material level When installed within the following Siemens enclosures: PXA-ENC18, PXA-ENC19, or PXA-ENC34. European Union conformity Contact for regulatory topics: (EU) Siemens AG, Berliner Ring 23, DE-76437 Rastatt Siemens Schweiz AG... - Page 15 1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation FCC Caution: Changes or modifications not expressly approved by Siemens Switzerland Ltd. could void user authority to operate the equipment. United States representative https://new.siemens.com/us/en/products/buildingtechnologies/home.html Industry Canada statement This device complies with ISED’s license-exempt RSSs.
-
Page 16: Connection Terminals
Wiring lines for field devices Wiring length max. 300 m (1,000 ft), CU wire or CU strand. Cross-section depending on the signal 30 m (100 ft) applies for signal types AI NTC10K and AI NTC100K or 300 m (984 ft) with shielding Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22... - Page 17 General device with control input DC 0...10 V V V + + V V + + powered by the automation station General device with control input DC 0...10 V Do NOT ground external power (ground loops) Siemens Schweiz AG A6V11937668_en--_l Smart Infrastructure 2023-12-22...
- Page 18 26.5 (1.04") PXC4.M16 with TXM module 198 (7.80") 64 (2.52") 7 (0.28") 269 (10.59") Issued by © Siemens 2020 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies...
